S te p 4:

Connect the RFID connector of the RFID USB cable to the RFID connector on

the motherboard (RFID_USB1).

S te p 5:

Attach the sticker of the RFID module to the bottom of the panel.

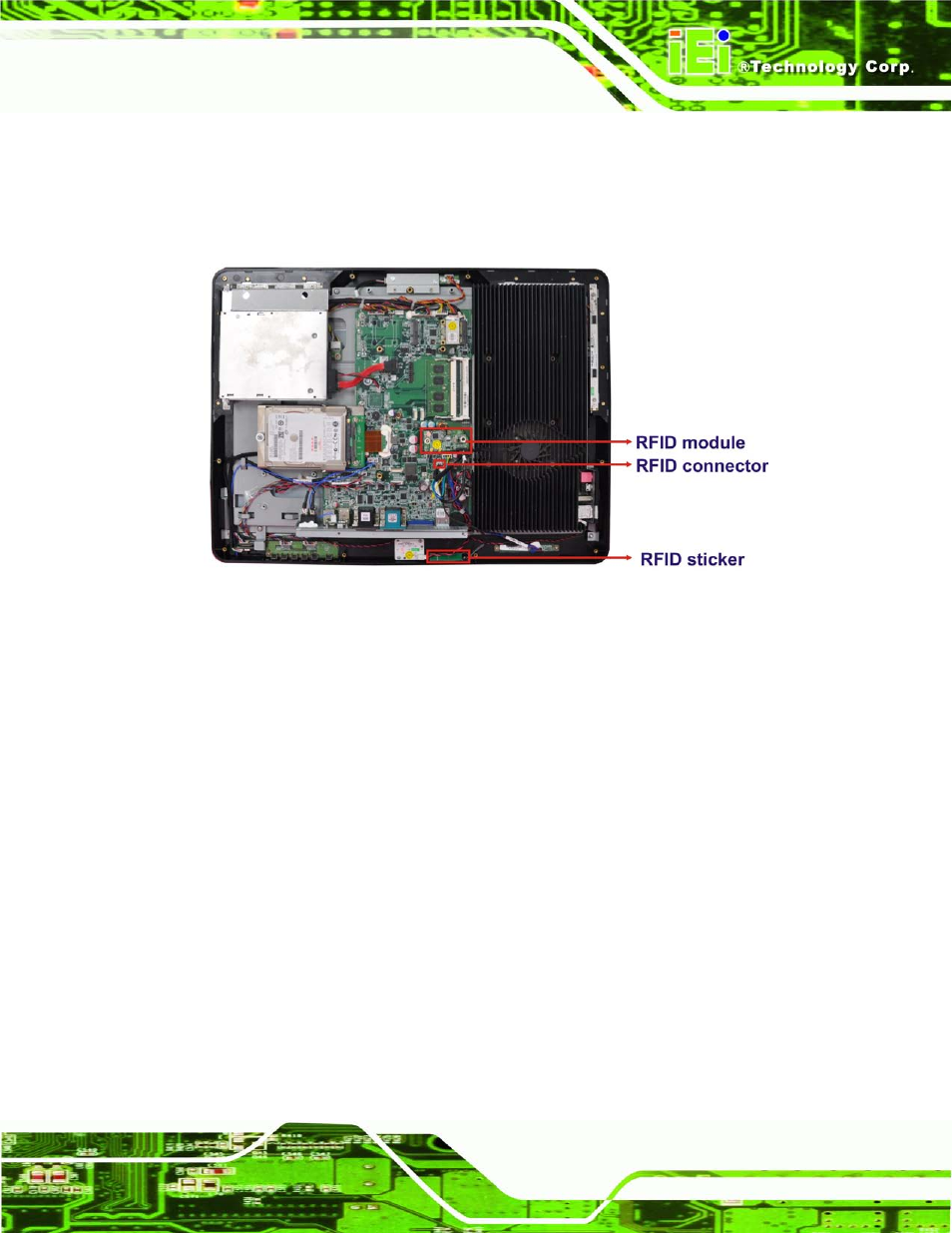

Figure 5-8: Install the RFID module

S te p 6:

Secure the RFID module to the motherboard using two retention screws on

either side.

S te p 7:

Use the RFID reader to read a RFID card.

5.7 DVD-ROM In s ta lla tio n (Op tio n a l)

To install a DVD-ROM, please follow the steps below.

S te p 1:

Remove four screws from the DVD-ROM cover. (Figure 5-9).
