1.2.2 Re a r P a n e l
The rear panel provides access to retention screw holes that support various mounting.
Refer to Figure 1-7.

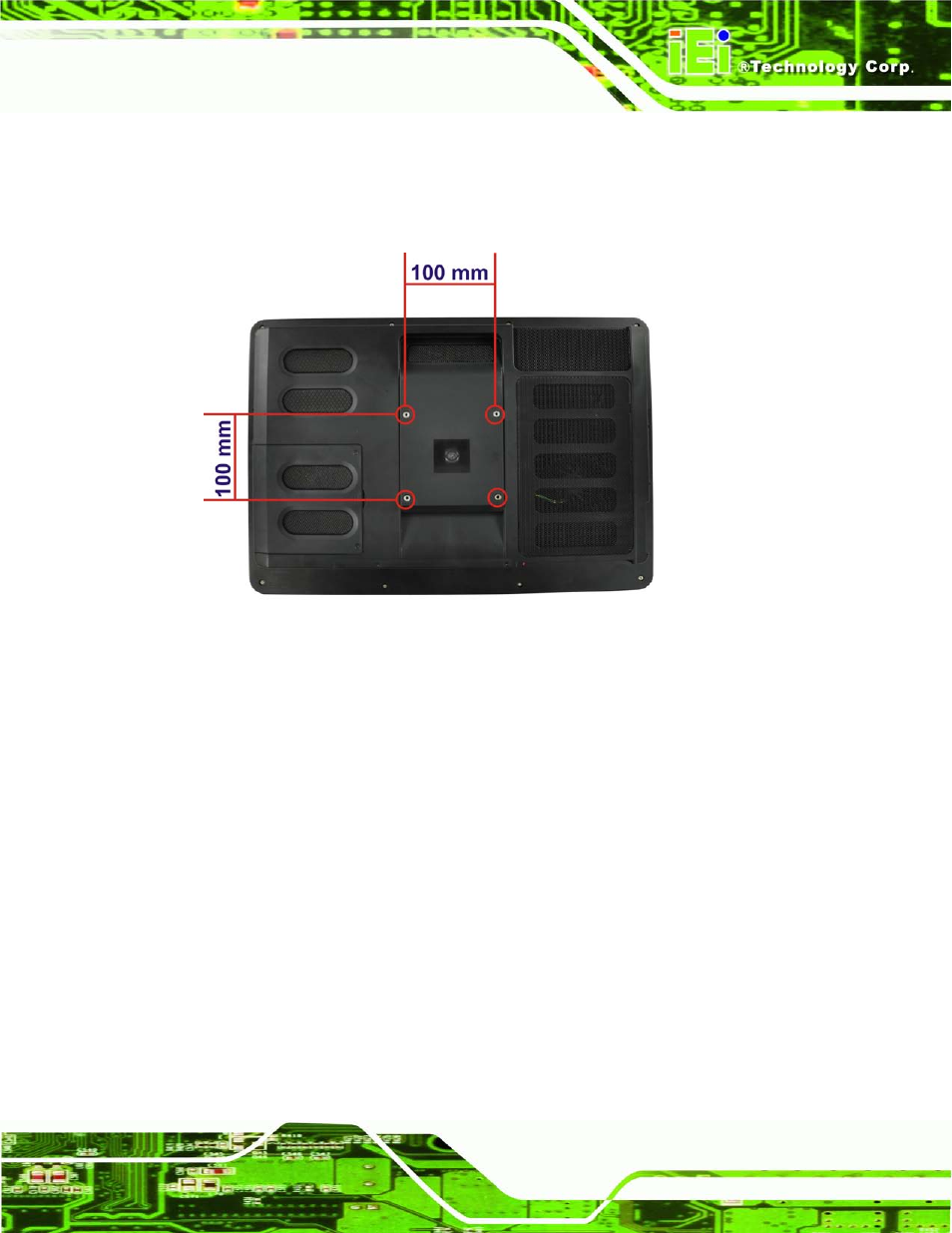

Figure 1-7: AFL2-W19A/AB-H61 Rear View
1.2.3 Bo tto m P a n e l
The bottom panel of the AFL2-W19A/AB-H61 has the following features (Figure 1-8):
 1 x AT/ATX Switch
 1 x Clear CMOS switch
 1 x 9V ~ 36V DC power jack
 6 x Function keys
 1 x HDMI port
 1 x K-type connector
 1 x Power button
 1 x Reset button
 1 x RJ-45 LAN connector
 2 x RS-232 connectors (DB-9)
 1 x RS-422/485 connector (DB-9)
 1 x Temperature sensor
