AFL-08B-N270 User Manual

Page 36

RS-232/485 Select

Description

Short 1-2

RS-232

Default

Short 4-5

RS-232

Default

Short 7-8

RS-232

Default

Short 10-11

RS-232

Default

Short 2-3

RS-422/485

Short 5-6

RS-422/485

Short 8-9

RS-422/485

Short 11-12

RS-422/485

Table 2-8: COM3 RS-232/422/485 Serial Port Select Jumper Settings

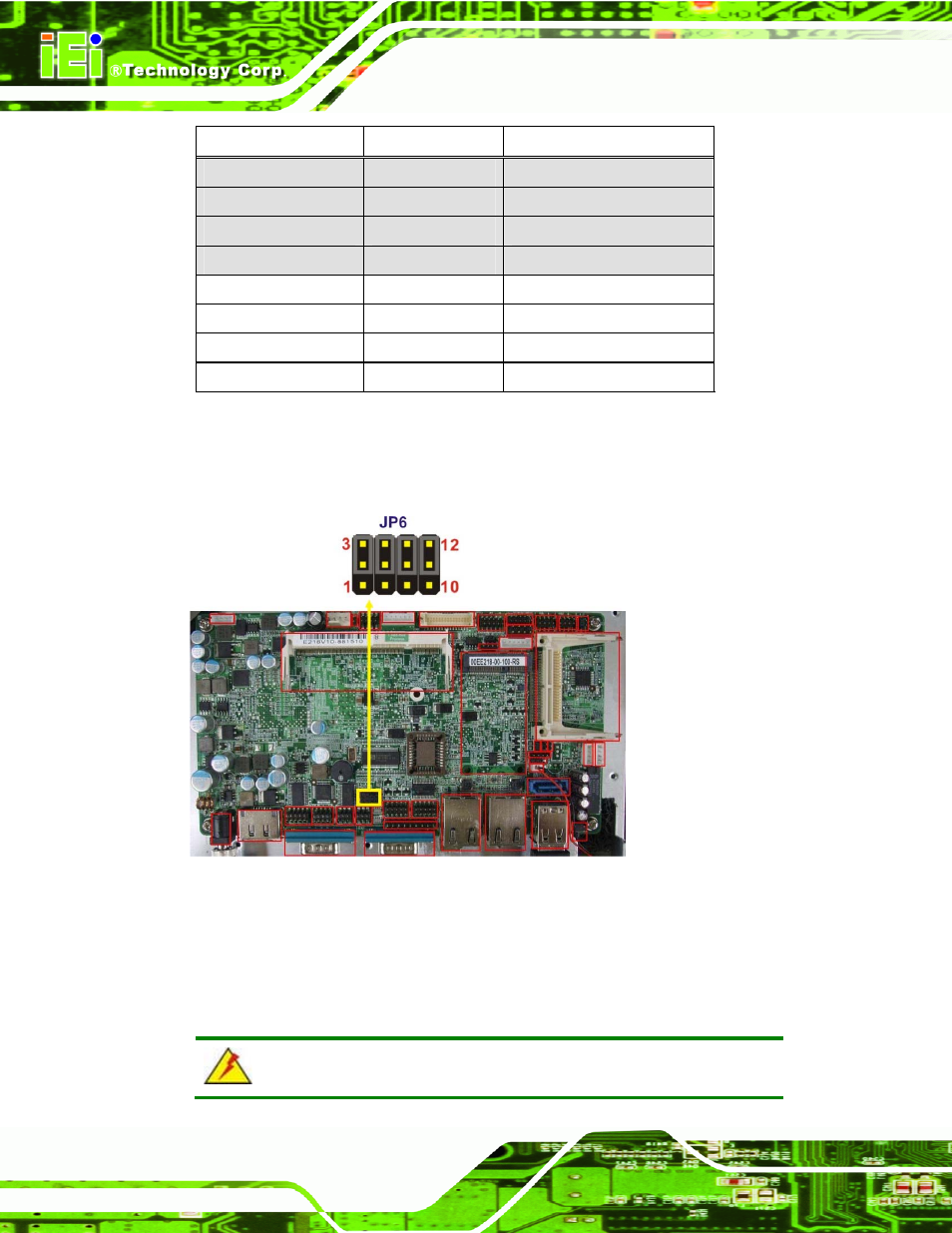

The COM3 RS-232/422/485 Serial Port Select jumper location is shown in Figure 2-9.

Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location

2.6 Mounting the System

WARNING!
