WAFER-CV-D25502/N26002 3.5" Motherboard

Page 31

RS-422 Pinouts

RS-485 Pinouts

Table 3-19: DB-9 RS-422/485 Pinouts

3.2.17 SATA Drive Connectors

CN Label:

SATA1, SATA2

CN Type:

7-pin SATA drive connector

CN Location:

See

7

Figure 3-18

CN Pinouts:

See

7

Table 3-20

The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s

data transfer rate.

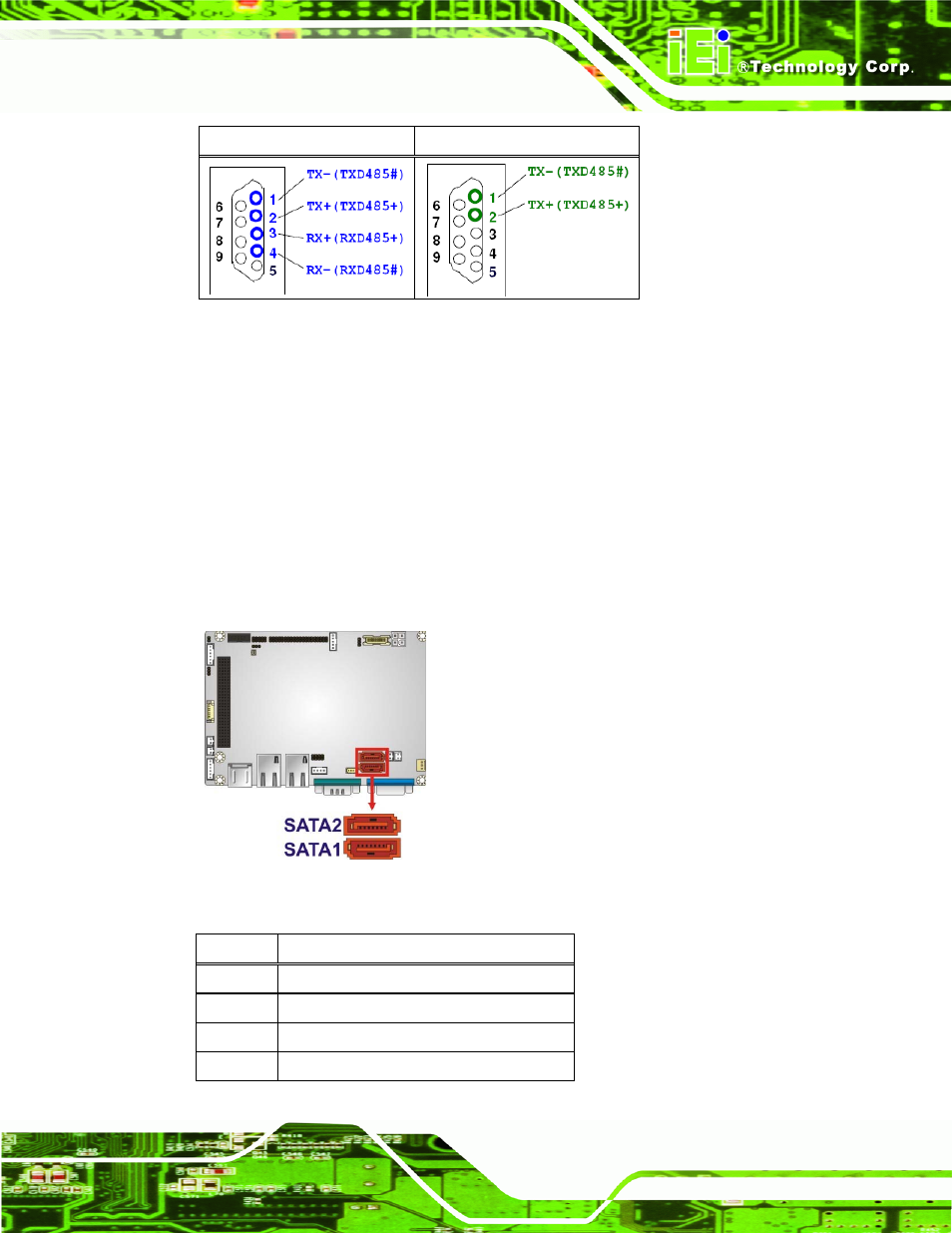

Figure 3-18: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND
