WAFER-CV-D25502/N26002 3.5" Motherboard
Page 2
1.1 Introduction

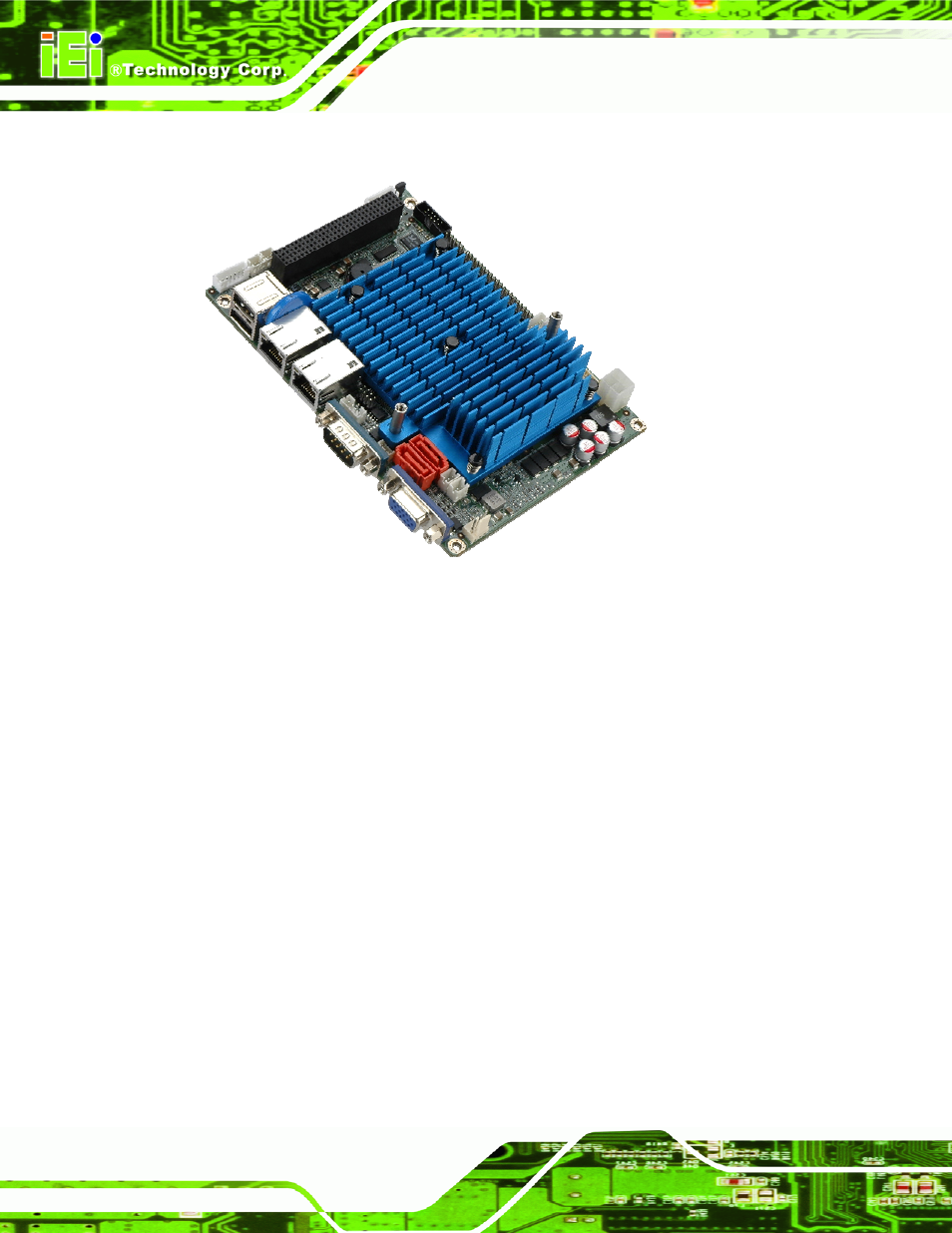

Figure 1-1: WAFER-CV-D25502/N26002
The WAFER-CV-D25502/N26002 3.5” motherboard is an Intel® Atom™ D2550/N2600
processor platform with on-board 2 GB DDR3 memory. The WAFER-CV-D25502/N26002
supports VGA display output and comes with one LVDS connector supporting 24-bit or
18-bit LVDS screen. Maximum four USB 2.0 ports, two SATA 3Gb/s connectors, one PCIe
Mini card slot, six COM ports, and one audio connector provide flexible expansion options.
