NANO-9453 EPIC Motherboard
Page 100

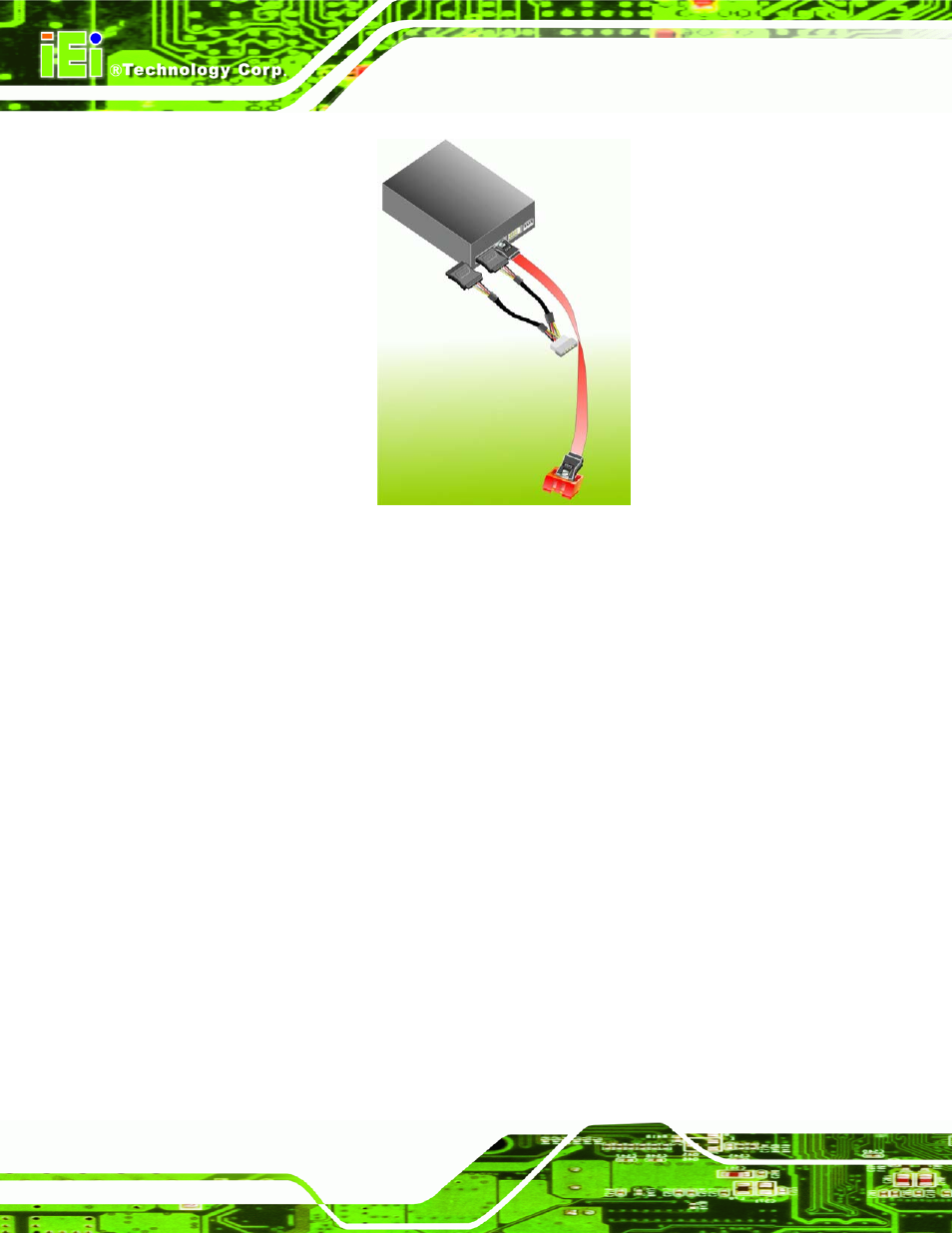

Figure 5-18: SATA Power Drive Connection
5.6.6 Serial Port Connector Cable (Four Ports) Cable Connection
The NANO-9453 is shipped with one four serial port connector cable. The four serial port
connector cable connects four serial port connectors on the cable to the 40-pin serial port
connectors on the NANO-9453. To connect the four serial port connector cable please
follow the steps below.
Step 5: Locate the serial port connector. The location of the 40-pin serial port
connector is shown in Chapter 3.
Step 6: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the NANO-9453 40-pin serial port connector. See Figure 5-19.
Step 7: Insert the cable connectors . Once the cable connector is properly aligned with
the 40-pin serial port connector on the NANO-9453, connect the cable
connector to the onboard connectors. See Figure 5-19.
