ASUS PR-DLS533 motherboard user guide 2-5

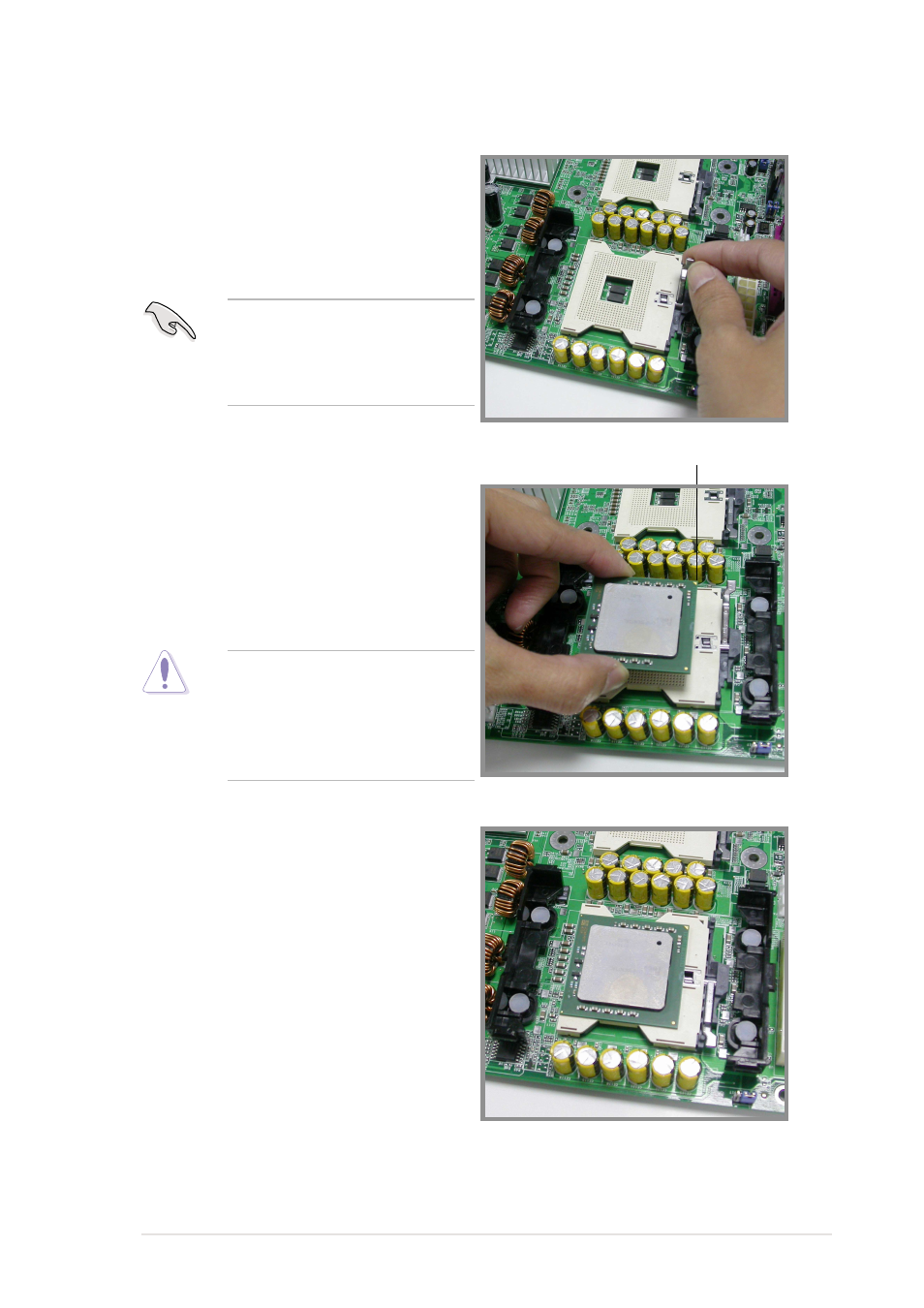

Follow these steps to install a CPU.
1. Locate the 603/604-pin ZIF
sockets on the motherboard.
Unlock the socket by pressing the
lever sideways, then lift it up to at
least 115° angle.
2. Position the CPU above the
socket as shown.
3. Carefully insert the CPU into the
socket until it fits in place.
Make sure that the socket
lever is lifted up to at least
115° angle, otherwise the CPU
does not fit in completely.
The CPU fits only in one
correct orientation. DO NOT
force the CPU into the socket
to prevent bending the pins
and damaging the CPU!
4. When the CPU is in place, press it
firmly on the socket while you
push down the socket lever to
secure the CPU. The lever clicks
on the side tab to indicate that it is
locked.
Marked Corner
