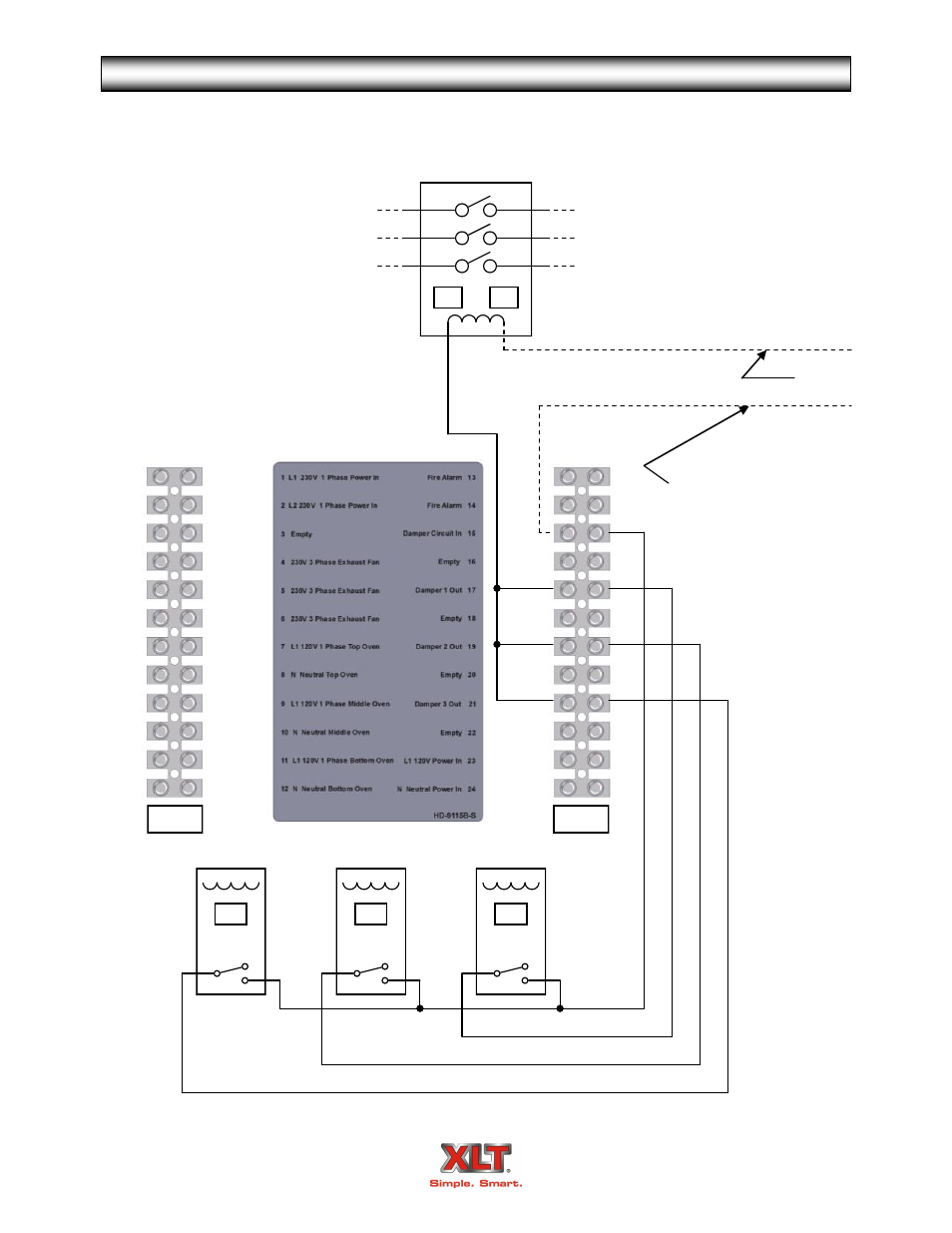

AVI HOOD ELECTRICAL CONNECTIONS
MUA Damper Relays - Single Output - Standard Voltage & Frequency
Supply from Breaker Panel
10 Amperes Maximum
TS 1
Neutral
TS 2
MUA Unit Relay
Customer Supplied
A1 A2
Power Power
Some wiring removed for clarity. See schematic for details.
R3 R2 R1
