Closing Up
Use tie-wraps or screws to properly secure the Remote Car Starter and keep the wiring
away from any moving parts such as the Parking Brakes or Steering Column Shafts.
Mount all switches in good and accessible locations where they do not risk getting kicked or
hit accidentally.
Most comebacks are the result of misunderstandings about how a product works or
performs. Take the time to properly explain all functions and features to the customers
before they leave the premises. Doing this will save time and money.
Always make all your connections before plugging in the Remote Car Starter, and be sure to
test all functions properly before closing up the installation.
Make sure the Warning Label is applied on a visible place under the Hood.
Supplementary Information
Fifth Relay Output (2 nd IGN, ACC or CRANK)
Remote Car Starters of this series are
equipped with an on-board high-current
programmable 5
th Relay that can be used to
power a second Ignition, Accessory or
Crank wire.

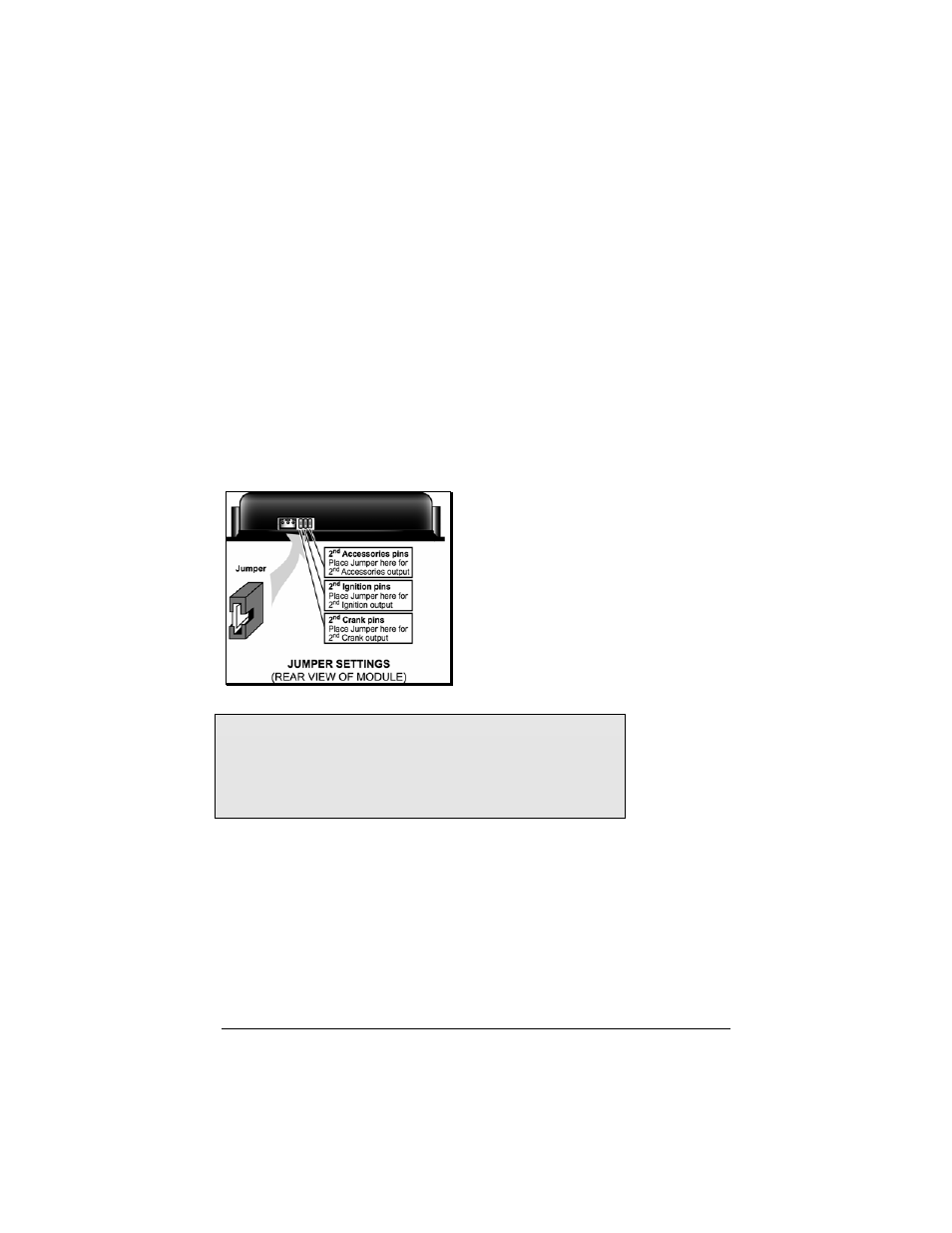

The Unit uses 3 sets of pins; each set
corresponds to a specific function of the
output. In order to activate one of the three
possible functions, you must place the
Jumper (supplied) on one of the three sets
of pins and connect the 14 AWG wire to the
second
IGN. / ACC. / CRANK wire of the
vehicle.
Caution!
Only one set of pins can be used at one time. Using more than one
Jumper may result in serious damage to the vehicle.
The relay output rating on this unit is 25 A at most. Defective OEM solenoid
switches can sometimes draw up to 50 or 60 A, causing the 30 A Fuse to
blow. Always verify your circuit with an appropriate measuring device.
Ignition-controlled Door Locks
This feature will LOCK all the Doors of the vehicle when the Brake Pedal is pressed while the
Ignition Key is in the IGNITION ON (RUN) position. The unit will UNLOCK all Doors when the
Ignition Key is turned back to the OFF position.
If Ignition Lock Only is selected, the system will only LOCK all Doors when the Brake Pedal
is pressed while the Ignition Key is in the IGNITION ON (RUN) position.
If option Ignition Unlock Only is selected, the system will UNLOCK all Doors when the key is
turned to the OFF position (provided that the Ignition key was in the IGNITION ON (RUN) position
and that the Brake Pedal was pressed at least once).
