WARN WG9 WINCH (Long Drum) with remote clutch - Manual (Page 2)

Maximum System Pressure: N/A psi N/A BAR
Maximum Motor Pressure Drop: N/A psi N/A BAR
Maximum Rated Input Flow: N/A GPM N/A LPM
Model
Feet forward
90600
Part Number
Feet down
WARN INDUSTRIES, INC
Industrial Products
Notes:
Performance Data based on 6.0ci motor.
Maximum Input Speed: 585 rpm
Maximum Input Torque: 800 in*lb (90 N*m)
Drum Rotation is Clockwise when viewed from Motor End with
Clockwise shaft input.
Feet down without angle brace
987734.B1 9/2012
12900 S.E. Capps Road,
Clackamas, OR USA 97015
Customer Service (North America): 1.800.543.9276
Customer Service (International): 1.503.722.3008
FAX: 1.503.722.3000 www.warn.com
Recommended Mounting- Always Observe Correct Drum Rotation
Control Valve Type:
Hydraulic System Specifications
Not Supplied
Units are given in inches [millimeters], unless otherwise specified
Pull from top of winch Pull from bottom of winch

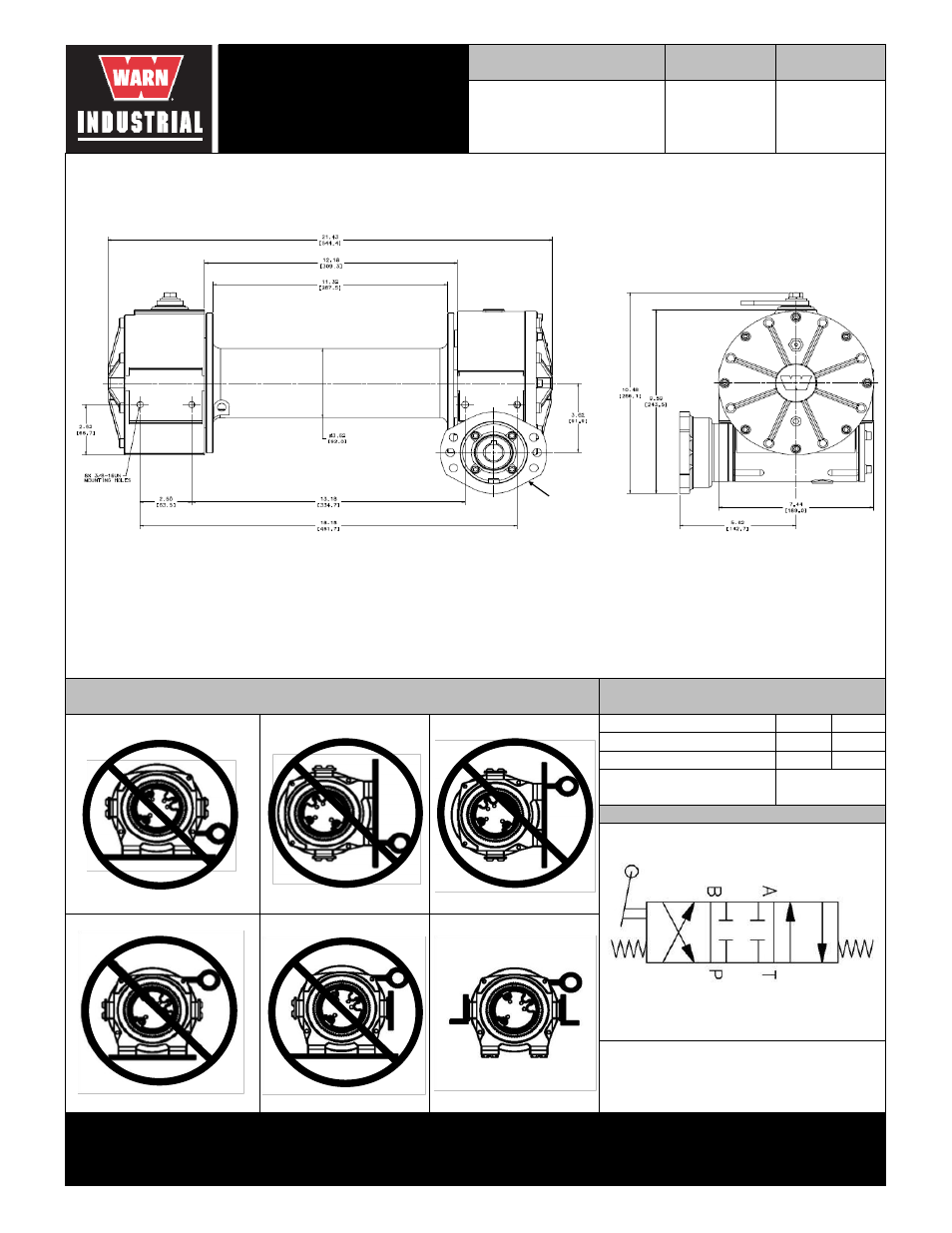

WARN Industrial Winch
outline drawing
WG9-C-00
Long Drum
Remote Clutch
Pull from bottom of winch
Motor Type
schematic
Pull from top of winch
image Control Valve Schematic
Angle Braces Only
3-position, 4-way, closed
center, spring return
(cylinder spool)
Pull from top of winch
Feet forward
Pull from top of winch
Feet down with angle brace
2-bolt SAE "A"
motor flange, 1 inch
keyed shaft
