WARN 18 Series Hydraulic - Manual (Page 2)

Maximum System Pressure: 2400 psi 166 BAR
Maximum Motor Pressure Drop: 1816 psi 125 BAR
Maximum Rated Input Flow: 15 GPM 57 LPM
912514.C1 2/2013
12900 S.E. Capps Road,
Clackamas, OR USA 97015
Customer Service (North America): 1.800.543.9276
Customer Service (International): 1.503.722.3008
FAX: 1.503.722.3000 www.warn.com
WARN INDUSTRIES, INC
Industrial Products
Note: Drum rotates clockwise with Port A pressurized when viewed
from gearbox end.
Feet down without angle brace
Feet forward Feet down
Hydraulic System Specifications
Hydraulic
7.3 ci
(120 cc)
Units are given in inches [millimeters], unless otherwise specified
Pull from top of winch Pull from bottom of winch
WARN Industrial Winch
Motor / Contactor may be rotated in 90 degree increments. Clutch housing may be rotated in 72 degree increments.

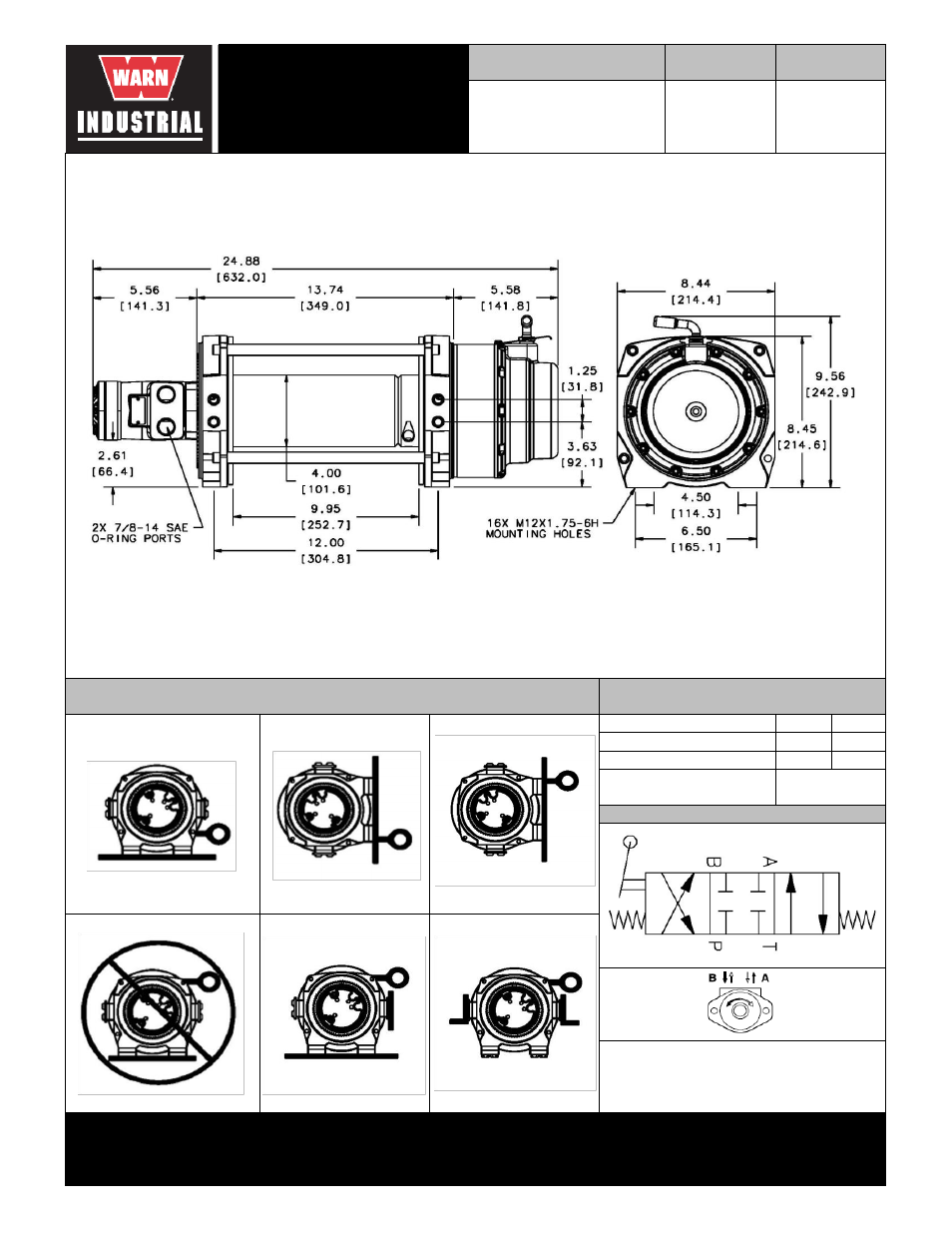

outline drawing
Series 18-A-73
Hydraulic Winch
Manual Clutch
Pull from bottom of winch
Motor Type Model
74125
Part Number
Recommended Mounting- Always Observe Correct Drum Rotation
Pull from top of winch
image Control Valve Schematic
Angle Braces Only
3-position, 4-way, closed
center, spring return
(cylinder spool)
schematic
Control Valve Type:
Pull from top of winch
Feet forward
Pull from top of winch
Feet down with angle brace
