Page 7

Operating Procedures
UPS-S2
4
3.0 CONTROLS AND INDICATORS
3.1 UPS-S2 Controls & Indicators
The UPS-S2 controls and indicators are shown in a panel illustration (see Figure 1). Pointing
leader lines reference each item in the figure with an index number. Each index number is cross-
referenced to a functional description in Table 2.0, which describes the purpose of each item on
the control panel. Although the purpose of these controls and the display may seem obvious,
users should become familiar with them before attempting to use the UPS-S2. Accidental misuse
of the controls will usually cause no serious equipment damage. First-time users should review
and become familiar with the Safety Summary located in the front section of this manual.

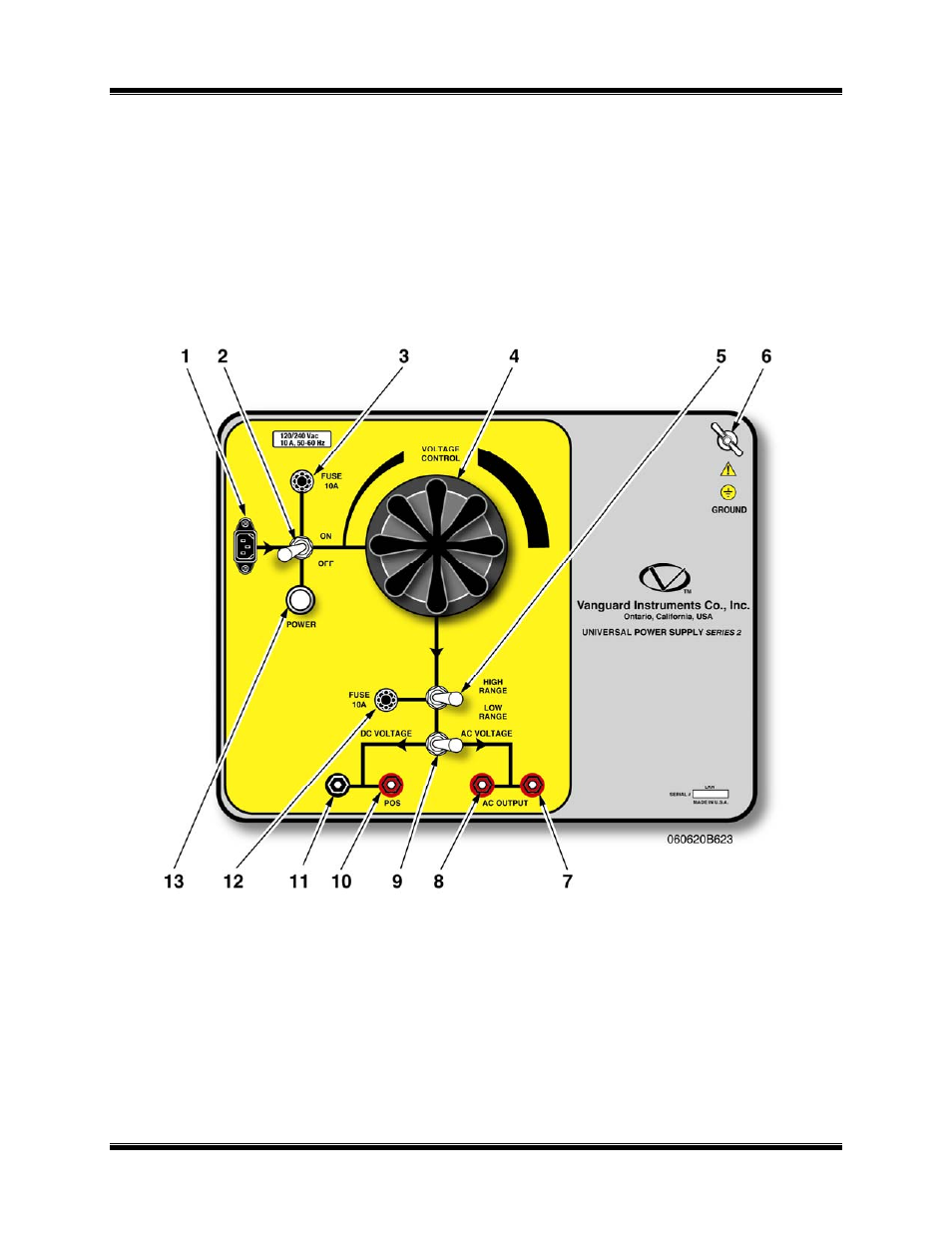

Figure 1 UPS-S2
™ Control Panel (Controls and Indicators)
