Page 8: Direct output
7
4.3 Rack Mounting
The most secure mounting is on a universal rack shelf available from various rack manufactures or your music
dealer. The MP8 fits into one standard 19" rack unit of space.
Please allow at least an additional 4" depth for the connectors on the rear panel. Be sure that there is enough
air space around the unit for sufficient ventilation and please do not place the MP8 on high temperature
devices such as power amplifiers etc. to avoid overheating.
Send
Return
Tip
Ring
Sleeve
1/4" TRS insert
Insert Leads
21
3
1
2
3
TIP RING SLEEVE
TIP RING SLEEVE
SLEEVE TIP
SLEEVE RING TIP
TIP RING SLEEVE
Centre (Send)
Screen
Centre (Return)
Screen
Tip
Ring
Sleeve
Tip (Send)
Sleeve
Sleeve
Tip
Ring
Sleeve
1
2 (Send)
3
1
2 (Return)
3
Tip
Ring
Sleeve
Tip (Return)

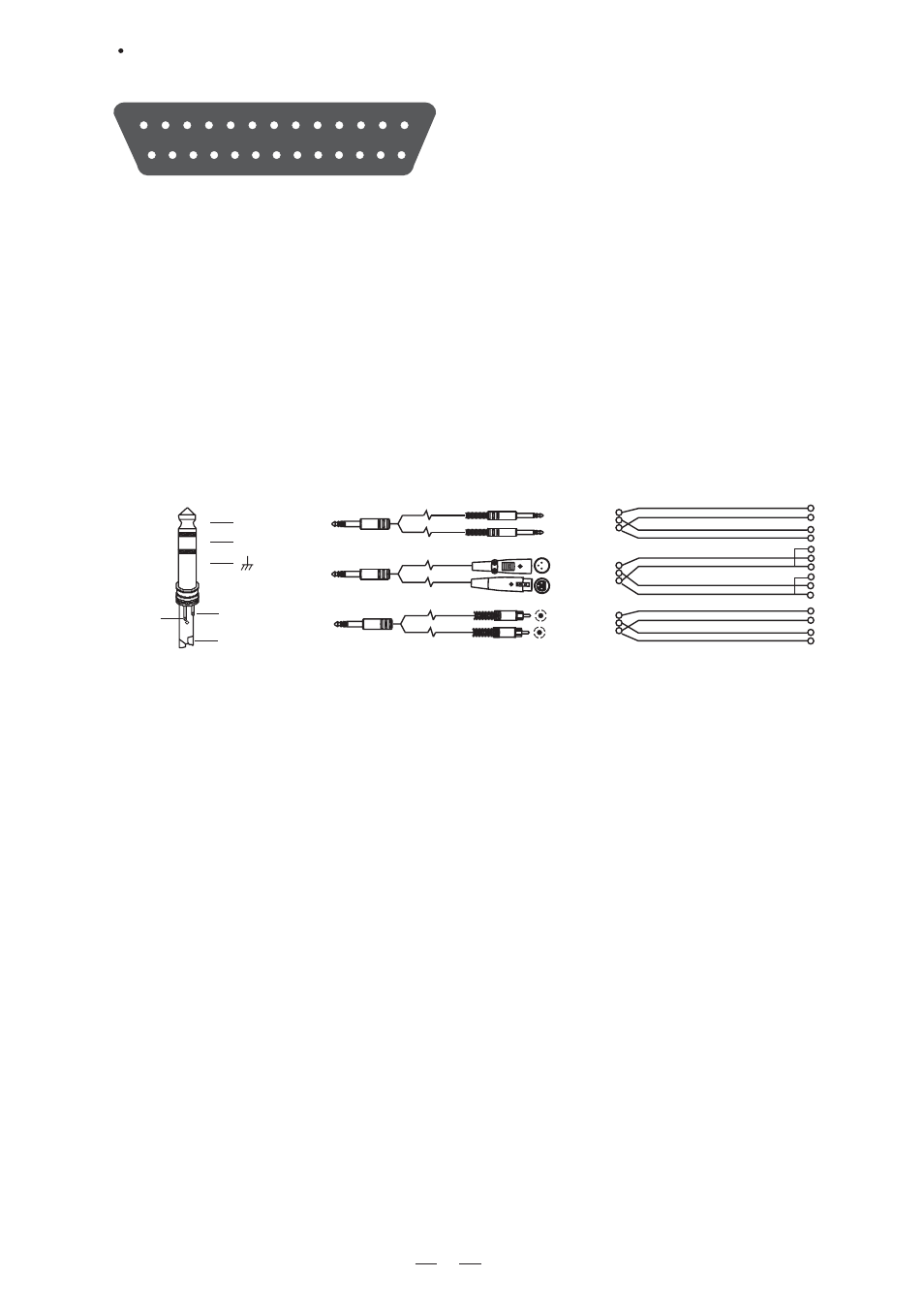

-Insert Points Connection
If you are connecting to a mixing console's main inserts, you may have a single TRS jack for SEND & RETURN,
in this case, use an insert "Y" cable that configured like the examples below.
14
15
16
17
18
19
20
21
22
23
24
26
25
1
2
3
4
5
6
7
8
9
10
11
12
13
Pin14 = CH1-H
Pin1 = CH1-C
Pin2 = GND
Pin15 = CH2-H
Pin3 = CH2-C
Pin16 = GND
Pin17 = CH3-H
Pin4 = CH3-C
Pin5= GND
Pin18 = CH4-H
Pin6 = CH4-C
Pin19 = GND
Pin20 = CH5-H
Pin7 = CH5-C
Pin8 = GND
Pin21 = CH6-H
Pin9 = CH6-C
Pin22 = GND
Pin11 = GND
Pin24 = CH8-H
Pin12 = CH8-C
Pin13 = GND
Pin25 = GND
Pin23 = CH7-H
Pin10 = CH7-C
Direct output
For Direct Output Multi-pin Connector Wiring
