Input Level LED Indicator
These three LEDs will indicate the level of the input signal. When red LED flashes, it warns you that the level
of the input signal is too high and may cause distortion, please attenuate the level of the input signal.
.
Power LED Indicator
When the unit is powered on, the LED lights up.
Power Switch
It switches on/off MP8 main power.
6
8

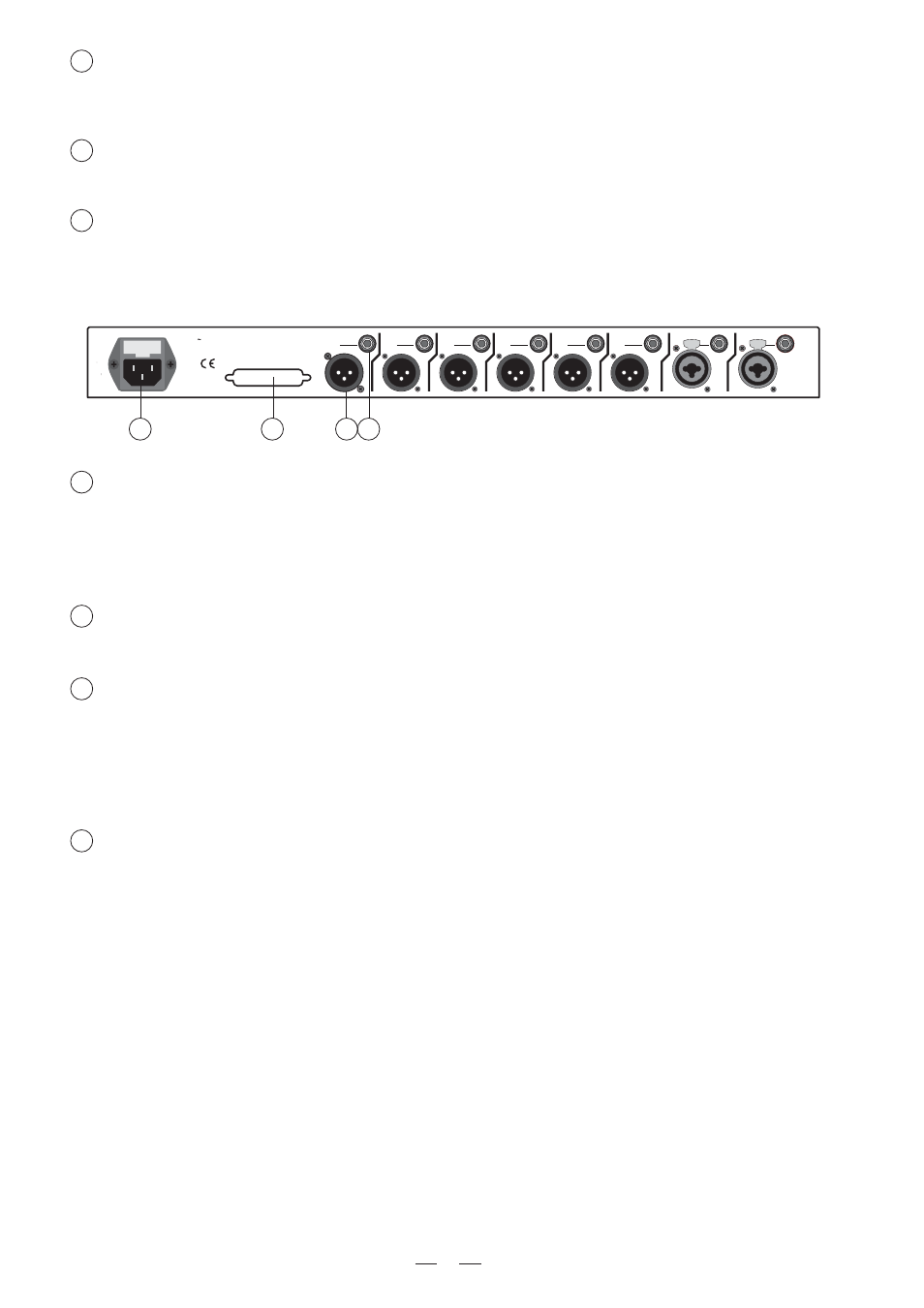

3.2 The Rear Panel
Useonly
with
a250V
fuse
CH.1
MIC.
IN
Apparaten
skall
anslutas
till
jordat
uttag
nar
den
ansluts
till
e
tt
natverk
CH.2
MIC.
IN
CH.3
MIC.
IN
CH.4
MIC.
IN
CH.5
MIC.
IN
CH.6
MIC.
IN
CH.7
MIC.
IN
CH.8
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
MIC.
IN
PUSH
PUSH
LINE OUTPUT 1-8
9
10
8
9
10 11
11
AC Inlet
Standard IEC receptacle, connect your MP8 to mains with the supplied power cord. Before powering up your
MP8 for the first time, make certain the stated power requirement of the instrument matches the voltage supplied
in the country. Failure to do so could result in injury to the user and the probability of irreparable damage to the
unit is highly likely.
LINE OUTPUT 1-8
this direct output multi-pin connect is used to output the analog signal of 1-8 channels.
MIC Input
Each channel comes with input socket. There are balanced XLR sockets (from channel 3 to channel 8) and
combo sockets (channel 1 and channel 2). It provides ultra low noise and wide gain control allowing the MP8
user to boost desirable signal without increasing unwanted background noise. Phantom power is available to
each channel input of the MP8. When the phantom power switch is engaged, the +48v power is supplied for
condenser microphone.
Insert
The MP8 provides a stereo1/4" TRS socket for each channel. It can sent the analog signal out into signal path
via a TRS connector.
AC INPUT
210-240V
50Hz
Rated Power
Consumption 20W
FUSE:
250V: T315mAL
REPLACE FUSE
WITH CORRECT
TYPE ONLY
