16

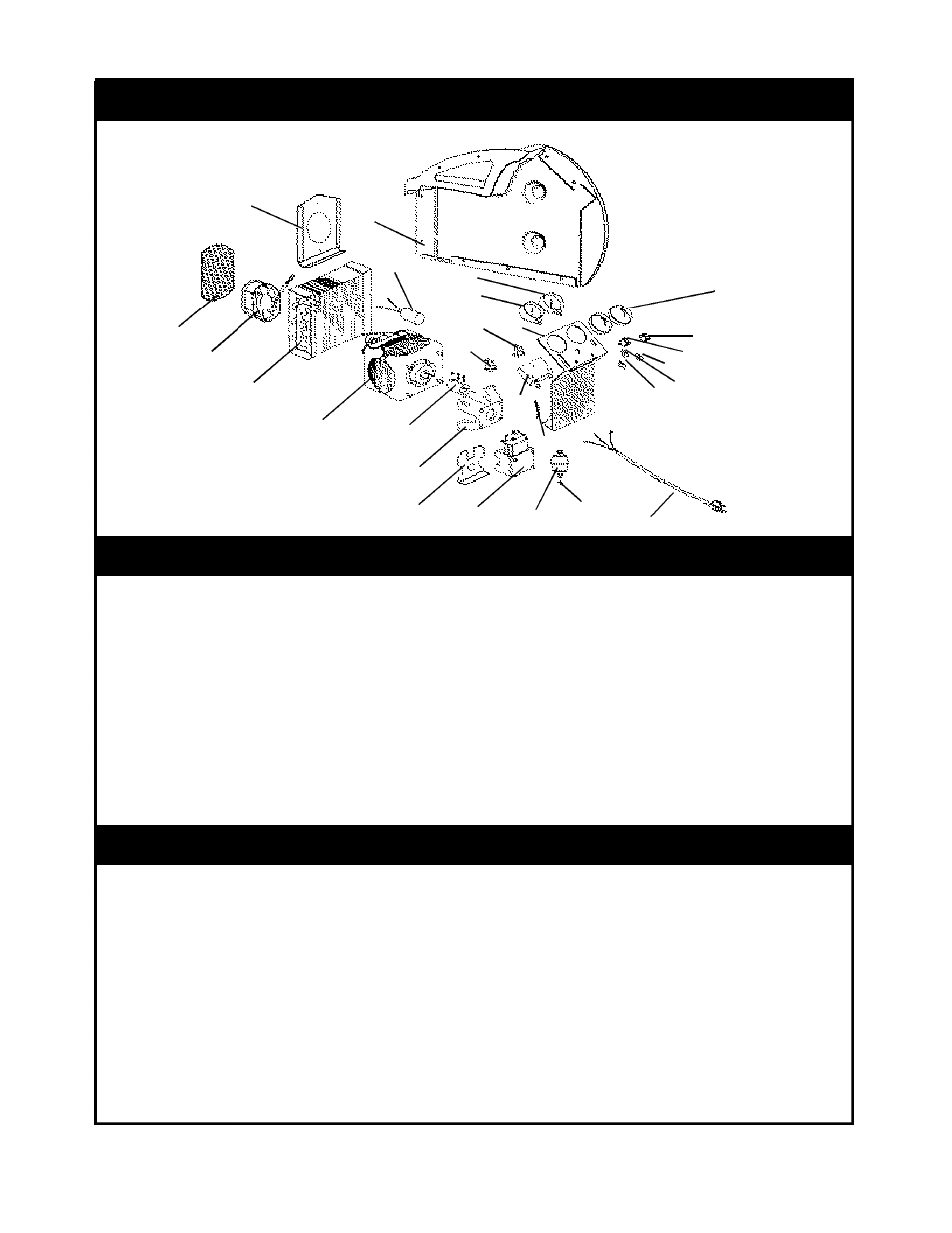

RG5410A DIAGRAM
REPLACEMENT KITS & ACCESSORIES
PART# DESCRIPTION
KT3302 PISTON SEAL REPLACEMENT (middle section of compressor)
KT3303 VALVE REPLACEMENT KIT (top section of compressor)
KT3307 COMPRESSOR REPAIR KIT (all three sections of compressor)
KT3308 SHAFT REPLACEMENT KIT (bottom section of compressor)
KT5001 80% CAPACITY TANK SENSING KIT
RGT30 30 LB RECOVERY TANK (350 psi working pressure) with capacity sensor
RGT30NS SAME AS RGT30, WITHOUT SENSOR
RGT50 50 LB RECOVERY TANK (350 psi working pressure) with capacity sensor
RGT50NS SAME AS RGT50, WITHOUT SENSOR
RGT50HP 50 LB RECOVERY TANK, HIGH PRESSURE(400 psi working pressure) with capacity sensor
ADS-100 REFRIGERANT SCALE, 200LB CAPACITY, WITH REMOVABLE PLATFORM
ITEM DESCRIPTION PA RT #
1 PLASTIC CASE 100134 (L&R)
2 FAN GRILL 100505
3
AXIAL FAN EL1817
4 CONDENSER CD1201
5 MOTOR
EL1821
6 COUPLER CP1315
7 BELL HOUSING CP1001
8 COMPRESSOR CP1320
9 PRESSURE SW EL2800
ITEM DESCRIPTION PA RT #
10 INPUT GAUGE GA1500
11 OUTPUT GAUGE GA0800
12 GAUGE LENS GA1000
13 ON/OFF SWITCH EL1310
14 START SWITCH EL1309
15 BLUE KNOB
100123
16 RED KNOB 100124
17 BLACK KNOB 100122
1 8 FRONT PANEL 100137
IITEM DESCRIPTION PA RT#
19 FILTER 100343
20 FLARE CAP NB6501
21 CORD SET 100162
22 HIGH PRESSURE SW EL2802
23 BACK PLATE 100318
24 CAPACITOR EL1412
25 COMPRESSOR BRACKET 100351
26 MANIFOLD
700133
27 HOSE 4” 100345
2
3
26
4
5
6
7
25 8
11
12
13
14
15
16
17
18
19
20
21
22
10
9
1
23
24
RG5410A PARTS LIST
27
