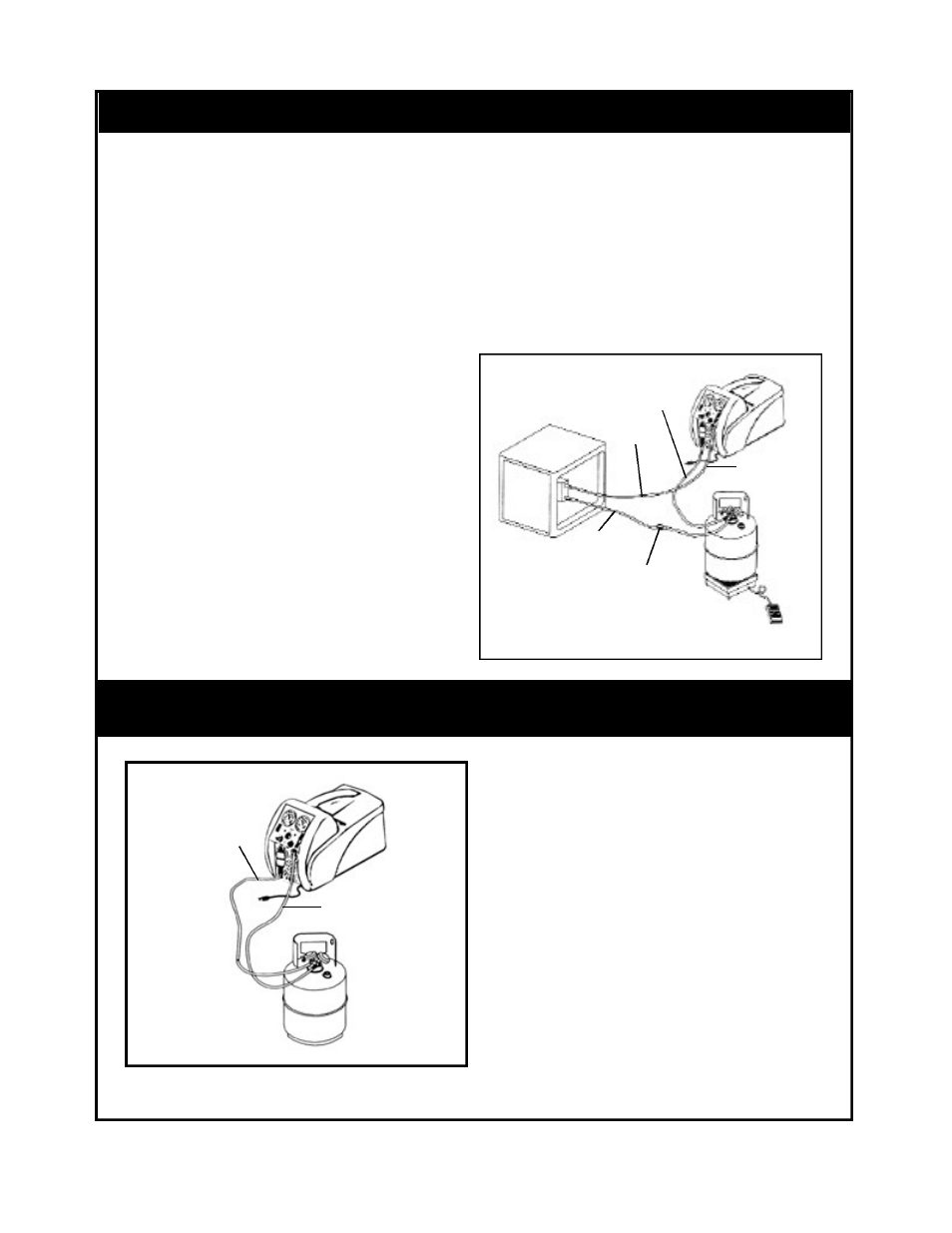

DIAGRAM FOR “PUSH/PULL” METHOD
SET-UP DIAGRAM FOR TANK
PRE OR SUB COOLING PROCEDURE
Push/pull method only works with large systems where the liquid is readily accessible. Do not use this
method on systems that contain less than 15 lbs. as it may not work.
The sight glass is used to provide a method of determining the moisture content and quality of a system’s
refrigerant.
ƽ
CAUTION: When using the “Push/Pull” method, once the siphon is started, it can continue and overfill
the storage tank even if the tank is equipped with a float level sensor. The siphon can continue even when
the machine is turned off. You must manually close the valves on the tank and the unit to prevent overfill-
ing of the recovery tank.
See page 10 of this manual for more information.
1. To start you must have a minimum of
5 lbs.of liquid refrigerant in the tank
2. Close INPUT and OUTPUT valves
3. Put RECOVER/PURGE knob on RECOVER
4. Start machine
5. Open INPUT valve to liquid
6. Throttle the output valve so that the output pres-
sure is 100 psi greater than the input pressure,
but never more than 300psi
7. Run until tank is cold
13
VAPOR
INPUT
OUTPUT
LIQUID
LIQUID
SYSTEM BEING
S E RV I C E D
OPTIONAL MOISTURE
SIGHT GLASS
ƽ
A scale must be used to avoid over filling
the storage tank.
INPUT
OUTPUT
VAPOR
LIQUID
1. Close INPUT and OUTPUT valves
2. Put RECOVER/PURGE knob on RECOVER
3. Start machine
4. Open INPUT and OUPUT valves
5. When the scale stops rising close all ports
CAUTION: Do not overfill tank
6. Switch off the machine
