Altinex DA1916SX - Manual (Page 5)

SWITCHERS
4
Input Sync Signal
Composite Sync
TTL(+/-),
analog 0.3V-1.0V
Sync on Green -0.3V
Impedance 10 k Ohms
Output Video Signals
Analog Signal
1.5V p-p max
Fall/Rise Time (ns) 1.8
Impedance 75 Ohms
Output Sync Signal
Composite Sync
TTL(+/-),
analog 0.3V-1.0V
Sync on Green -0.3V
Impedance 22 Ohms
Frequency Compatibility
Horizontal
15-200 kHz
Vertical 20-190 Hz
Typical Video Bandwidth 350 MHz @ -3dB
Cross-talk -40dB @10 MHz
Coupling DC
Power
External Power Adapter
9V 500mA (included)
Power Consumption 3 watts max.
Table 3. DA1916SX Electrical

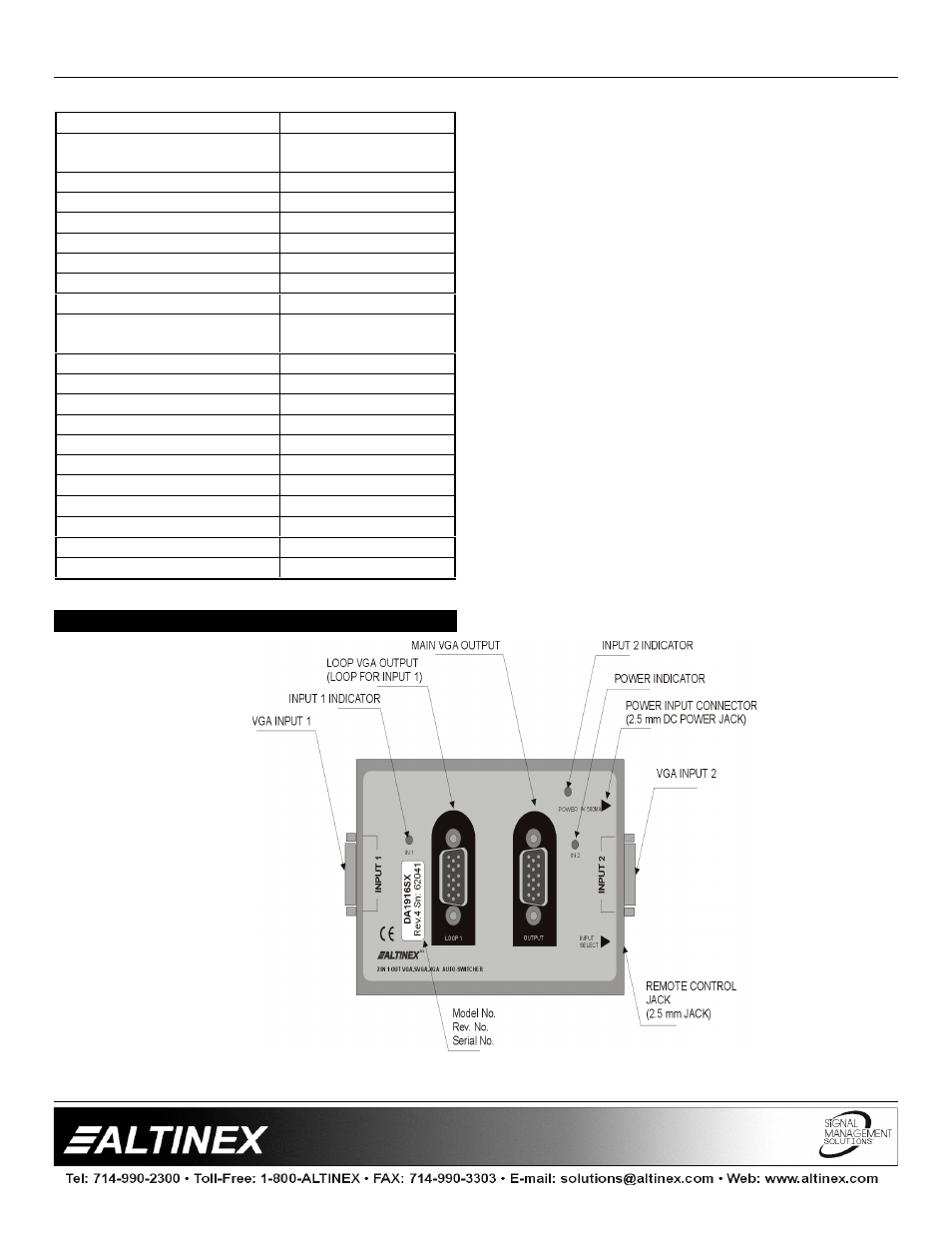

DESCRIPTION OF DA1916SX 4
