Page 6
6
CAUTION: The rounded metal disc can only be glued once, so be sure it is at the
right place!

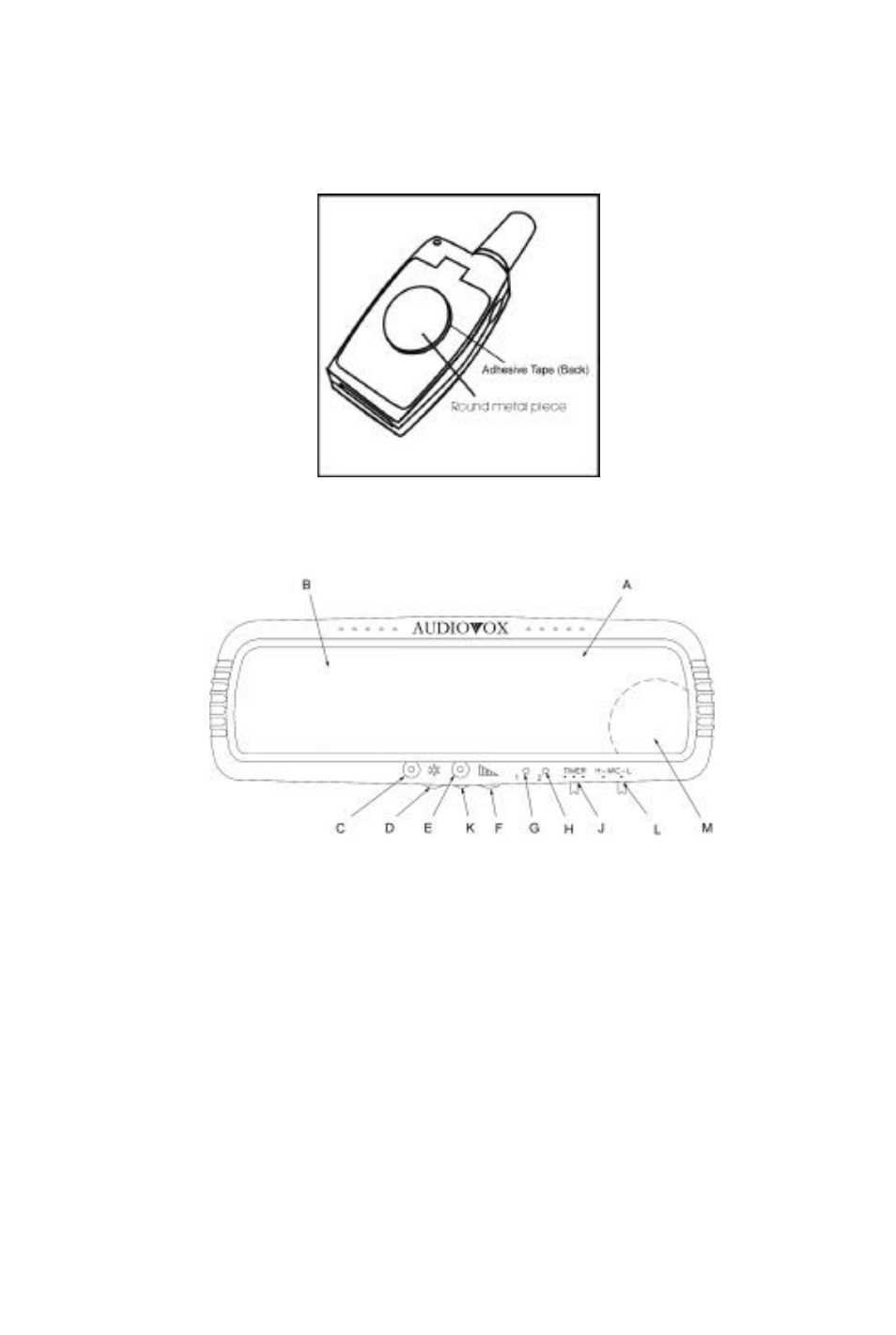

Figure 4
3. Controls and Indicators
Figure 5
Figure 5 illustrates the controls and indicators of the LCMR4N rear view mirror:
A: Rearview mirror
H: Switch 2 (see below)
B: 4" LCD panel J: 3-position switch for Navigation Voice
C: Hands free Microphone command display timer on front of
D: Brightness Control
mirror (30 sec., 150 sec., 300 sec.)
E: Power indicator (Red when power K: Remote IR Sensor
Is on)
L: 2-position switch for handsfree microphone
F: Volume Control Knob Sensitivity High/Low Select
G: Switch 1 (see below) M: Speakers
