5

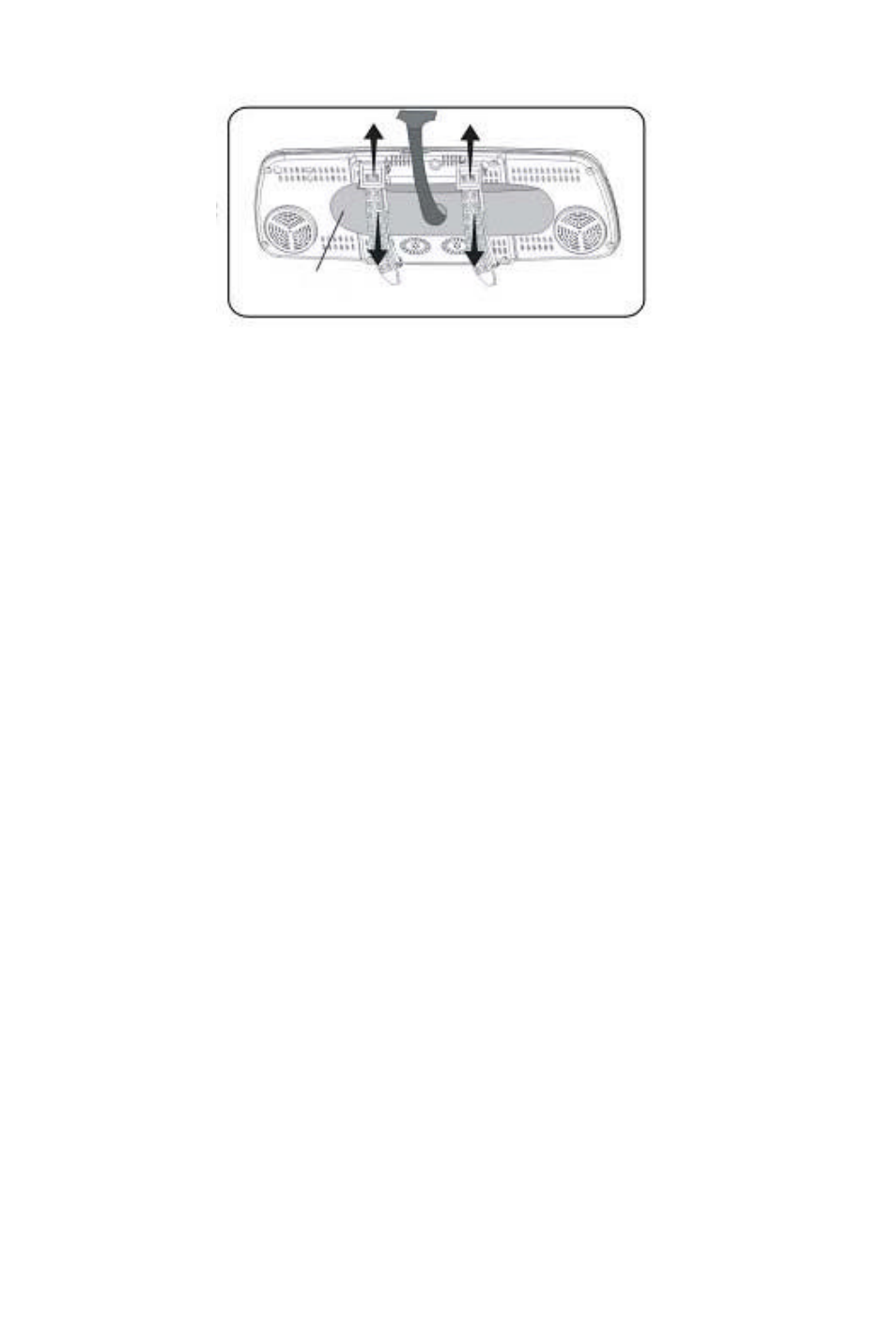

Figure 3
e) Cut off excess part of 7-inch belts.
2)
Plug the Mitsumi connector from the Audiovox navigation monitor cable (part
#112C3080) into the receptacle at the top backside of the mirror/monitor screen.
Route the monitor cable behind the headliner of the windshield then down the A
pillar behind the plastic shroud to the under dash area and continue to the
Navigation computer.
Navigation Voice command display timer:
There is a three-position switch located on the front right of the mirror/monitor. The
three settings are 30 seconds, 150 seconds and 300 seconds. The vehicle operator
can select to engage the navigation display timer by pressing Sw 1 while the vehicle
is going forward. The Navigation Display will appear for the preset time whenever
the navigation system issues an audible voice command
2. Install the mobile phone magnetic mount
1)
Select a suitable and convenient location for the mobile phone. Clean the selected
location
2) Tear off the adhesive tape on the back of the magnetic mount. Press mount tightly
on to the selected surface for 30 seconds till the two surfaces are tightly glued.
NOTE: Make sure the two surfaces are glued tightly!
3) Clean a place on the back of the cell phone, keeping it dry. Remove the adhesive
tape of the rounded metal disc and stick it to the selected place on the back of the
cell phone.
NOTE: Do not attempt to move the phone within 24 hours after gluing.
