Audiovox LCMR4N - Manual (Page 4)

4
1. Installation Instructions
1)
Mount the mirror/monitor onto the existing rearview mirror.
a) Stick two adhesive foam backings on to the back of mirror in the two small
rectangle indents.

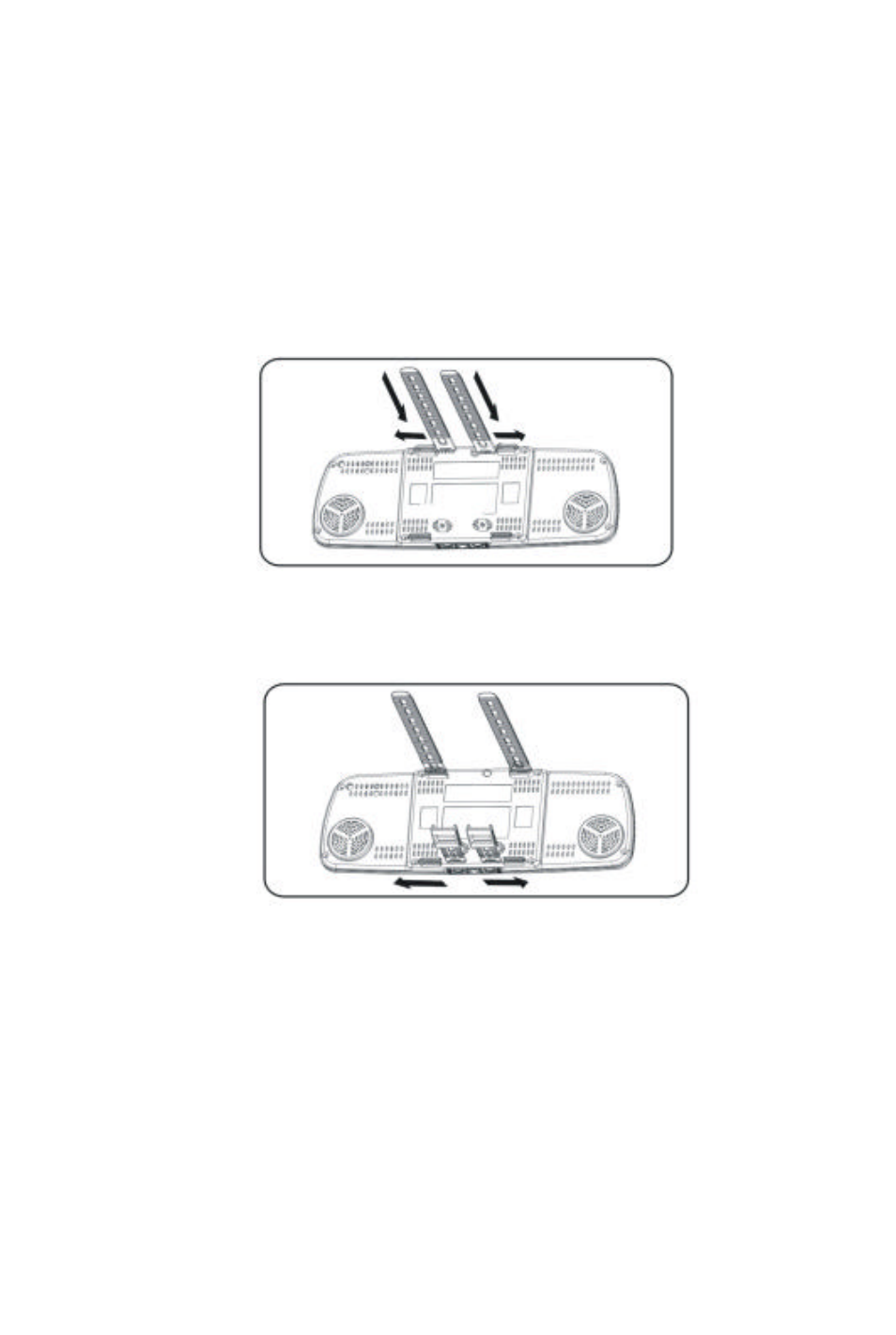

b) Take the two seven inch belts and slide them into the slots on the top rear of
the mirror with grooved side of the belt facing down.
Figure 1
c) Take the buckles and slide them into the lower slots on the rear of the mirror
with the buckle facing toward the seven-inch belt.
Figure 2
NOTE: The large opened rectangle on the buckle will face away from the
seven-inch strap.
d) Mount the new rearview mirror/monitor onto the existing one. Add the
rearview mirror onto the existing mirror from one side with one fixed belt.
Then fasten the other belt on the other side of the mirror. To prevent the
LCMR4N from falling off, tighten the belts until secure to the factory rearview
mirror on both sides.
