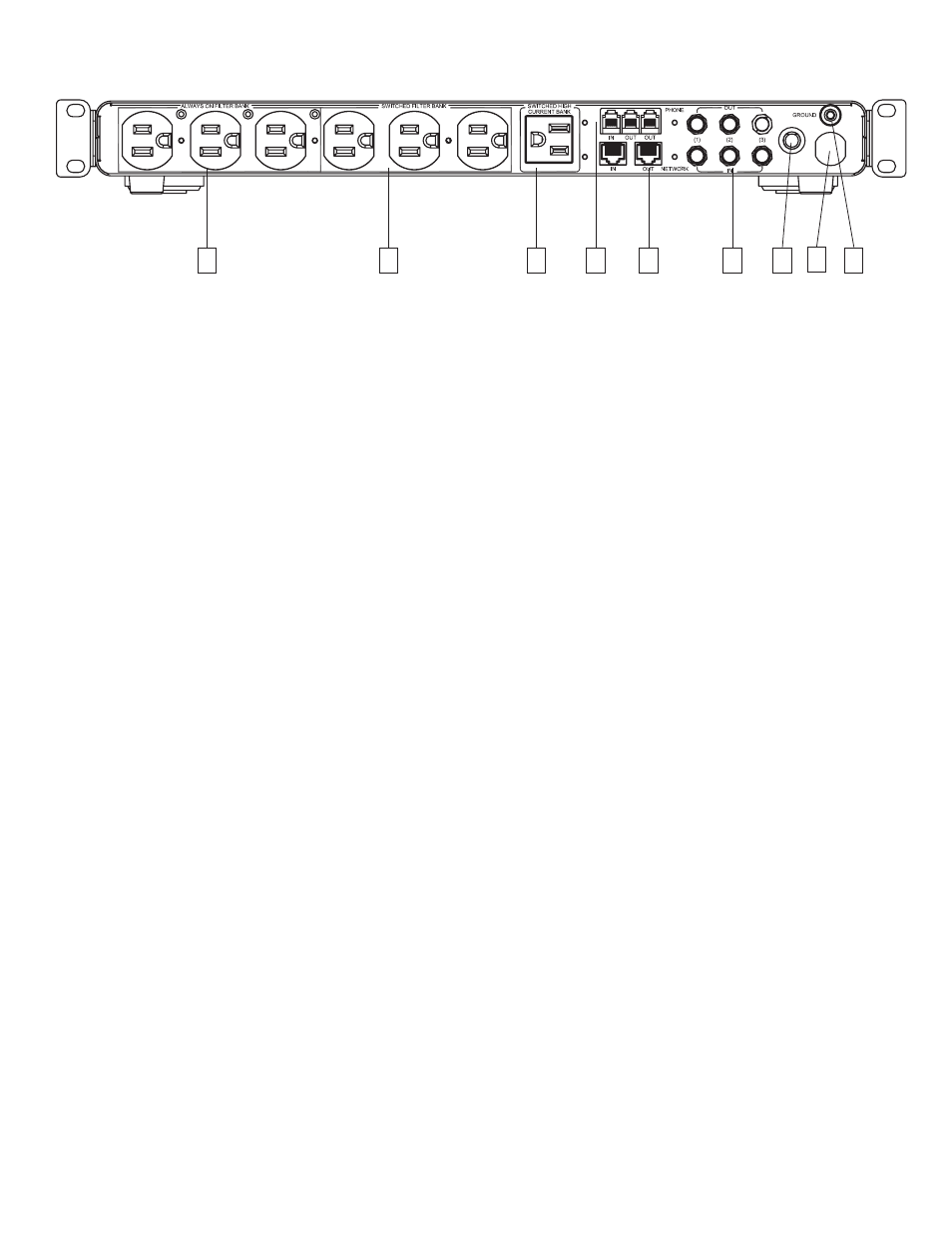

INSTALLATION

1. Determine if the unit will be placed on a console or mounted onto a rack. Place the unit on a shelf as a console

component or use the rackmount hardware to mount it in any standard size rack. To mount the unit in a rack,

first remove the console feet by unscrewing them. Install four user-supplied rackmount screws through the unit’s

rackmount hardware holes and into the rack rails.

2. Plug the power cord into a standard, 3-wire grounded 120V AC, 60 Hz. outlet. Verify power is coming to the unit

by visually checking for an illuminated POWER LED on the front panel. Verify that the unit is properly grounded by

visually checking for an illuminated GROUND LED on the front panel. If this light DOES NOT illuminate and power

is present, consult a qualified electrician to examine your outlet’s wiring.

3. Press the master power switch and visual check for an illuminated SWITCH LED. This indicates that power is supplied

at the switched outlets of the unit.

4. Check that the surge feature is working properly by visually checking for an illuminated SURGE LED

on the front panel.

5. Connect equipment into the AC outlets. DO NOT plug in extension cords and DO NOT OVERLOAD. This unit can

accommodate a total equipment load of up to 15 amps (whether plugged into a single outlet or spread out over

multiple outlets). If the load exceeds 15 amps, the circuit breaker will trip and power will be turned off at all outlets.

For the unit to operate correctly, unplug the unit from the wall outlet, press the master power switch to the off

position (fully extended), press the circuit breaker to reset the unit, and reduce the load by unplugging some

devices.

CAUTION: The telephone protection feature of this product could be inoperable if improperly installed.

CAUTION: To reduce the risk of electrical shock, inspect the premises carefully. Do not use the unit if proper equipment

grounding cannot be verified.

CAUTION: If the unit has been struck by a surge and the light is no longer illuminated, reset the unit. If indicator light

does not illuminate, the unit has done its job and protected the equipment. The outlets will still work but you no

longer are protected against surges. Please contact Snap AV to request an equivalent replacement as per Snap AV’s

Surge Protector Equipment Policy.

NOTE: This device features an internal protection that will disconnect the surge protective component at the end of

its useful life but will maintain power to the load - now unprotected: If this situtaion is undesirable for the application,

follow the Lifetime Replacement Policy found in SnapAV’s Surge Protector Warranty Policy.

For customer assistance call 1.866.838.5052
