WATTBOX™ 600 Chassis Series Owners Manual
Securing Power Adapters
IP Connections

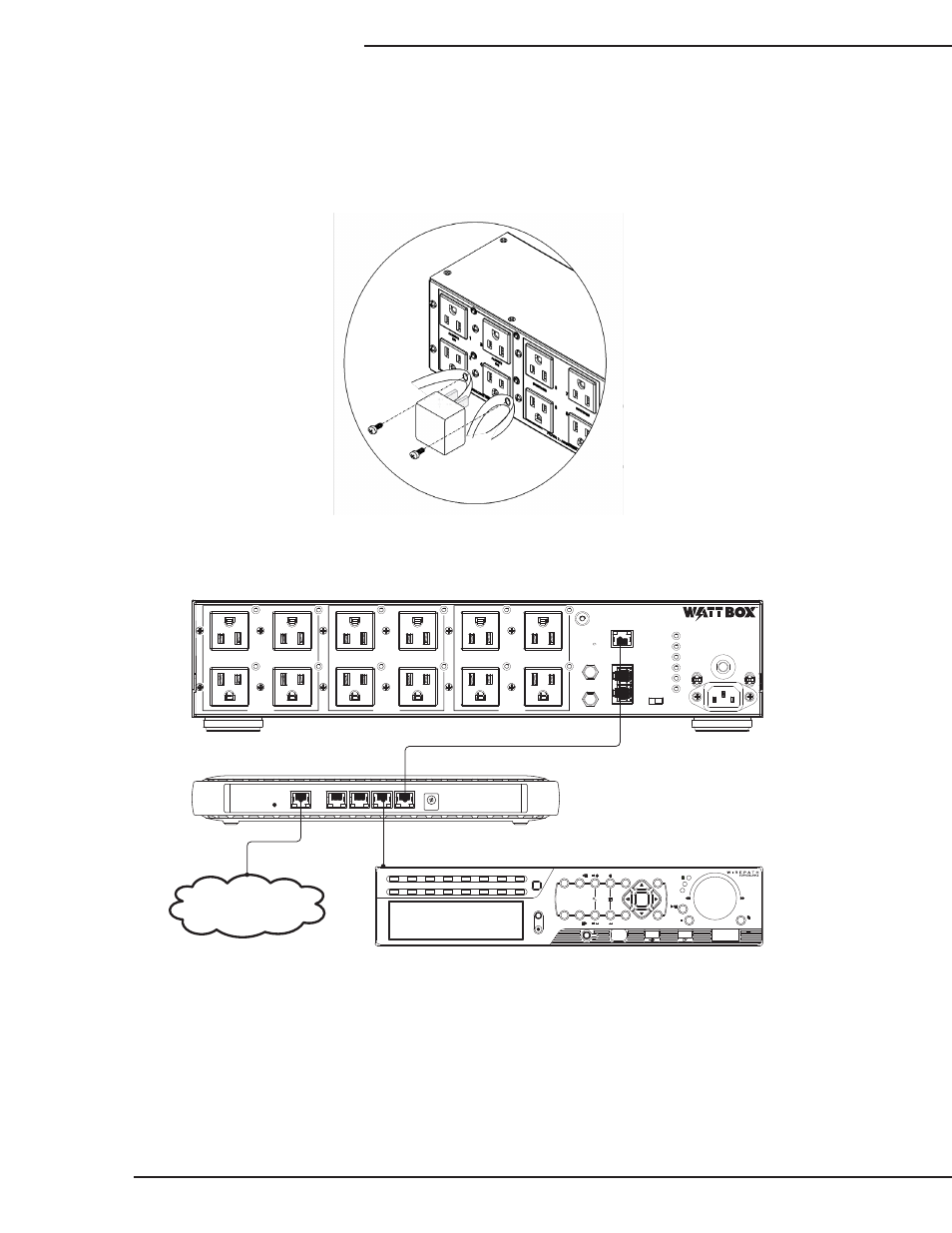

The WattBox™ 600 series is supplied with hook & loop straps that can be used to secure power adapters the outlets.
1. Remove the screw on both sides of the outlet.
2. Insert the screw in the eyelet on the hook & loop straps.
3. Tighten the screw to secure the strap.
4. Wrap the hook & loop straps over the power adapter and fasten them together.
After connecting the WB-600CH-IPVCE-12 to the network, configuration for IP control is performed using the Wattbox
Utility. The utility and documentation on configuring the Wattbox can be found on the included CD Rom and the SnapAV
website (www.SnapAV.com).
Note: The WattBox™ must be connected to the network and the router on before supplying power to the WattBox™.
