1. INTRODUCTION
Episode is one of the most highly-regarded brands of electronics
equipment available today. We appreciate your business and
we stand committed to providing our customers with the highest
degree of quality and service in the industry.
2. INSTALLATION

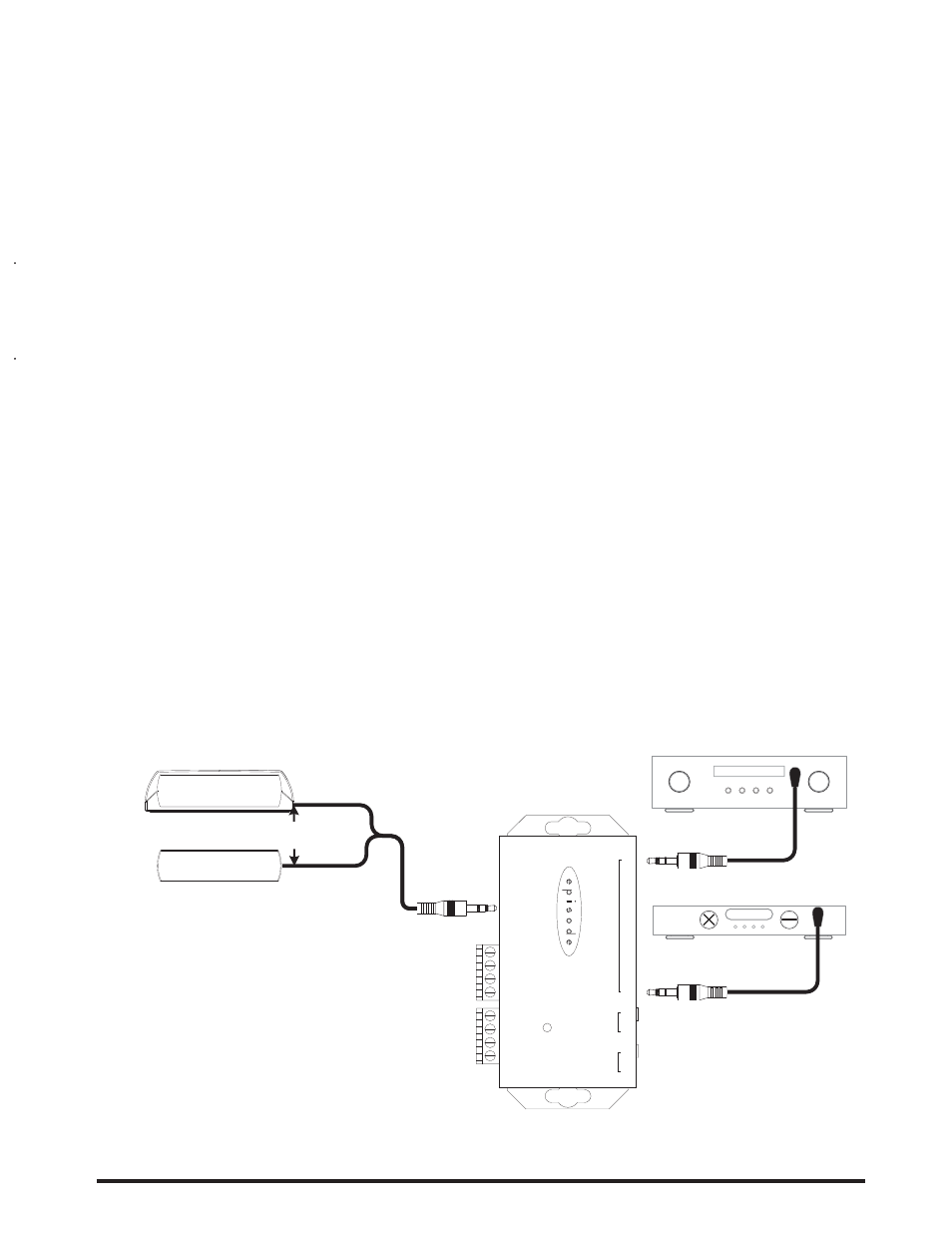

2.1. BASIC CONNECTIONS (1/8” – 3.5MM JACKS)
1. Connect an IR Receiver to the IR Receiver In
(IR A or IR B on IR2X6).
Note: Do not connect the IR Receiver to an IR Emitter
connection as damage to the Receiver may occur.
2. Connect the desired number of IR Emitters to the Emitter
connections.
2
12
3
4
56
A+
B
B
EM
IT
TERS
SW5
SW6
POW
ER
+12VDC
IR
A
IR
B
IR
A
IR B
+12V G
N
D
SIG
NAL
+12V G
N
D
SIG
NAL
POW
ER
IR2X6
A+
B
B
EE-IR-RCVR-TABLE
Žƌ
EE-IR-RCVR-SURFACE
HDMI
AV Receiver
256
Cable/Sat Box
