M E C H A N I C A L L O C K S
DOOR MOUNTED FOR
SWINGING DOORS
Maximum security. 10380A CREMONE BOLT SET
WITH DEADLOCK
TECHNICAL DATA:
• STANDARD FINISH:
Galvanized (Lever is
US26)
• LOCKBOLT: Cold-rolled
steel with hardened
steel insert pins
• PARACENTRIC CYLINDER:
Silicon bronze/copper alloy
• TUMBLERS: Spring tem-
pered brass. Tumblers
actuated by phosphor
bronze springs, six tum-
blers per lock.
• LOCK SIZE:
15-5/16” L x 9-1/2” H x 2-1/8” TK
• LOCK WEIGHT: 55 lbs.
• LOCKBOLT SIZE:
2” x 3/4”
• LOCKBOLT THROW: 3/4”
* Indicates lock mounting/access plate side.
HM Mounting Shown
D20
STANDARD FEATURES:
• Manual deadlock
• Six heavy-duty tumblers
• Three-point locking
• Lever handles
• Mounting fasteners
• Head and foot rods
• Rods manufactured for
standard 7'0" door height.
For doors less than 7'0",
field cut rods to suit. For
doors over 7''0",contact
Customer Service.
• 10105R Floor receptacle
See page F16 for 10105 and
10105R
HOW TO ORDER:
Specify:
1. Quantity
2. Swing chart number (handing)
3. Key code instructions
4. 1-3/4" or 2" door.
OPTIONAL FEATURES FOR
PAIR OF DOORS:
10105 HEAD OR FOOT BOLT

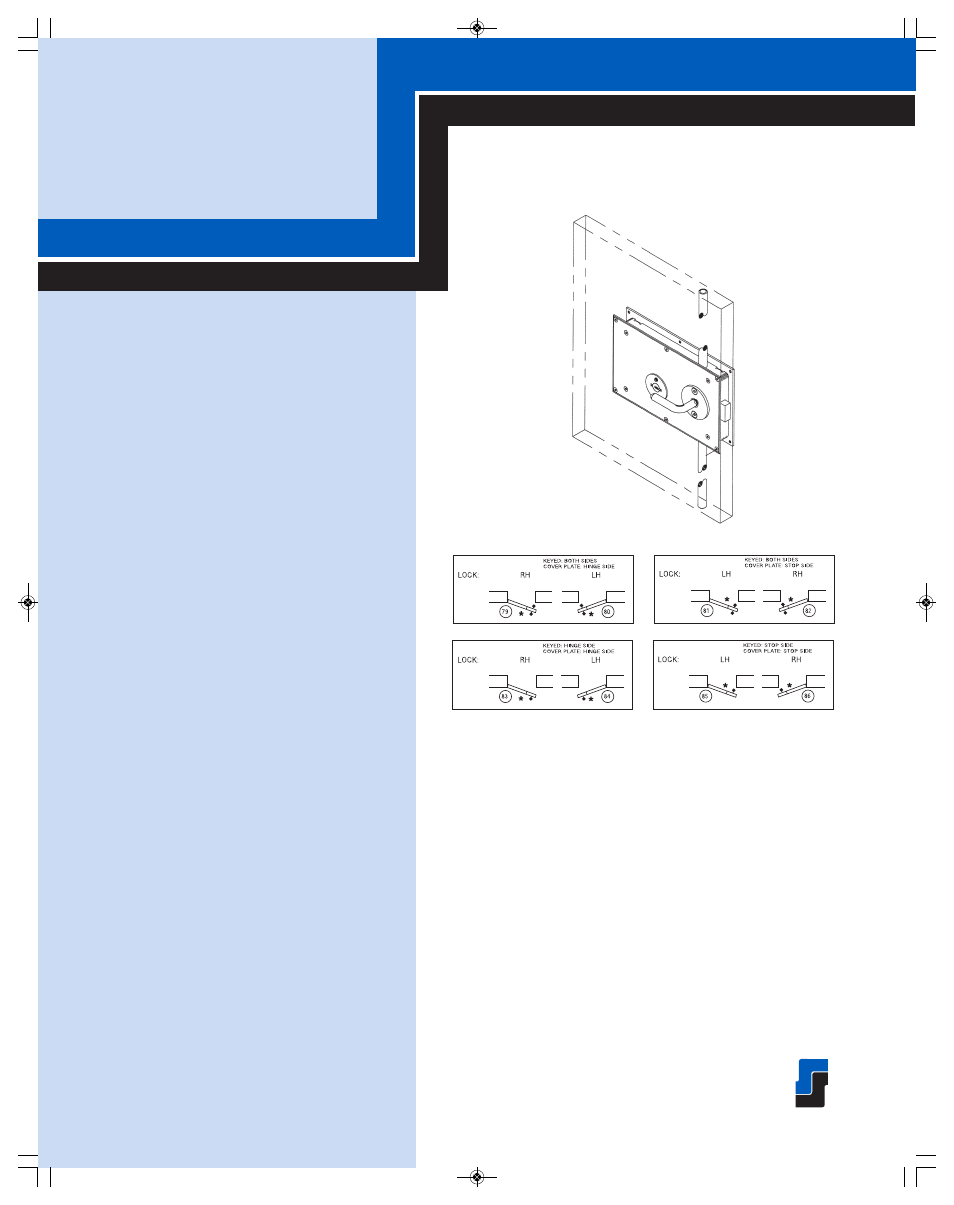

Swing Chart: Specify circled swing number when ordering.
