P.O. BOX 2021 • SAN ANTONIO, TX • 78297 • 210-533-1231 • FAX: 210-533-2211
Revised 3/09
M E C H A N I C A L L O C K S
DOOR MOUNTED FOR
SWINGING DOORS
Maximum security.

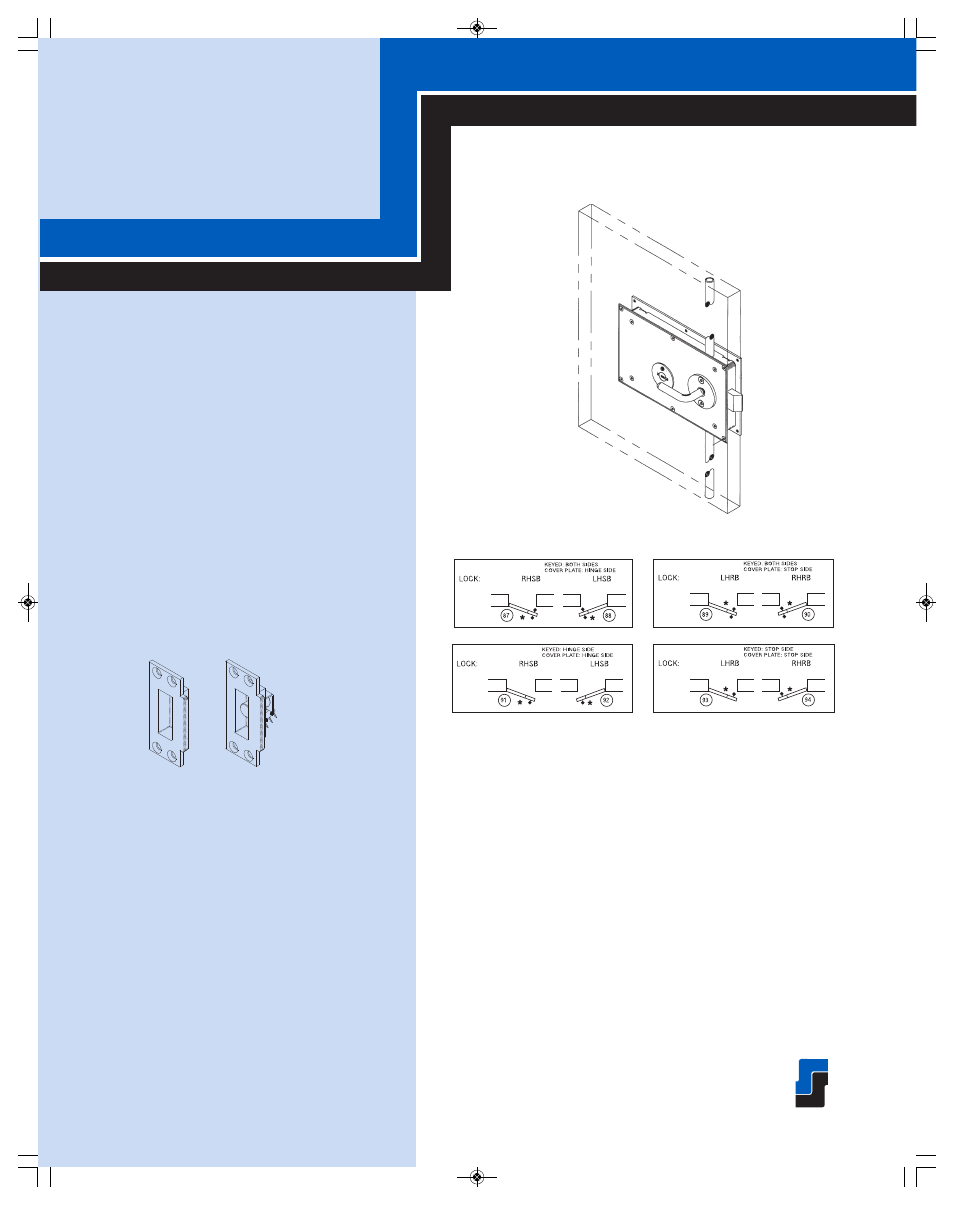

10370A CREMONE BOLT SET
WITH SNAPLATCH
TECHNICAL DATA:
• STANDARD FINISH:
Galvanized (Lever is
US26)
• LOCKBOLT: Cold-
rolled steel with hard-
ened steel insert pins
• PARACENTRIC CYLINDER:
Silicon bronze/copper alloy
• TUMBLERS: Spring tem-
pered brass. Tumblers
actuated by phosphor
bronze springs, six tum-
blers per lock.
• LOCK SIZE:
15-5/16” Lx 9-1/2” H x 2-1/8”TK
• LOCK WEIGHT: 60 lbs.
• LATCHBOLT SIZE:
2” x 3/4”
• LATCHBOLT THROW: 3/4”
*
Indicates lock mounting /access plate side.
HM Mounting Shown
D18
STANDARD FEATURES:
• Automatic snaplatch
• Six heavy-duty tumblers
• Three-point locking
• Lever handles
• Strike (470C) with security fasteners
• Mounting fasteners
• Head and foot rods
• Rods manufactured for standard 7'0"
door height. For doors less than 7'0",
field cut rods to suit. For doors
over 7' 0", contact Customer Service
• 10105R Floor receptacle
See page F17 for 10105 and 10105R
HOW TO ORDER:
Specify:
1. Quantity
2. Swing chart number (handing)
3. Key code instructions
4. 1-3/4" or 2" door
OPTIONAL FEATURE FOR
PAIR OF DOORS:
10105 HEAD OR FOOT BOLT
Swing Chart:
Specify circled swing number when ordering.
470C 470CL
(Standard) (Optional)
BOLT KEEPERS/STRIKES
