1017am snaplatch, Standard features, Optional features – Southern Folger 1017AM SNAPLATCH User Manual
Page 2: Technical data
FOR MORE INFORMATION, PLEASE CALL 210-533-1231
Revised 3/09
M E C H A N I C A L L O C K S
DOOR MOUNTED
FOR SMALL
SWINGING DOORS
Medium security.

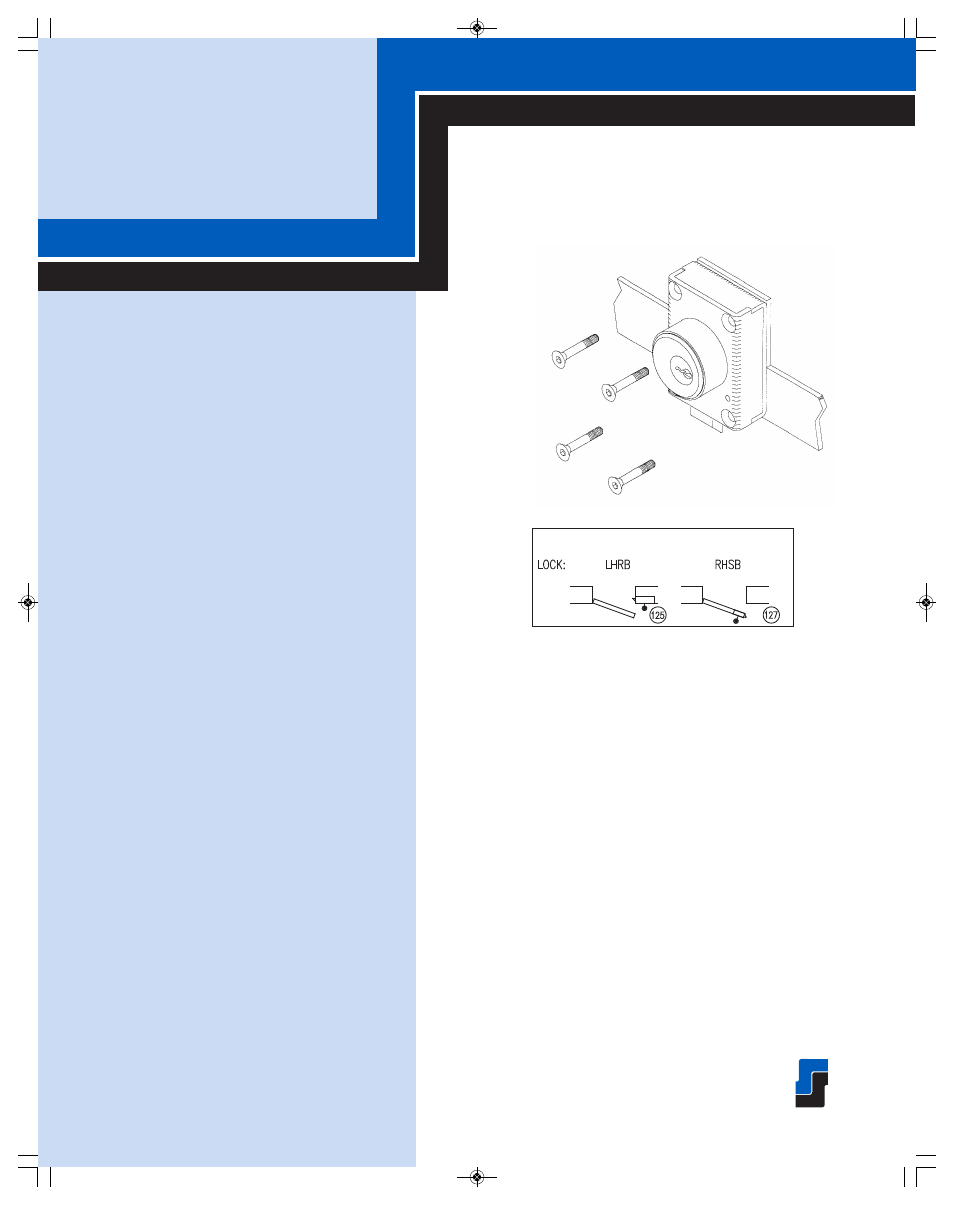

1017AM SNAPLATCH
STANDARD FEATURES:
• Automatic snaplatch
• Six pin tumblers
• Mounting fasteners
• Finish US26D
OPTIONAL FEATURES:
EXTENDED BOLT - Used for
hollow metal door mounting.
Specify “1 inch”.
NOTE: Master keying available.
HOW TO ORDER:
Specify:
1. Quantity
2. Key code instructions
3. 5/8” or 1” bolt extension
TECHNICAL DATA:
• STANDARD FINISH:
Galvanized
• COVER: Steel
• CASE: Steel
• LATCHBOLT: Stainless steel
• MOGUL CYLINDER:
US26D
• PIN TUMBLERS &
ENGAGING BALLS:
Combination nickel silver
and stainless steel,
6 tumblers per lock.
• MOGUL KEYS:
Nickel Silver
• LOCK CASE SIZE:
4.4” L x 3.15” H x 1.35” TK
• LOCK WEIGHT: 5 lbs.
• LATCHBOLT SIZE:
1-1/2” H x 3/4” TK
• LATCHBOLT:
5/8” extended
1/2” travel
D8
090604SouthernFolger_final:INSIDE 8/21/09 5:22 PM Page 56
