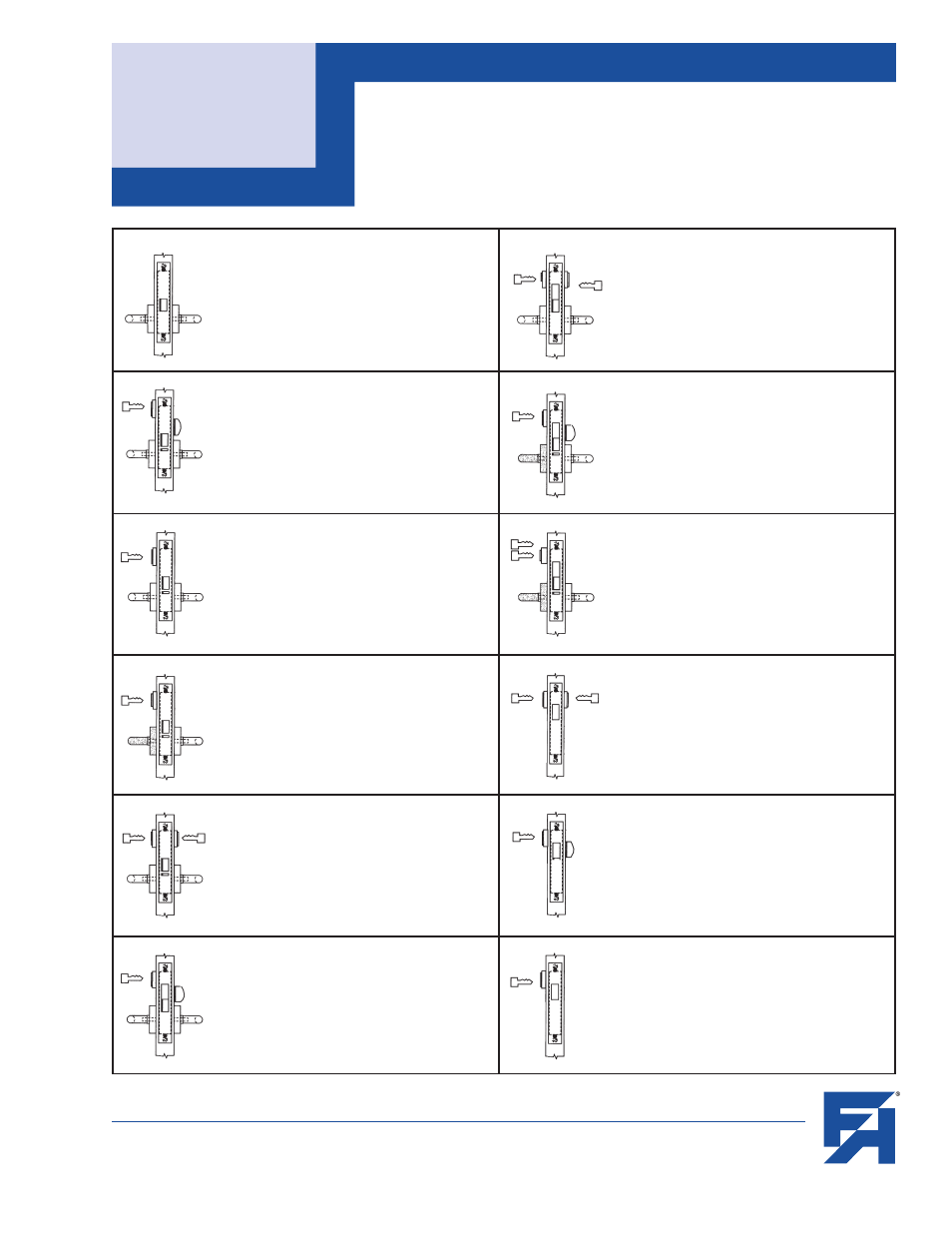

D9301 (F01) – Passage or closed latch
s Either handle operates the latchbolt at all
times.
D9304 (F04) – Entry lock
s Latchbolt operated by handle either side
except when outside handle is made
inoperative by inside thumbturn.
s When outside handle is locked, latchbolt
operated by key outside, handle inside.
s Auxiliary deadlatch.
D9305 (F05) – Classroom lock
s Latchbolt operated by handle either side,
except when outside handle is locked by key
outside.
s Inside handle is always operative.
s Auxiliary deadlatch.
D9307 (F07) – Storeroom or closet lock
s Latchbolt operated by key outside, handle
inside.
s Outside handle inoperative at all times.
s Auxiliary deadlatch.
SHADED HANDLE DENOTES RIGID.
D9309 (F09) – Apartment, exit or toilet lock
s Latchbolt operated by handle either side
except when outside handle is locked by key
from inside.
s When outside handle is locked, latchbolt is
operated by key outside, handle inside.
s Auxiliary deadlatch.
D9313 (F13) – Dormitory or exit lock
s Latchbolt operated by lever from either side.
s Deadbolt projected by key outside, and
thumbturn inside.
s Both bolts retracted by inside lever.
FA Rev. 02-10 C31
For more information, please call 210.533.1231.
FOLGER ADAM MECHANICAL LOCKS Key: Mogul
Door: Swinging
Security
Level: Minimum/Medium
D9300 MAXI-MORTISE ™
D9300 Series Lock Functions
D9314 (F14) – Store door lock
s Latchbolt operated by handles either side.
s Deadbolt operated by key both sides.
D9335 (F15 Mod.) – Modified hotel guest lock
s Latchbolt operated by handle inside, or by
key outside.
s Deadbolt operated by thumbturn inside,
or by key outside.
s Outside handle always inactive.
s Auxiliary deadlatch.
SHADED HANDLE DENOTES RIGID.
D9336 – Inmate keyed lock
s LCK cylinder outside.
s LCK operates latchbolt only.
s Master key operates latch and deadbolt from
outside.
s Outside handle always inactive.
s Auxiliary deadlatch.
SHADED HANDLE DENOTES RIGID.
D9316 (F16) – Deadlock
s Deadbolt is operated by key either side.
D9317 (F17) – Deadlock
s Deadbolt is operated by key outside,
thumbturn inside.
D9318 (F18) – Deadlock
s Deadbolt is operated by key from outside only.
OUTSIDE INSIDE OUTSIDE INSIDE
