Southern Folger 51E DEADLATCH - Manual (Page 2)

A6 Printed in USA FA Rev. 02-10
P.O. Box 2021, San Antonio, TX 78297 s Ph: 210.533.1231 s Fx: 210.533.2211
Web: www.SouthernFolger.com s Email: [email protected]
s Indication switch – A lock status
indication switch which monitors the
extension of the latch bolt and the
deadlocked condition is included.
s Rugged construction – Case and
cover are 7 gauge steel.
s Tumbler Options – Choice of five or
six tumbler models. Six tumbler
model offers greater pick resistance.
s Solid steel latchbolt – Latchbolt is
zinc plated steel; concealed pins resist
sawing.
s Deadlock actuator – Roller type, zinc
plated steel, adjustable for variations
in door-to-jamb clearance.
s Finish – Zinc plated.
Optional Features________
s Solenoid voltage – 220VAC
s No-notch feature – The holdback
lever has no notch to hold the
latchbolt mechanically retracted. The
latchbolt extends in the locked
position regardless of the position of
the door.
s Interlocking – Accomplished through
the control console.
Specifications_________
s Case and cover – 7 gauge steel.
s Latchbolt – Solid steel with
hardened steel roller pins.
s Deadlock actuator – Zinc plated
steel, roller type.
s Lever tumblers – spring temper
brass, activated by heavy
phosphor bronze springs.
s Key cylinder – One piece,
bronze alloy with paracentric
keyway.
s Bolt size – 2" x 3/4"
s Bolt throw – 3/4"
Electrical
Characteristics________
s Solenoid – Continuous-duty type.
s Ratings – 120VAC, 60HZ, 13
amps inrush, .75 amps seated
220VAC, 60Hz, 6.5 amps inrush,
.38 amps seated.
s Indication switch –
SPDT, UL Listed.
s Rating – 15 amps at 125 or
250 VAC.
How to Specify___________
NOTE: The above are standard
5-tumbler models. To specify 6-tumbler
units, add –6 after the basic model
number. Example: 56E-6-L.

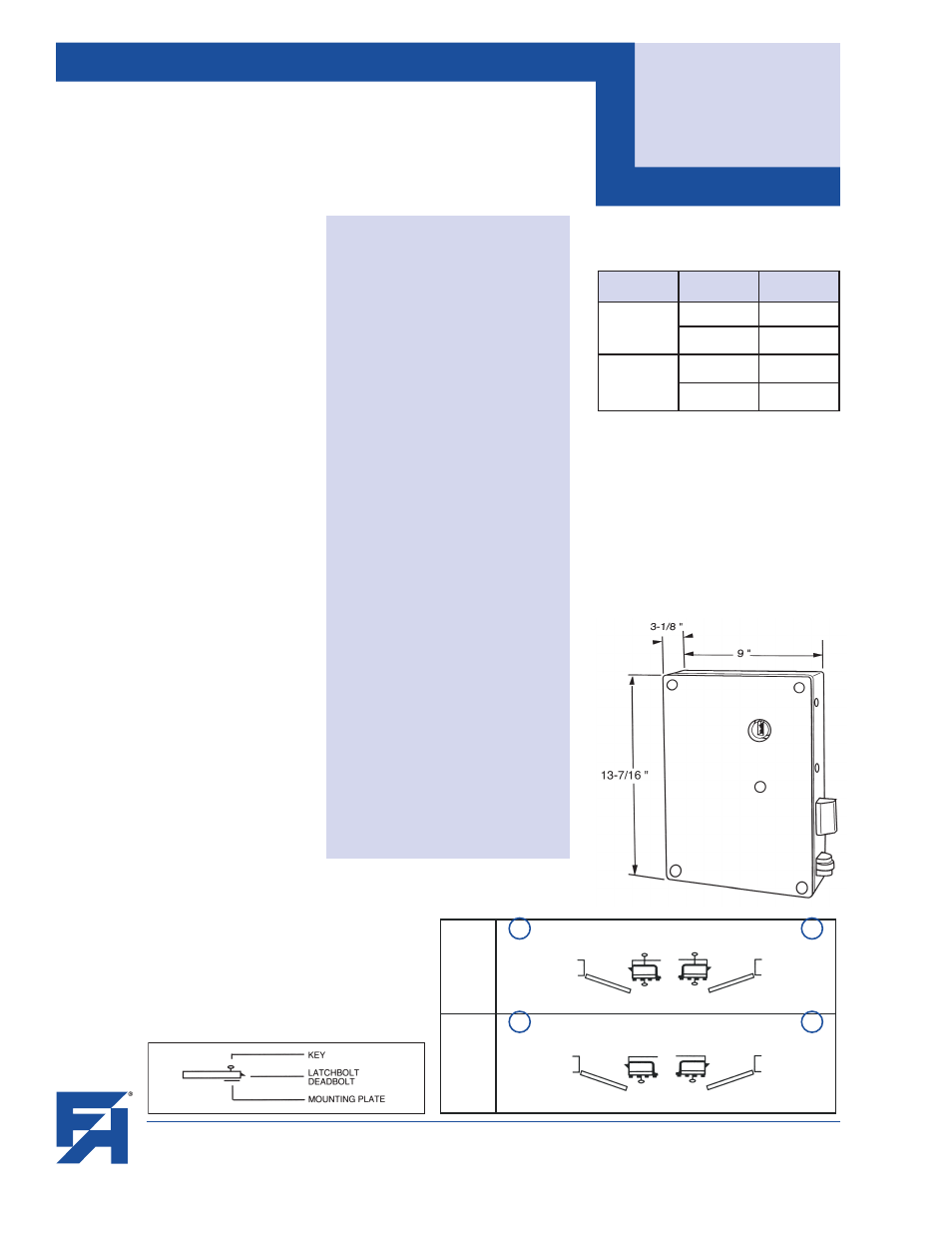

Dimensional Data________
Note: Dimensions are for information
and planning purposes only, and should
not be used as templates.
FOLGER ADAM ELECTRIC LOCKS Key: Prison Paracentric
Door: Swinging
Security
Level:
Maximum
51E DEADLATCH
OPERATION KEYING
WITH IND.
SWITCH
Standard (1)
one side 52EL
two sides 56EL
No-notch (2)
one side 52ELNN
two sides 56ELNN
LEGEND
56 LOCK
KEYED
BOTH
SIDES
52 LOCK
KEYED
HINGE
SIDE
POCKET COVER HINGE SIDE
25 LHRB LATCHBOLT RHRB 26
27 LHRB LATCHBOLT RHRB 28
Specify circled swing number when ordering.
