Southern Folger 51M DEADLATCH - Manual (Page 2)

A8 Printed in USA FA Rev. 02-10
P.O. Box 2021, San Antonio, TX 78297 s Ph: 210.533.1231 s Fx: 210.533.2211
Web: www.SouthernFolger.com s Email: [email protected]
Optional Features________
s Motor voltage –
24VDC
s Continuous-duty function – Using a
two-position, maintained contact
switch, and a two-position cam on the
motor, the latchbolt may be held
retracted for extended periods. The
latchbolt extends only when the door
is open and the motor is energized a
second time. The latchbolt deadlocks
when extended and the door is
closed.
s No-notch feature – The holdback
lever has no notch to hold the
latchbolt mechanically retracted. This
feature may be used with Continuous
Duty feature, and operates in the
same manner as above, except that
the latchbolt extends when the motor
is energized a second time regardless
of the position of the door.
s
Interlocking – Accomplished through
the control console.
Specifications_________
s Case and cover – 7 gauge steel.
s Latchbolt – Solid steel with
hardened steel roller pins.
s Deadlock actuator – Zinc plated
steel, roller-type.
s Lever tumblers – Spring-temper
brass, activated by heavy
phosphor-bronze springs.
s Key cylinder – One piece, bronze
alloy with paracentric keyway.
s Bolt size – 2" x 3/4"
s Bolt throw – 3/4"
Electrical
Characteristics________
s Motor (AC) – Synchronous-type
with brake.
s Ratings (120VAC) – 60HZ,
1.3 amps full load.
s Ratings (220VAC) – 60HZ,
.65 amps full load.
s Motor (DC) – Permanent magnet
gearmotor.
s Ratings –
24VDC, 2.2 amps at
full load.
s Indication switch – SPDT, UL
Listed, 15 amps at 125VAC
or 250VAC.
How to Specify___________

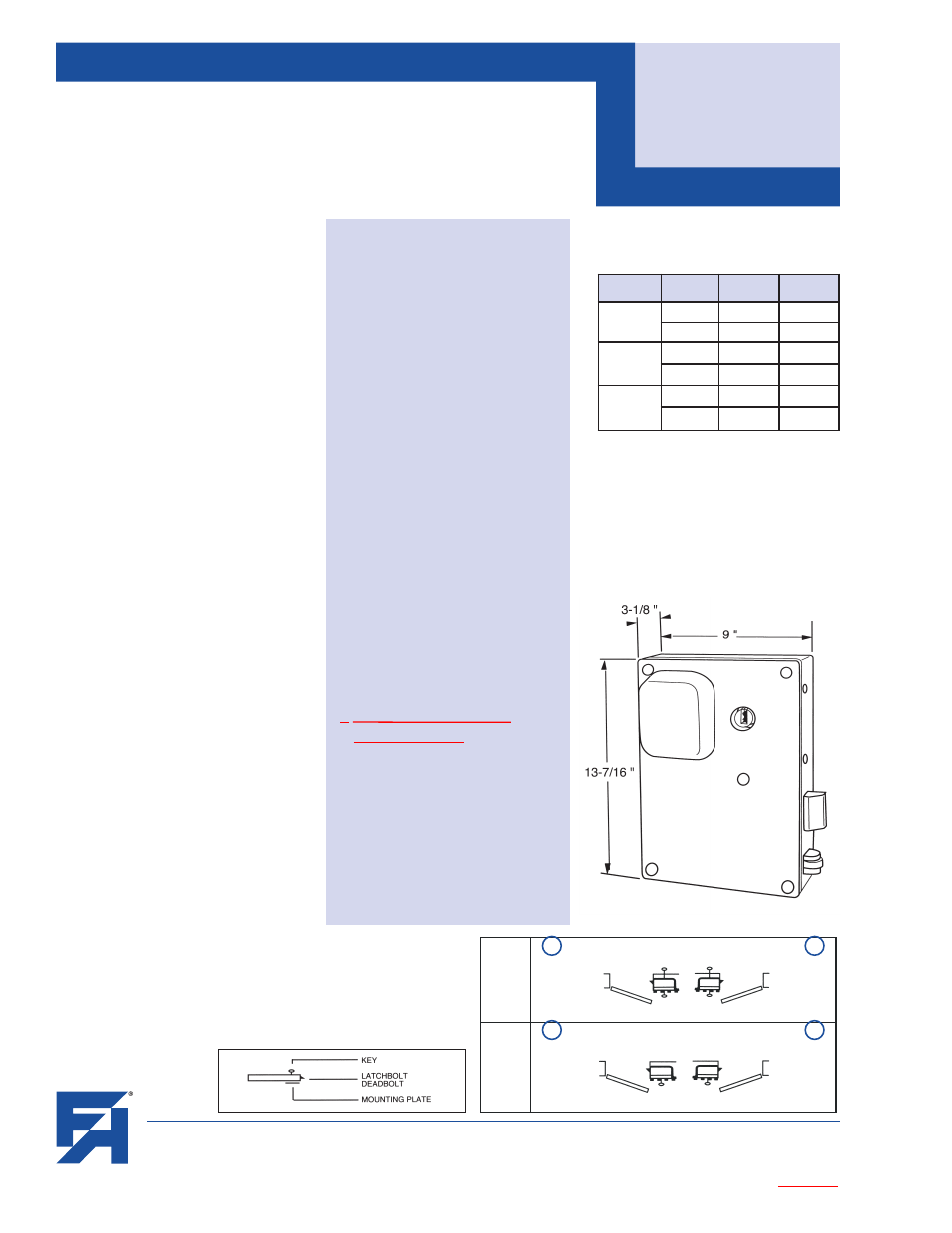

Dimensional Data________
Note: Dimensions are for information
and planning purposes only, and should
not be used as templates.
FOLGER ADAM ELECTRIC LOCKS Key: Prison Paracentric
Door: Swinging
Security
Level:
Maximum
51M DEADLATCH
OPERATION KEYING
W/INDICATION
SWITCHES
W/INDICATION
& INT. SWITCHES
Standard
one side 52ML 52MLI
two sides 56ML 56MLI
Continuous
Duty
one side 52MCL N/A
two sides 56MCL N/A
With
No-notch
one side 52MCLNN N/A
two sides 56MCLNN N/A
LEGEND
56 LOCK
KEYED
BOTH
SIDES
52 LOCK
KEYED
HINGE
SIDE
POCKET COVER HINGE SIDE
25 LHRB LATCHBOLT RHRB 26
27 LHRB LATCHBOLT RHRB 28
Specify circled swing number when ordering.
NOTE: The above are standard 5-tumbler models. To specify
6-tumbler units, add -6 after the basic model number.
Example: 52M-6-L
Rev 11-12
