WPS6C Instruction Sheet
Do not completely tighten screws until step 5
H. Wilson Company
Address: 2245 Delany Rd.
Waukegan, IL
Phone: 800.245.7224
Fax: 800.245.8224
Email: [email protected]
web: www.hwilson.com
APRIL 2010 - REV00
= E
= I
= O = P

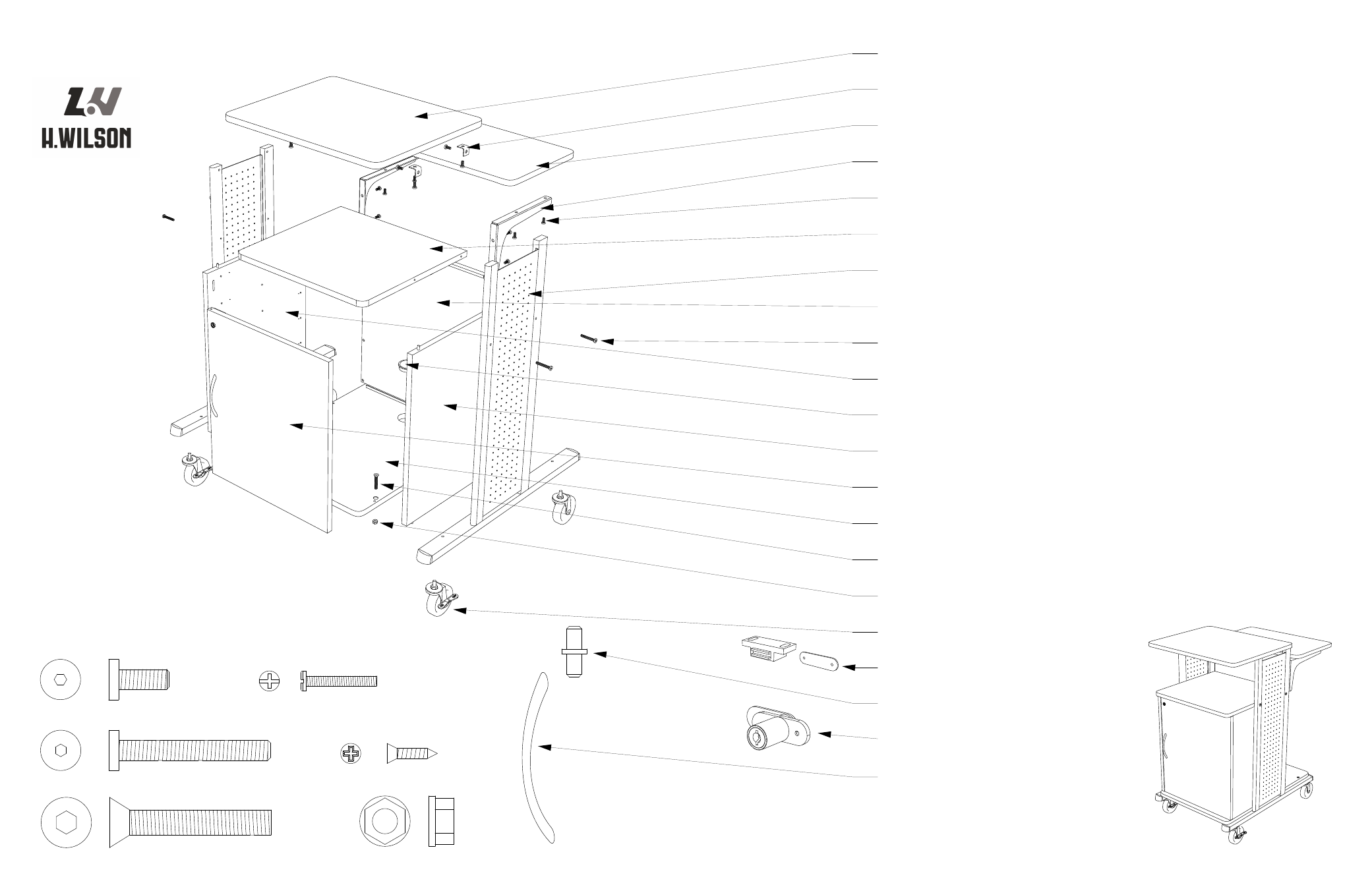

M. 1 - Door panel (19 1/4" x 23 1/8")
F. 1 - Middle shelf (20 3/8" x 19 1/4")
C. 1 Adjustable shelf (23 5/8" x 13 7/8")
A. 1 - Top (23 5/8" x 19 1/4")
I. 4 - M6x35 Allen panhead screws
O. 4 - M10x35 Allen screws
N. 1 - Bottom panel (20 3/8" x 30 5/8")
K. 1 - Cable grommet pack
J. 1 - Left cabinet panel (18 3/16" x 23 1/4")
H. 1 - Metal back panel
G. 2 - Legs (Left & Right pair)
E. 24 - M6x10 Allen panhead screws
D. 2 - Adjustable shelf brackets (Left & Right pair)
B. 4 - Small L brackets
P. 4 - M10 nuts
Q. 4 - Casters
(2 w/ Brake, 2 w/o Brake, Wrench)
S. 2 - Spindles
R. 1 - Magnetic catch and metal strip
T. 1 - Cam lock and key
V. 2 - Handle screws
U. 1 - Handle
W. 6 - 1/2" wood screws
L. 1 - Right cabinet panel (17 7/16" x 23 1/4")
Tools:
W. 1 - Small M6 Allen wrench
X. 1 - Large M10 Allen wrench
Tool Required
1 - Phillips screw driver
= V
= W
