HARDWARE INSTALLATION
To install the External Fax Modem 56K card perform
the following steps:

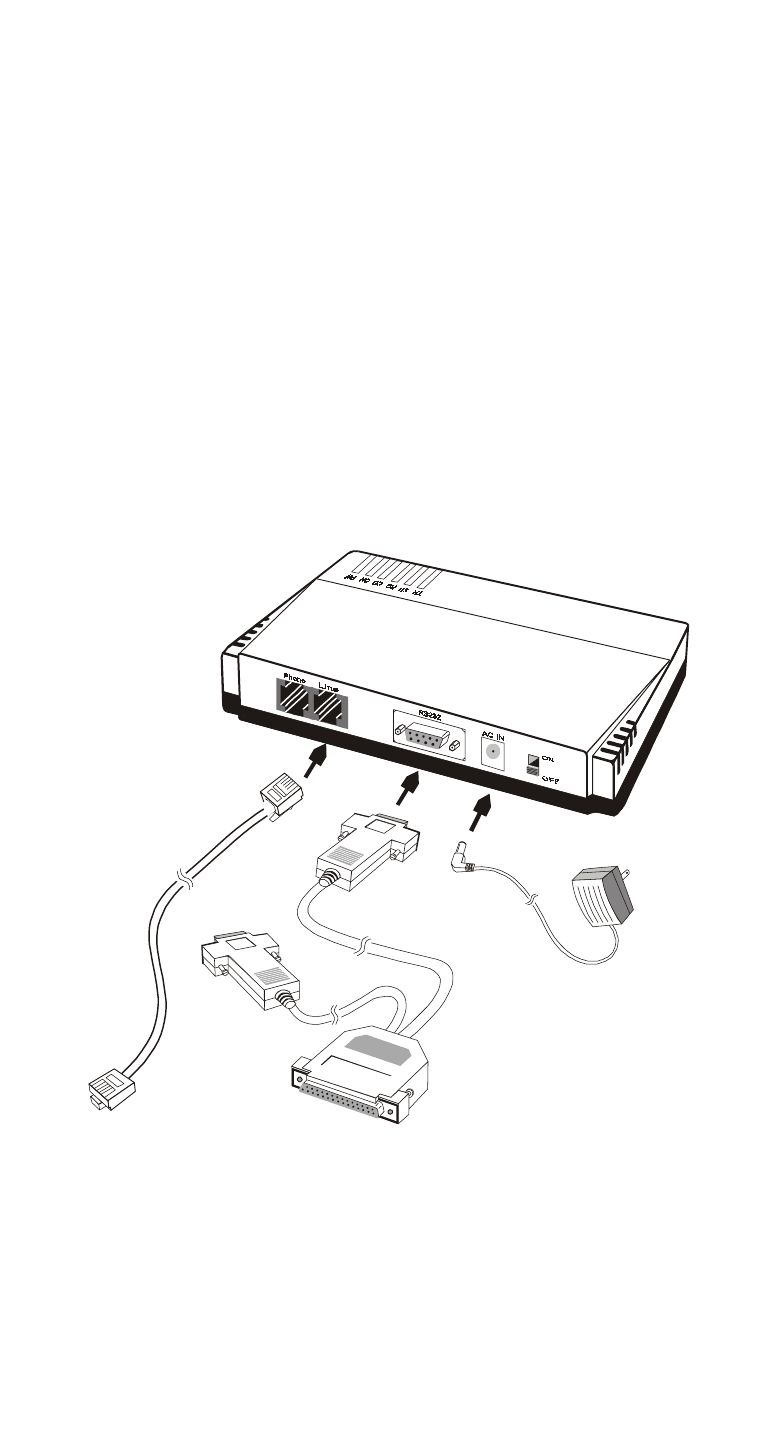

1. Turn off your computer. Make sure
the power switch of your External
Fax Modem 56K is also set to off.
2. Connect the RS-232 cable to your
External Fax Modem 56K with one
end to the RS-232 port on the
rear panel of the External Fax
Modem 56K and the other end to
the COM port of your computer.
3.
Connect the provided power
adapter to the AC IN port and the
other end into a wall outlet.
4. Turn the Power Switch to ON and
power on your computer.
- 1 -
