Step 7 cont: Install the Lockey 2230/2435
1. Insert the Spindle (#7/8) into the Outside Body (#1) ensuring it’s in the proper angled position.
*(SEE FIGURES BELOW)
2. Using a screwdriver, secure the lock to the door with the Screws (#9 or #10).
Screw length is dependent on door thickness.
3. Test the operation of the Latch by turning the inside knob/lever.
4. Locate position where Latch strikes door frame and install Mortised Strike (#5) and Strike Plate (#6).

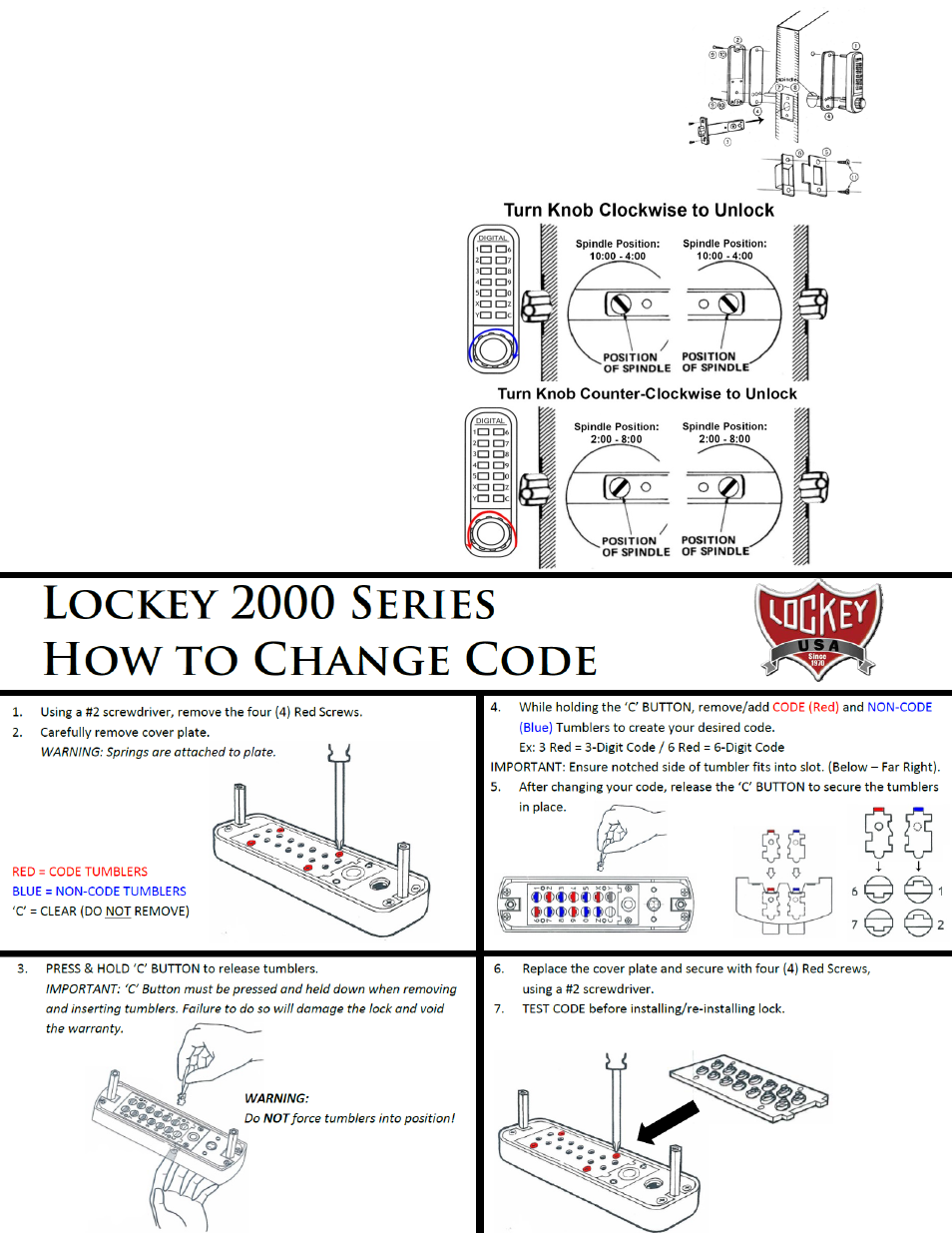

*IMPORTANT: SPINDLE POSITION/ANGLE
CLOCKWISE TURN TO UNLOCK WITH COMBINATION
The 2230/2435 is factory preset to unlock with a clockwise turn
when the combination is entered. The Spindle MUST be placed
through the latch, at a 10:00 – 4:00 angle as shown.
COUNTER-CLOCKWISE TURN TO UNLOCK WITH COMBINATION
If desired, the 2230/2435 can be unlocked with a counter-clockwise
turn when the combination is entered. To unlock the 2230/2435
with a counter-clockwise turn, please refer to Step 6 to change the
Handing Pin.
After changing the Handing Pin, the Spindle MUST be placed
through the latch at a 2:00 – 8:00 angle as shown.
