LockeyUSA 2835 - Manual

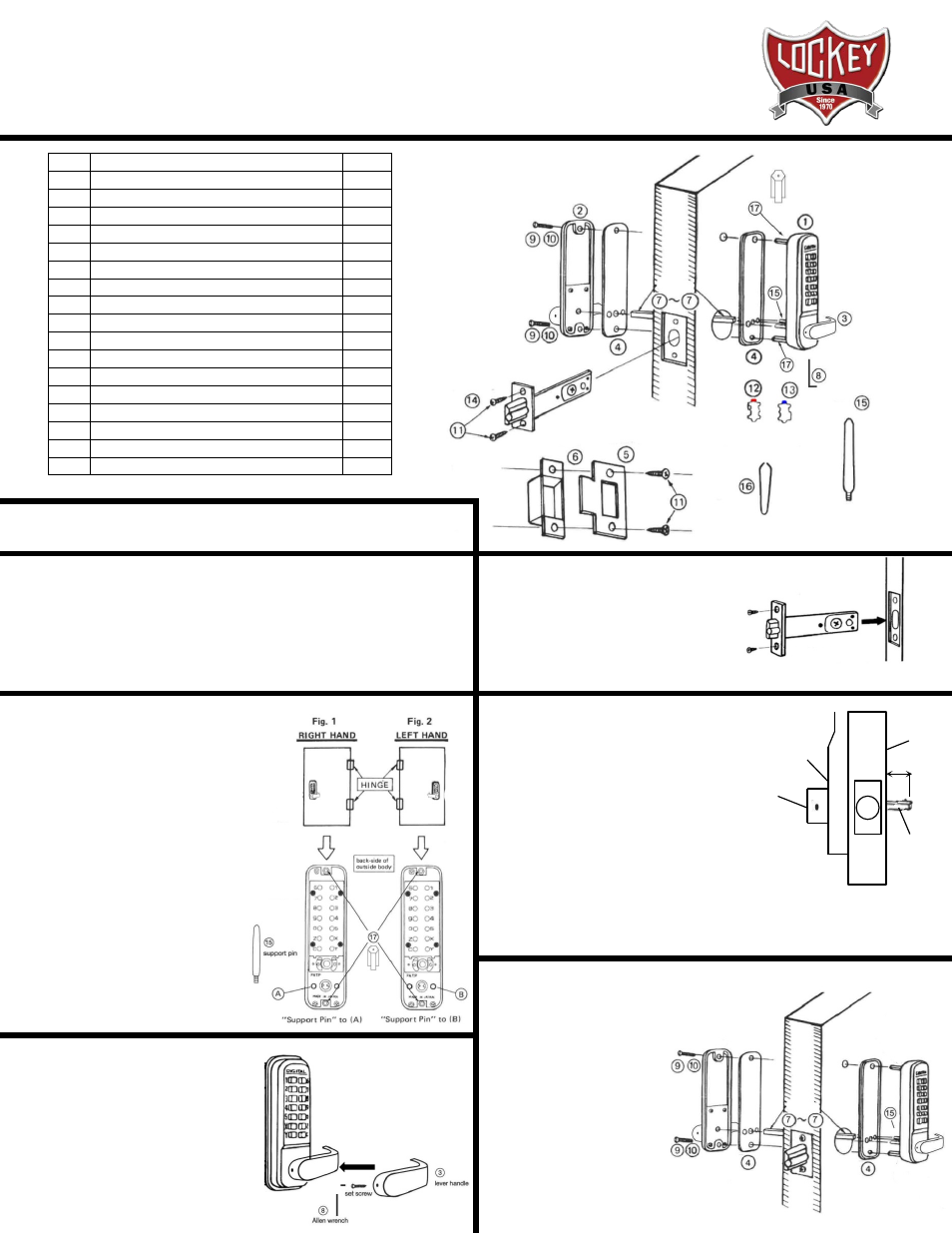

No. Part Name Qty.
1 Outside Body 1
2 Inside Body 1
3 Lever Handle 2
4 Rubber Trim Plate 2
5 Strike Plate 1
6 Mortised Striker 1
7 Spindle 1
8 Allen Wrench 1
9 Machine Screw M4 x 40 mm 2
10 Machine Screw M4 x 30 mm | 50 mm 1|1
11 Wood Screw M4 x 16 mm 4
12 Extra Code Tumblers (Red) 2
13 Extra Non-Code Tumblers (Blue) 3
14 Latch (2 3/8” or 2 3/4”) 1
15 Support Pin 1
16 Tweezers 1
17 Hex Bolts 2
Door Edge
Step 7: Install the Lockey 2835
1. Place the Rubber Trim Plate (#4) on the
backside of the Outside Body (#1).
2. Place the Outside Body
on the door. The hexagonal
bolts (#17) should extend
through the top and bottom
holes.
3. The Support Pin (#15) should fit
into and extend through the hole in the
Latch (#14).
Step 6: Verify Correct Spindle Length
1. With Latch (#14) installed, hold
the Inside Body (#2) and Rubber Trim
Plate (#4) to the door.
2. Place Spindle (#7) through Latch,
into the Inside Body, as far as possible.
3. Spindle should extend from exterior of door
3/8” min. – 5/8” max.
4. If Spindle is too long, cut it to the correct length using Pliers.
IMPORTANT: If spindle extends less than 3/8” it may not engage the lock. If spindle
extends more than 5/8”, it will cause the lock to bind.
Lever Handle (#3)
Step 5: Install Latch
1. Insert Latch (#14) into door.
Note: Latch face should be flush with
the door’s edge.
2. Secure with two (2) Wood Screws (#11).
Step 4: Install Lever Handles
Using Allen Wrench (#8), install levers
to the inside and outside bodies.
Secure with set screws.
Note: Levers should point towards
the door hinges.
Step 3: Identify Door Handing
Right-Hand Doors – From exterior of
door, hinges are on right-side. (Fig. 1)
Left-Hand Doors – From exterior of
door, hinges are on left-side. (Fig. 2)
For Right-Hand Doors: Install the
Support Pin (#15) in position ‘A’.
For Left-Hand Doors: Install the
Support Pin (#15) in position ‘B’.
Now, install/screw Hex Bolts (#17)
into the top and bottom as shown.
Lockey 2835 Lever
Installation Instructions
Step 2: Prep Door for Installation with Template
1. Place template (supplied) on door and fold along door’s edge.
2. Mark holes for 2 3/8” or 2 3/4” backset.
3. Drill holes as instructed.
NOTE: For Pre-Prepped 2 1/8” doors, you only need to drill top hole.
Inside Body (#2)
Spindle (#7)
3/8” to 5/8”
Step 1: Change User Code (OPTIONAL)
If you wish to change your code, see instructions on reverse side.
