Step 7 cont: Install the Lockey M230
1. Insert the Spindle (#6/7) into the Outside Body (#1) ensuring it’s in the proper angled position.
*(SEE FIGURES BELOW)
2. Using a screwdriver, secure the lock to the door with the Screws (#8 or #9).
Screw length is dependent on door thickness.
3. Test the operation of the Latch by turning the inside thumb-turn.
4. Locate position where Latch strikes door frame and install Mortised Strike (#4) and Strike Plate (#5).

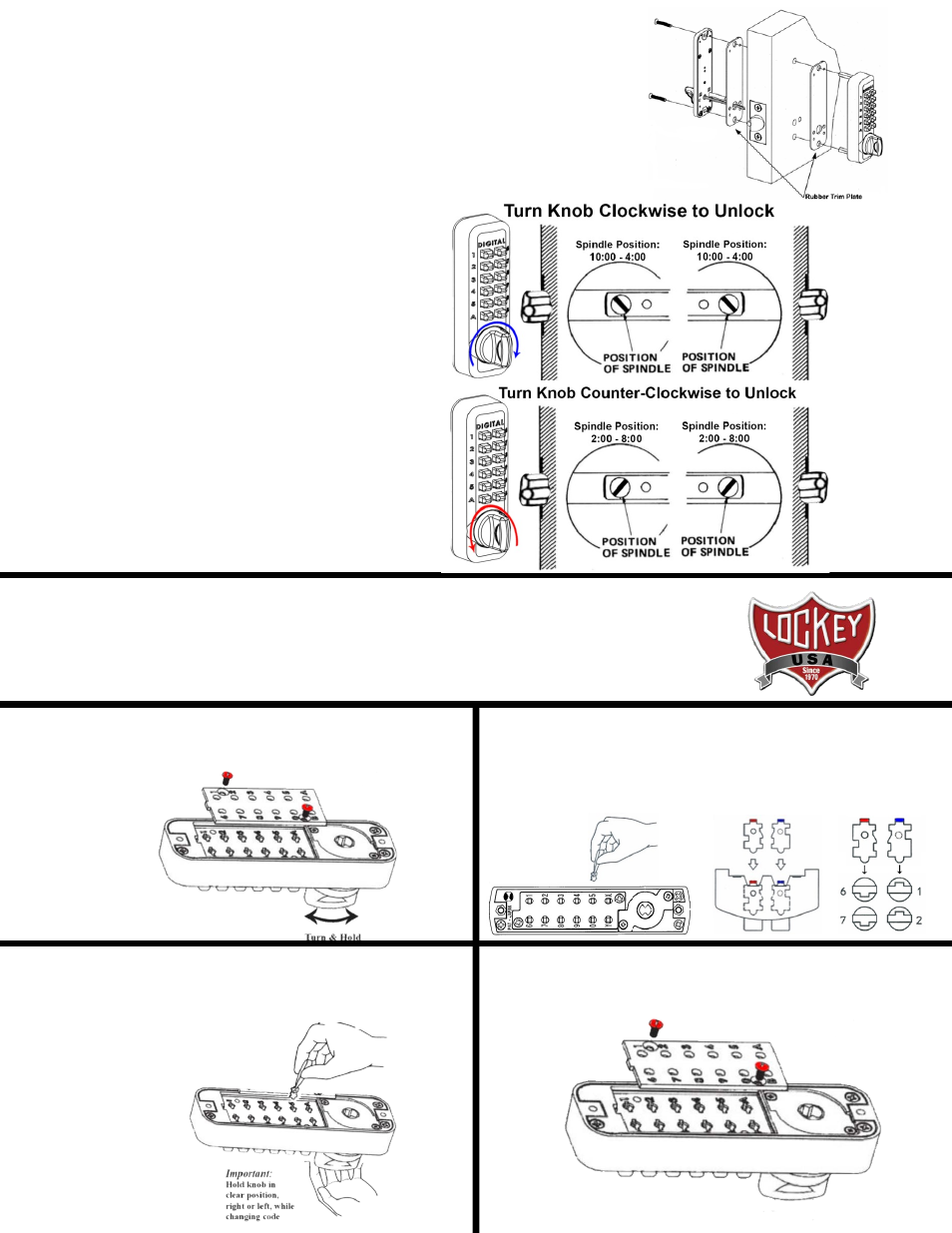

*IMPORTANT: SPINDLE POSITION/ANGLE
CLOCKWISE TURN TO UNLOCK WITH COMBINATION
The M230 is factory preset to unlock with a clockwise turn
when the combination is entered. The Spindle MUST be placed
through the latch, at a 10:00 – 4:00 angle as shown.
COUNTER-CLOCKWISE TURN TO UNLOCK WITH COMBINATION
If desired, the M230 can be unlocked with a counter-clockwise
turn when the combination is entered. To unlock the M230 with a
counter-clockwise turn, please refer to Step 6 to change the
Handing Pin.
After changing the Handing Pin, the Spindle MUST be placed
through the latch at a 2:00 – 8:00 angle as shown.
6. Replace the cover plate and secure with two (2) Red Screws,
using a #2 screwdriver.
7. TEST CODE before installing/re-installing lock.
4. With the thumb-turn held to right or left, remove/add
CODE (Red)
and
NON-CODE (Blue)
Tumblers to create your desired code.
Ex: 3 Red = 3-Digit Code / 6 Red = 6-Digit Code
IMPORTANT: Ensure notched side of tumbler fits into slot. (Below – Far Right).
5. After changing your code, release the thumb-turn to secure the tumblers
in place.
3. TURN & HOLD thumb-turn to right or left to release tumblers.
IMPORTANT: THUMB-TURN MUST be turned and held when removing
and inserting tumblers. Failure to do so will damage the lock and void
the warranty.
Lockey M-Series
How to Change Code
1. Using a #2 screwdriver, remove the two (2) Red Screws.
2. Carefully remove cover plate.
WARNING: Springs are attached to plate.
RED = CODE TUMBLERS
BLUE = NON-CODE TUMBLERS
WARNING:
Do NOT force tumblers into position!
TURNING THUMB-TURN =
CLEAR POSITION
