LevelOne WAP-6110 - Manual (Page 28)

28
Using WISP (Wireless ISP)
The Wireless Access Point supports WISP (Wireless ISP). To
use WISP:

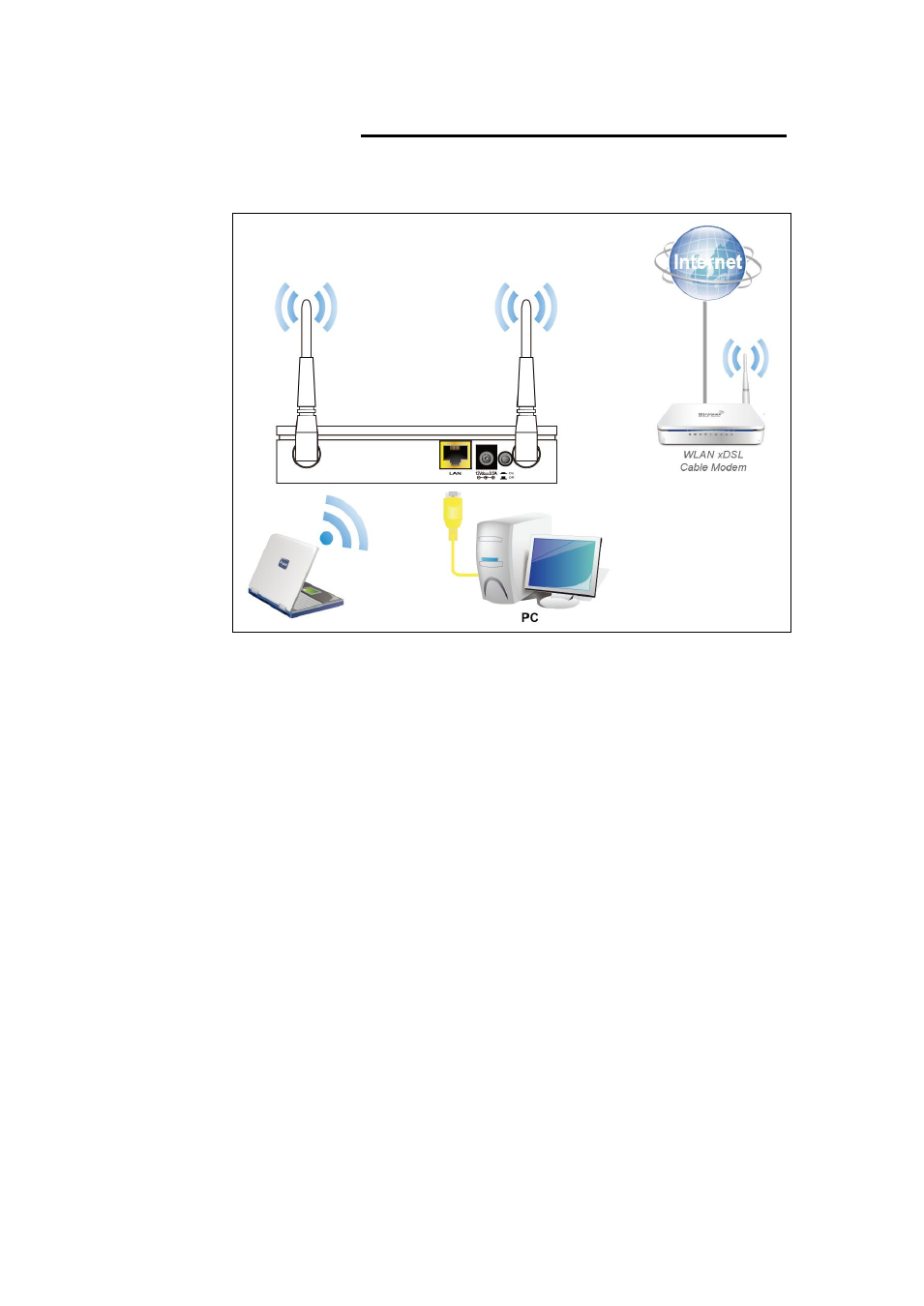

Figure 4: Overview of Hardware Connections
Step 1. Connect the Ethernet cable to LAN Port
Connect the supplied RJ45 Ethernet cable from your PC's
Ethernet port to the 802.11n WLAN AP's LAN Port.
Step 2. Attach the power connector
Connect the power adapter to the power inlet “POWER” of
the 802.11n WLAN AP
and turn the power switch “ON/OFF
SWITCH” of your 802.11n WLAN AP on.
* Actual ANTENNA may vary depending on model
