Rear Panel

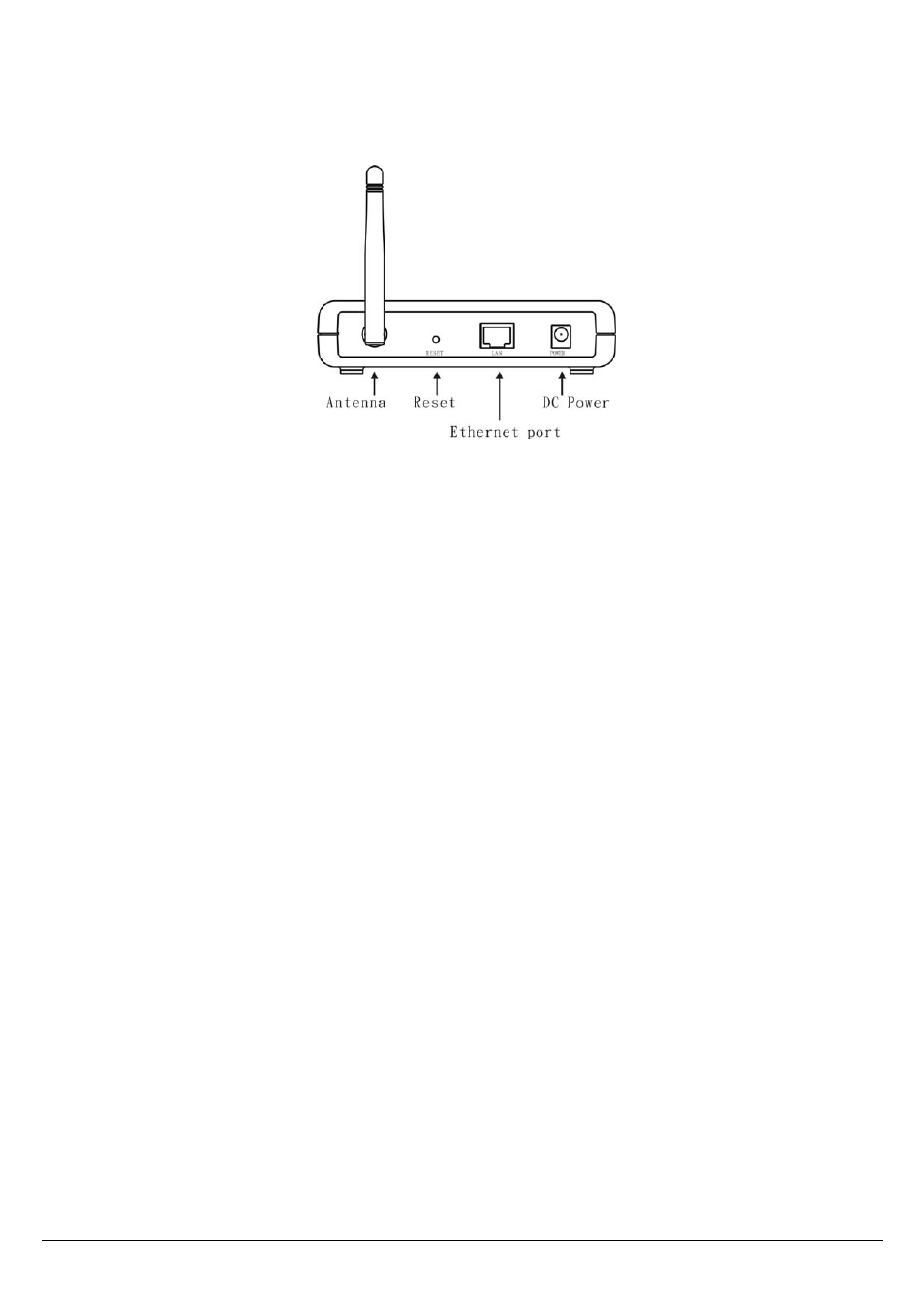

The figure below shows the rear panel of the Access Point

LAN

Ethernet port with 10/100Mbps Fast Ethernet connections, connect this port to switch/hub.

RESET

The Reset function is to reset the setting back to factory default setting, once you press the “RESET”

button more than 5 seconds.

Power

Connect the Power Adapter DC plug to the AP’s power jack.

Antenna Connector

One Antenna connector connects with detachable dipole antenna.
