8
1B

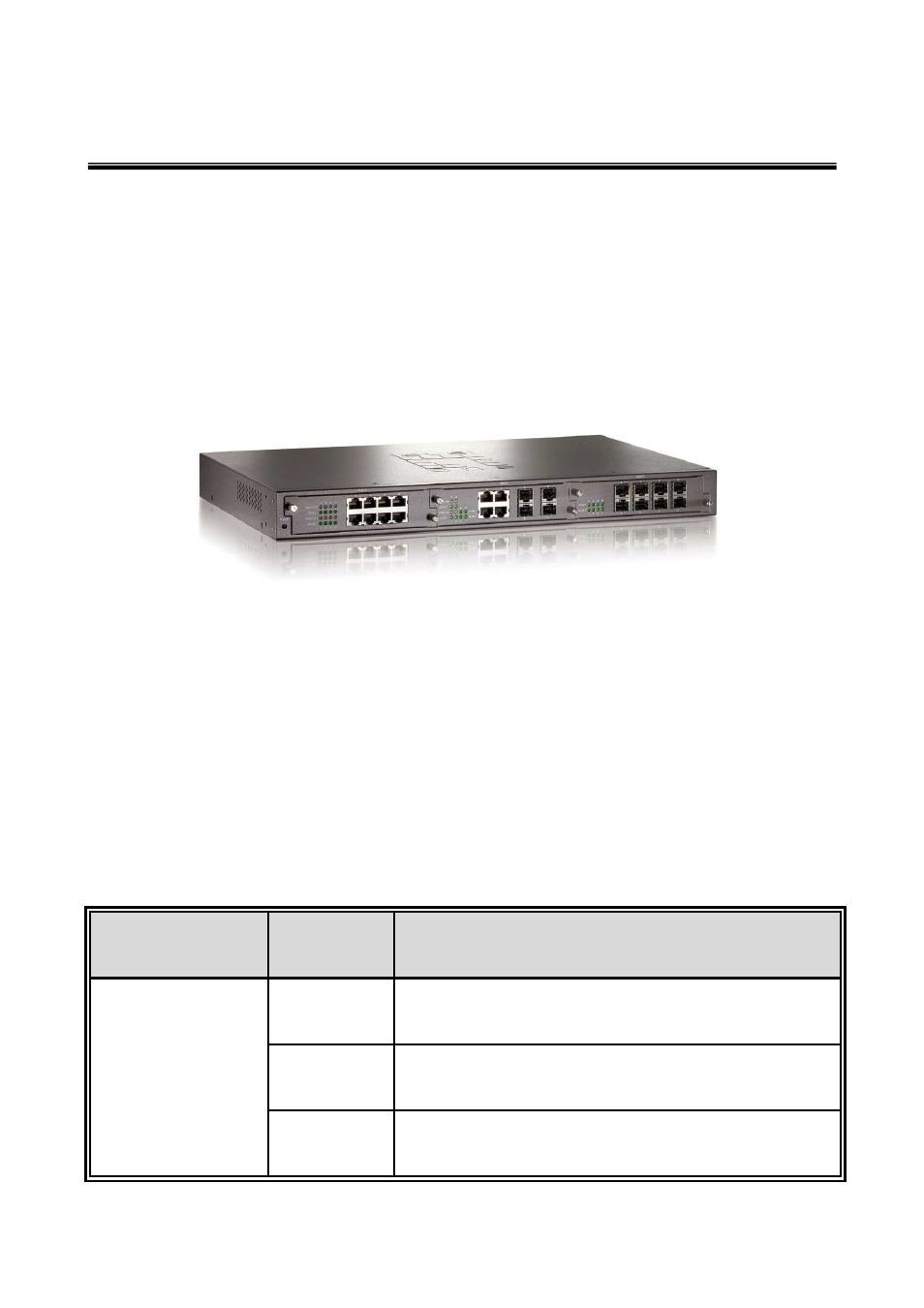

Chapter 2 Hardware Description
This section mainly describes the hardware of the MSL-3S79.
11B
2.1 Physical Dimension
The physical dimensions of the MSL-3S79 is 440mm(W) x 280mm(D) x 44mm(H)
12B
2.2 LED Indicators
The LED Indicators gives real-time information of systematic operation status. The
LED indicators are located in every module. The LED indicators will be different for
different module. The following table provides descriptions of LED status and their
meaning.
8-port 1000Base-T module
106B
LED
107B
Status
Meaning
1000/100
Green Link on 1000Mbps speed mode
Amber Link on 100Mbps speed mode
Off Link on 10Mbps speed mode or No device attached
