54 - User's Manual

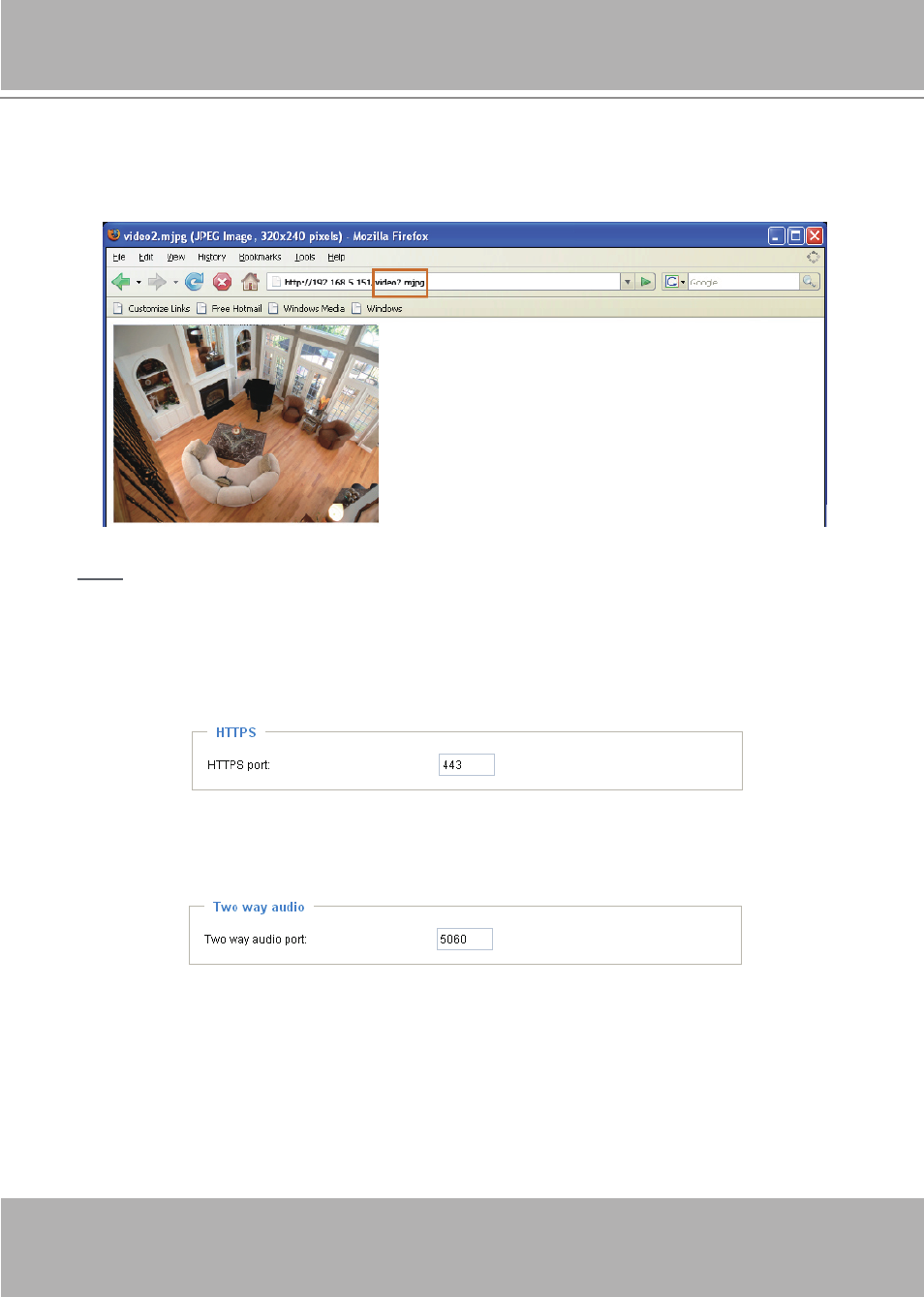

URL command -- http://:/
For example, when the Access name for stream 2 is set to video2.mjpg :
1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.
NOTE
► Microsoft ® Internet Explorer does not support server push technology; therefore, using http://
address>:/ will fail to access the video server.
HTTPS
By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025
and 65535.
Two way audio
By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number
between 1025 and 65535.
The video server supports two way audio communication so that operators can transmit and receive
audio simultaneously. By using the video server’s built-in or external microphone and an external
speaker, you can communicate with people around the video server.
