4 - User's Manual

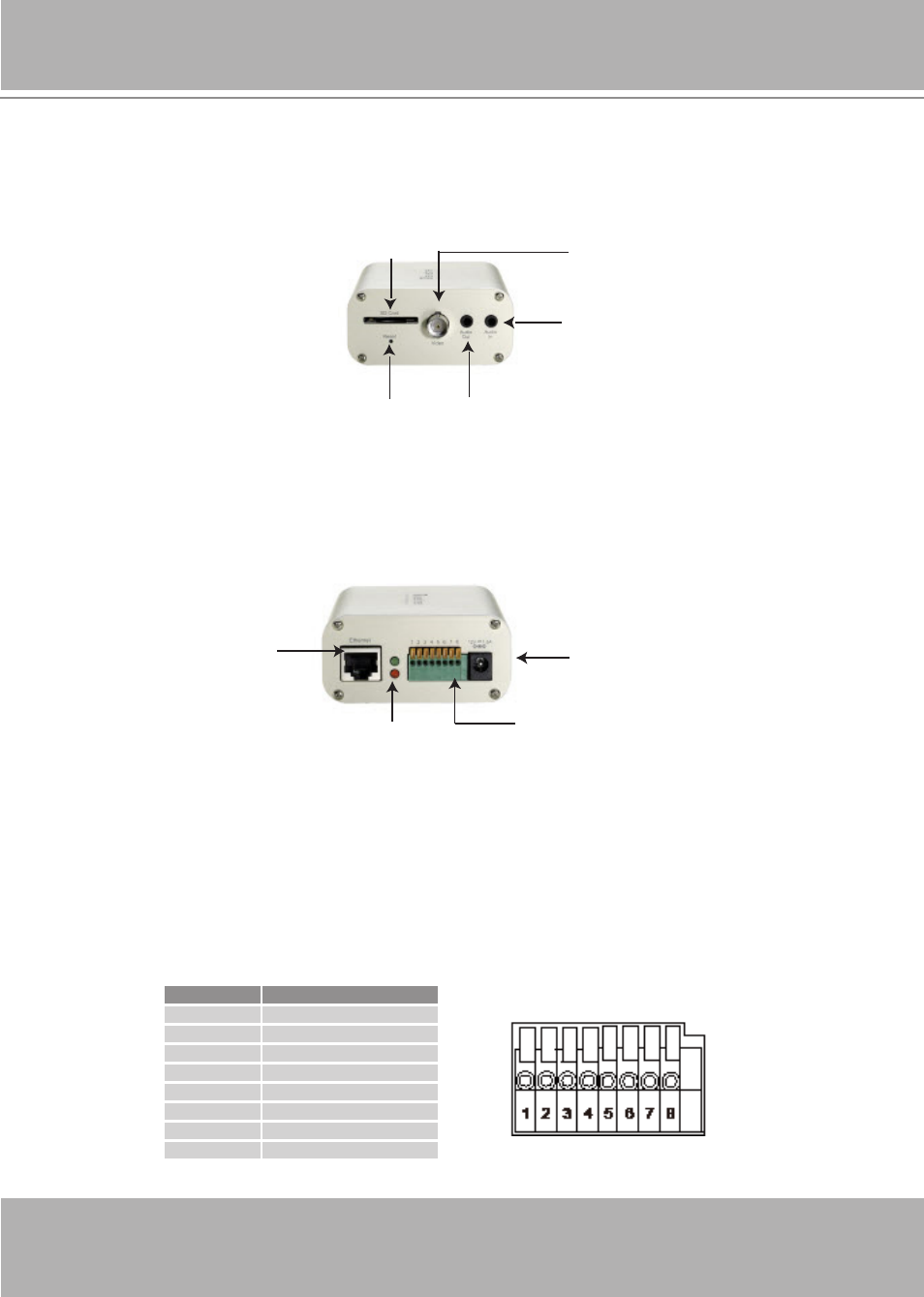

Physical Description
Front Panel
Back Panel
General I/O Terminal Block
This video server provides a general I/O terminal block which is used to connect external input /
output devices. The pin definitions are described below.
Pin Name
1 Power +12V
2 Digital output
3 Digital input
4 Ground
5 AC 24V input
6 AC 24V input
7 RS-485 +
8 RS-485 -
Power Cord Socket
Ethernet 10/100
RJ45 Socket
Status LEDs
General I/O Terminal Block
SD/SDHC Card Slot
BNC Video Input
RCA Audio Output
RCA Audio Input
Recessed Reset Button
