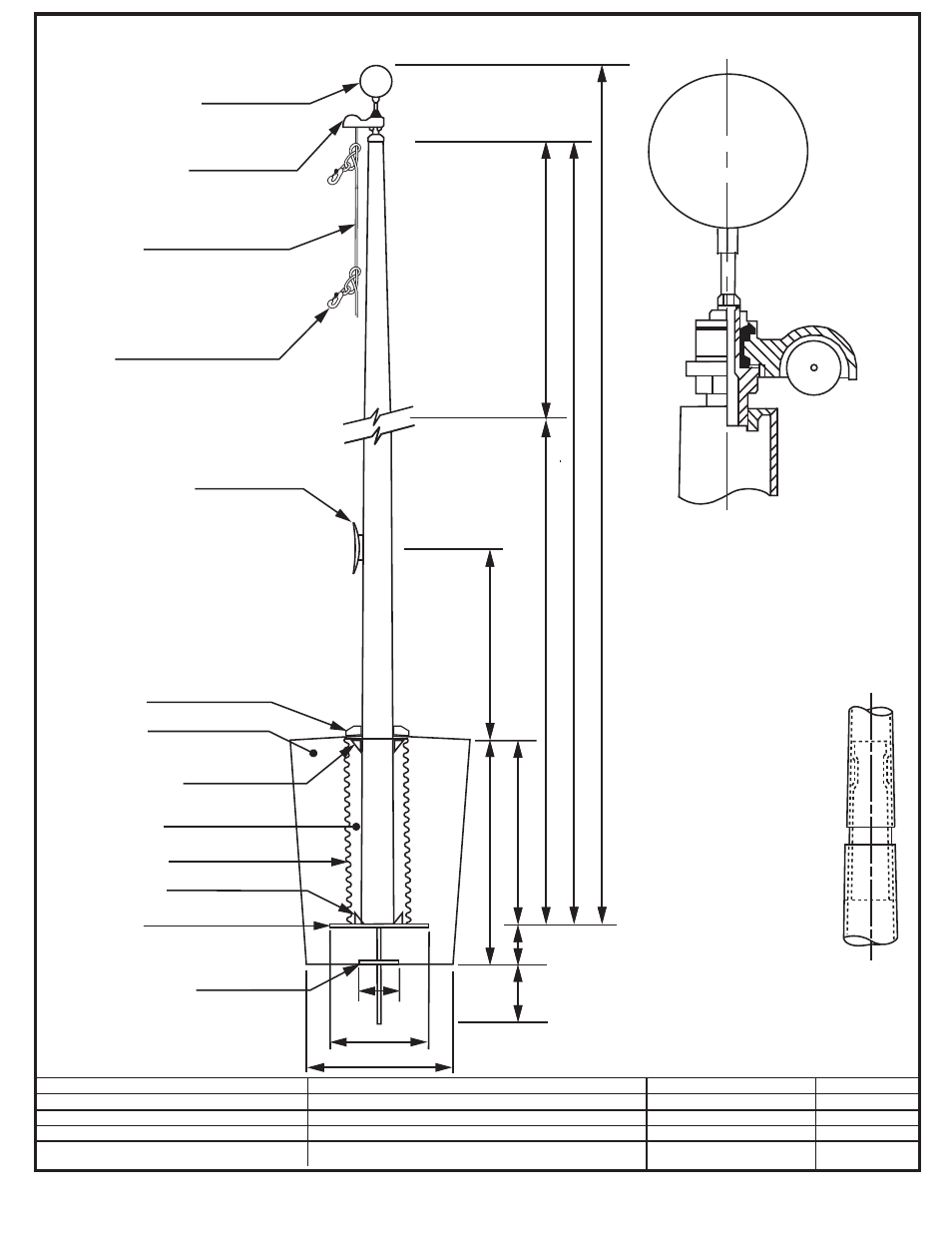

LA STEELCRAFT EC25 - Manual

Aluminum flash collar
3000 PSI concrete
Hardwood wedges
(supplied by others)
Dry sand tightly tamped
after aligning pole
Foundation sleeve -16 ga
hot dip galvanized steel
Steel centering wedges
1/4" Steel base plate
1/4" Steel support plate
welded to grounding spike
Tapered portion: 1
1'-0"
Straight portion: 16'-0"
Project:
Location:
Architect:
Contractor
Customer:
Date:
Revision:
Job:
Pole length: 27'-0"
Foundation: 3'-6"
Cleat height: 5'-0"
Model EC25
8"
16"
30"
12"
6"
Ground set tapered aluminum flagpole: ALLOY: 6063T6
Exposed height: 25'-0" Overall height: 28'-0"
Ship in 1 section Butt diameter: 5-1/2"
Top diameter: 3-1/2" Wall thickness: .188"
Finish: 100 grit polish
3'-0"
6" - 14 gauge spun aluminum ball
gold anodized.
Single sheave truck, cast aluminum
revolving, non fouling type
1 Set of halyard, #10 poly
1 - 9" Cast Aluminum Cleat
All shafts with overall
length of more than
38'-6" are shipped in
two sections.
Each section matched
marked for field assembly.
Exposed portion of jam
sleeve must be well
lubricated prior to
assembly.
1-1/2" maximum shop
gap allowed for field
fitting (ram for tight joint)
2 Bronze swival
snaps with covers
Overall length: 28'-0"
Truck Detail
Aluminum body
Stainless steel ball bearings
Aluminum sheave
Cast aluminum spindle
