FINISH GRADE
4'-0" BELOW
DATE: 7/1/09 DRAWN BY: AFS DO NOT SCALE DRAWING
STEELCRAFT PRODUCTS
P.O. Box 90365 - Pasadena, CA 91109
PHN 626-798-7401 FAX 626-798-1482
MODEL
DETAIL A
1
3
2
NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE

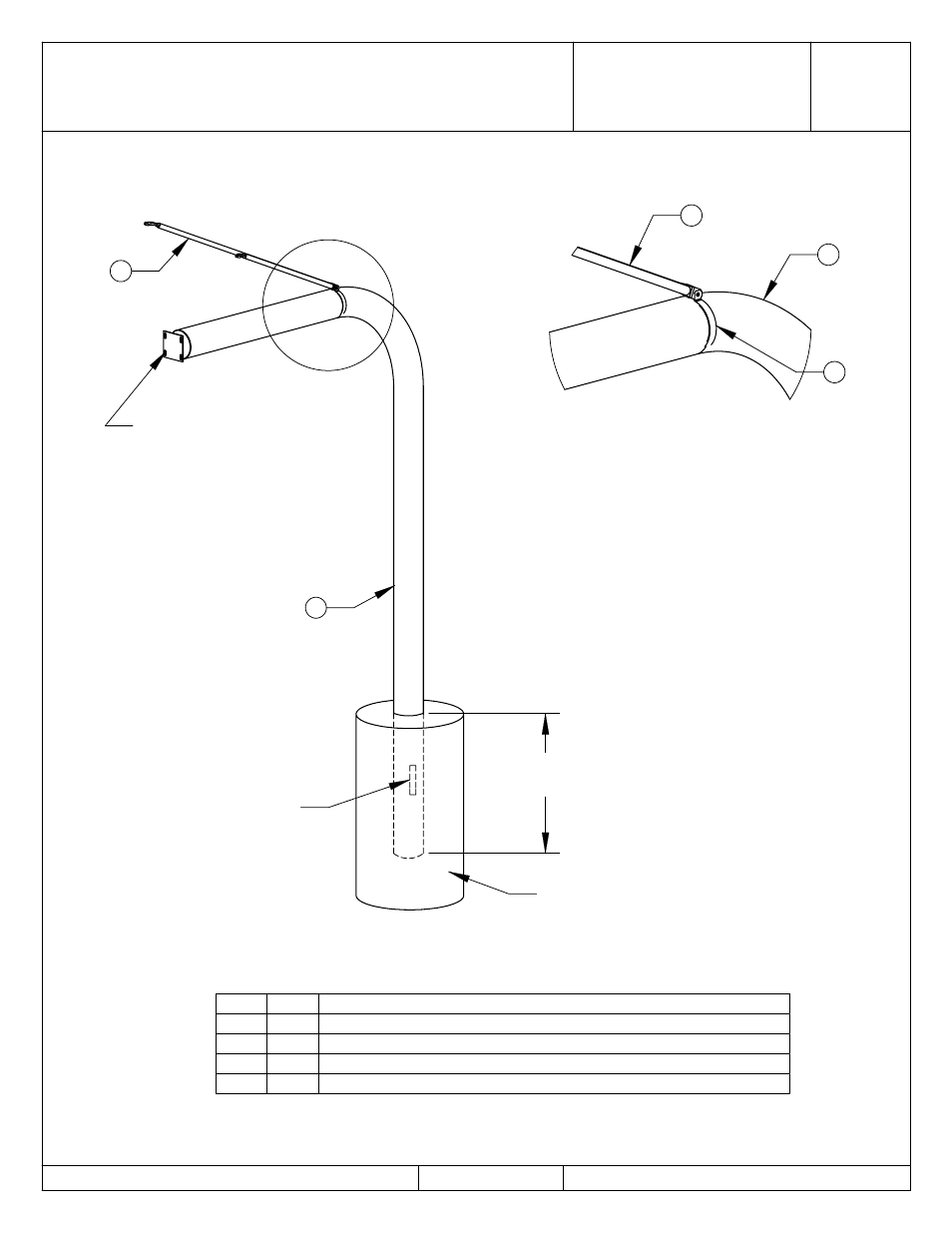

12C66PC
w/ FAN SHAPE EXT.
BASKETBALL POST
NOTE: NUMBER OF BRACES VARIES BY MODEL OF BACKBOARD
30" DIA. X 54" DEEP
CONC. FOOTING
(SUPPLIED BY OTHERS)
1
6" X 6" X 3/16" PLATE
WELDED TO PIPE
w/ HOLE PATTERN
FOR GOAL/BACKBOARD
3
1" OD PIPE WELDED TO SIDE
OF POST TO PREVENT ROTATION
WHILE IN-GROUND
A
ITEM QTY. DESCRIPTION
1 1 6-5/8" OD POWDER COATED PIPE @ 14'-0" w/ 6'-0" EXT.
2 1 BRACE BAND w/ 3/8" X 1-3/4" HEX BOLT w/ 2N, FW
3 2 6' X 1" OD P/C TUBE BRACING (FAN SHAPED BACKBOARD)
4 3 5/16" X 1-1/4" HEX BOLT w/ N, W & LW FOR BRACES
