Applications – Inter-M V2-2000 User Manual
Page 13
PROFESSIONAL POWER AMPLIFIER
11
V2-1000/2000/3000/4000
Applications
Applications
Connections
Inter-M products are wired according to professionally accepted wiring practices used throughout the world.

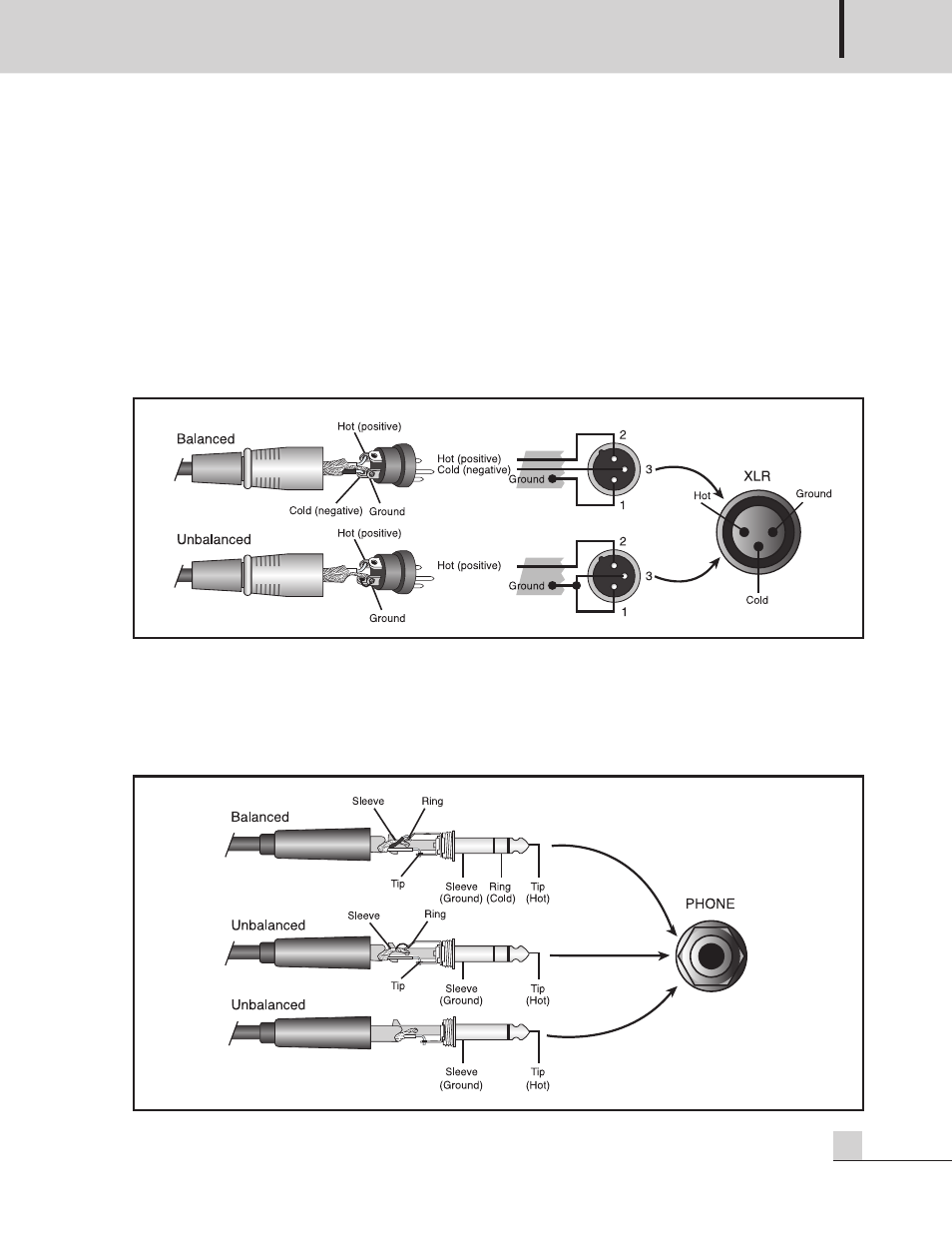

1. XLR INPUTS
Balanced XLR connectors are wired as described:
Pin #1 Shield
Pin #2 Positive
Pin #3 Negative
2. TRS INPUT
Balanced 1/4
″TRS connectors are wired as described:
Tip is Positive
Ring is Negative
Sleeve is Shield
XLR MALE
PHONE JACK
