9 PAM-510/520
ATT. ZONE AMPLIFIER
Connecting Speakers Connecting Speakers
Before connecting speakers, disconnect the AC power cable. Note the proper connecting terminals as shown
below. Make certain that the total impedance is not less than the rated impedance indicated.
- CONNECTING HIGH-VOLTAGE DISTRIBUTED SPEAKER SYSTEMS
※NOTE: Be sure that total impedance is not less than rated impedance. (See upper chart.)
※WARNING: Extreme care must be exercised when connecting high-impedance systems, as potentially
hazardous voltages may be present at these terminals.
Do not install this equipment in a confined space with less-than-adequate ventilation.
Total rated input of up to 25W (PAM-510) or 50W (PAM-520)

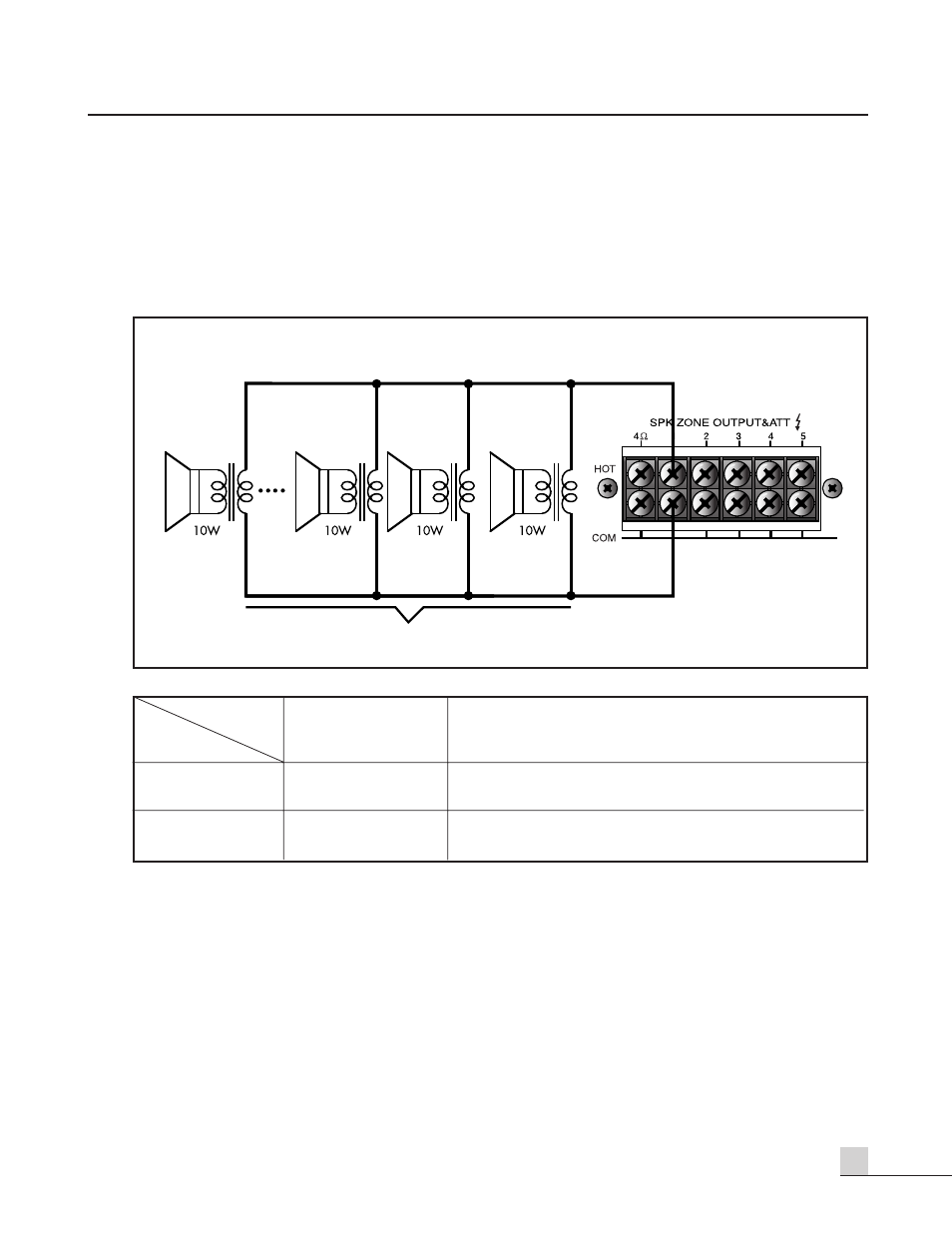

When connecting a high-impedance(70V/100V) speaker system in parallel, you can connect speakers
with a total rated input of up to 25W (PAM-510) or 50W (PAM-520).
Output
4 Ω SPK 1~5
Terminal
(LOW IMPEDANCE) (HIGH IMPEDANCE)
Model Name
PAM-510 22V/4 Ω (120W)
EC & Associated : 100V/400 Ω (25W MAX)
USA/CANADA & Associated : 70V/196 Ω (25W MAX)
PAM-520 31V/4 Ω (240W)
EC & Associated :100V/200 Ω (50W MAX)
USA/CANADA & Associated : 70V/98 Ω (50W MAX)
