Receiver front panel – Inter-M ITX-108 User Manual
Page 8

2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
6
FTA-108S/ITX-108/ITX-102, FRA-108S/IRX-108/IRX-102

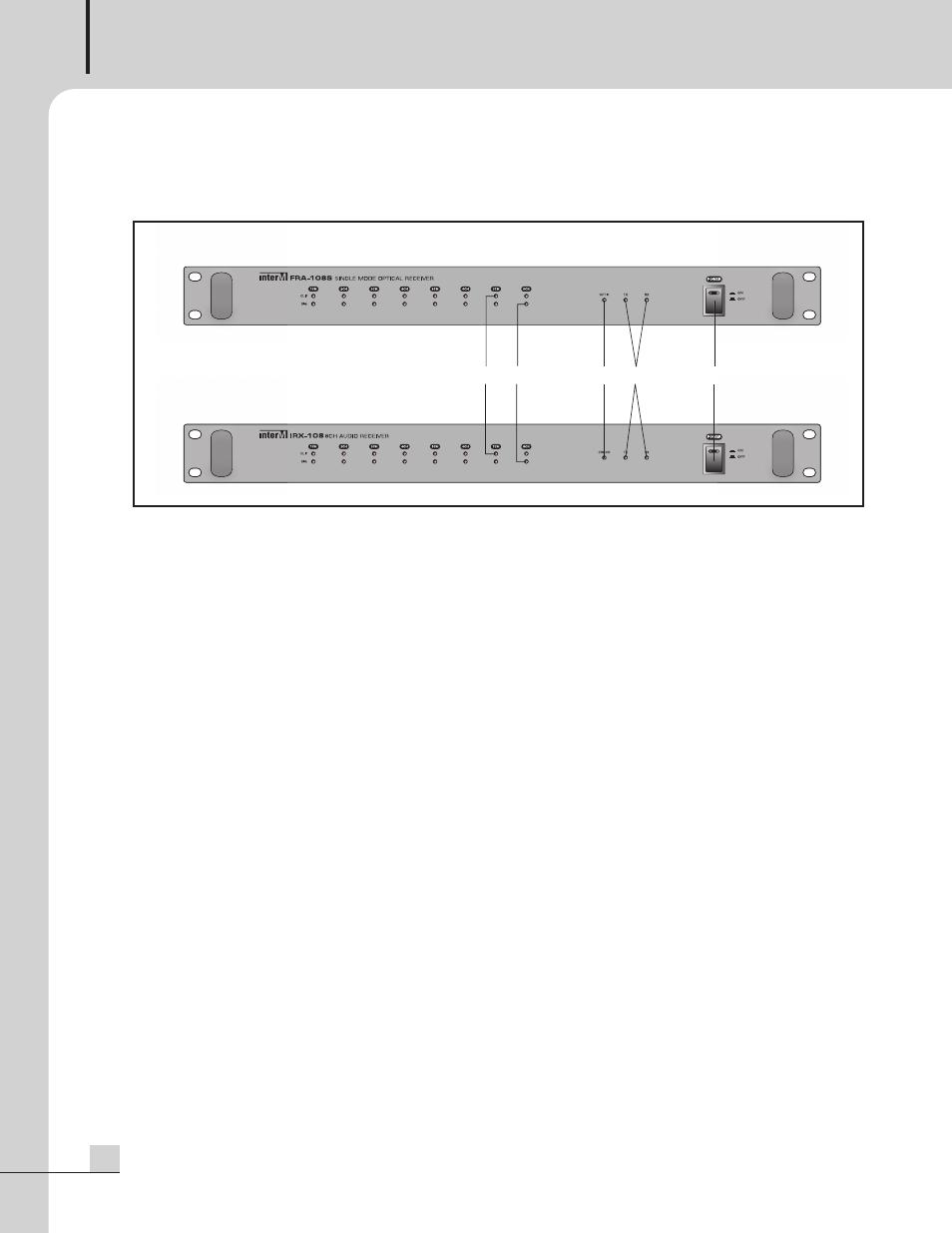

Receiver Front Panel
Receiver Front Panel
(FRA-108S/IRX-108/IRX-102)
1. OUTPUT SIGNAL CLIP DISPLAY
Displays the clip status of input signal sending to each channel and red light will be on before signal clip.
2. OUTPUT SIGNAL DETECTING DISPLAY
Displays the output signal levels sending to each channel and green light will be on if -30dBV or higher is
output.
3. OPTICAL CABLE CONNECTION STATUS/ERROR INDICATOR
FTA-108S : if optical cable is connected normally, red light will be on.
ITX-108(102) : red light will be on if communication error occurs on the digital audio signal.
4. DATA COMMUNICATION STATUS INDICATOR
If communication module (CR-100M) is installed, it displays the TX/RX data communication status of RS-
232C/RS-422.
5. POWER SWITCH AND INDICATOR
If this switch is pushed, power indicator will be on and equipment will be started.
2
1
3
4
5
FRA-108S
IRX-108
