VIDEO AUDIO MATRIX SWITCHER
6
HDMS-0808

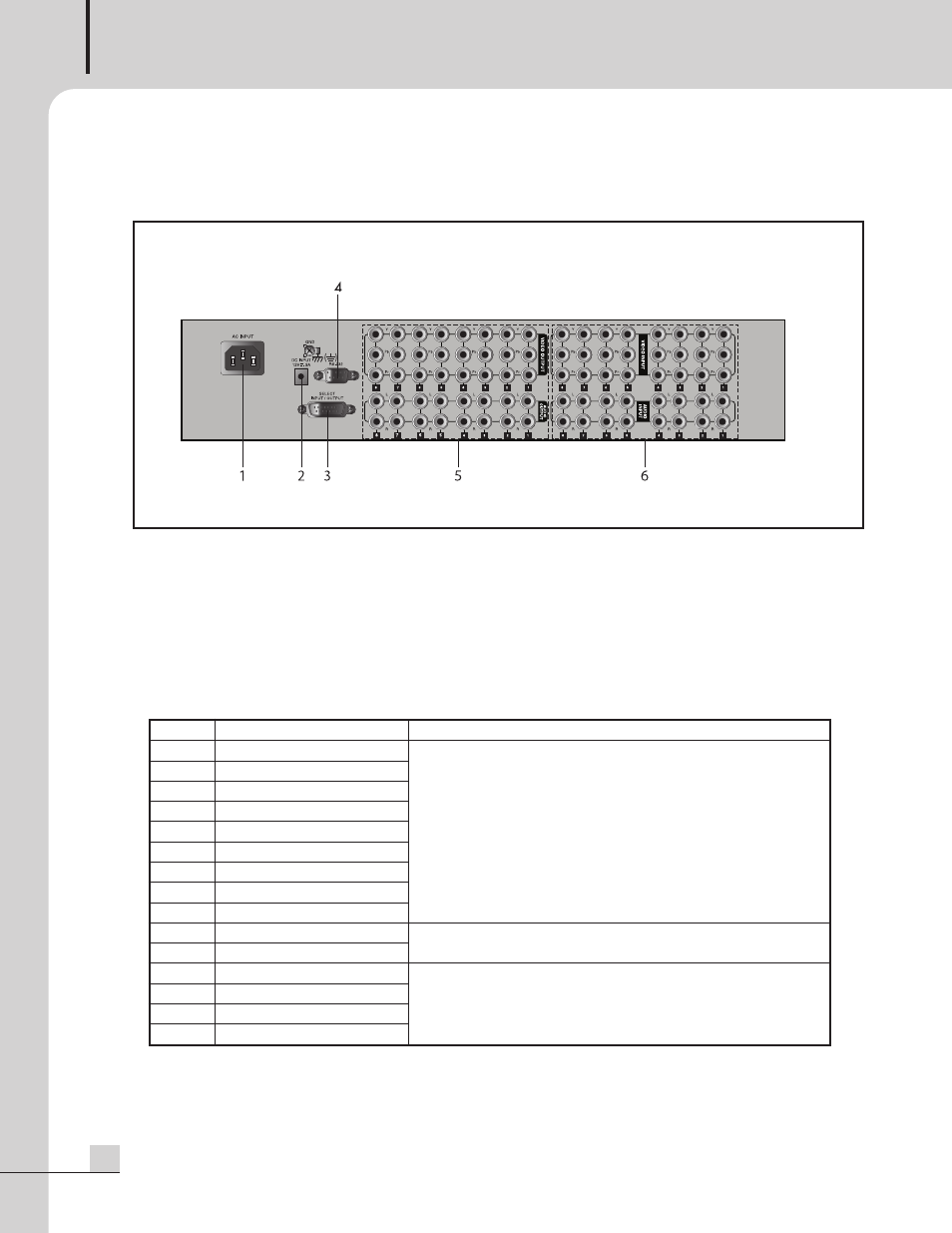

Rear Panel
Rear Panel
1. AC INPUT
It is AC code input terminal used if user installs the DC adapter in the device.
2. DC INPUT
It is DC 12V/ 3A power input terminal.
3. SELECT IN/OUT JACK
It is used when user wants to implement the parallel motion or remote motion by connecting up to 2 devices.
PIN NO.
Signal Name
Function
1
CONTROL IN/OUT 1
2
CONTROL IN/OUT 2
3
CONTROL IN/OUT 3
4
CONTROL IN/OUT 4
5
CONTROL IN/OUT 5
Control signal line
6
CONTROL IN/OUT 6
7
CONTROL IN/OUT 7
8
CONTROL IN/OUT 8
9
NC
10
UART1 TX
11
UART1 RX
Serial communication
12
GND
13
GND
14
GND
GND
15
GND
