EMERGENCY COMBINATION SYSTEM
6
ECS-6216P/S

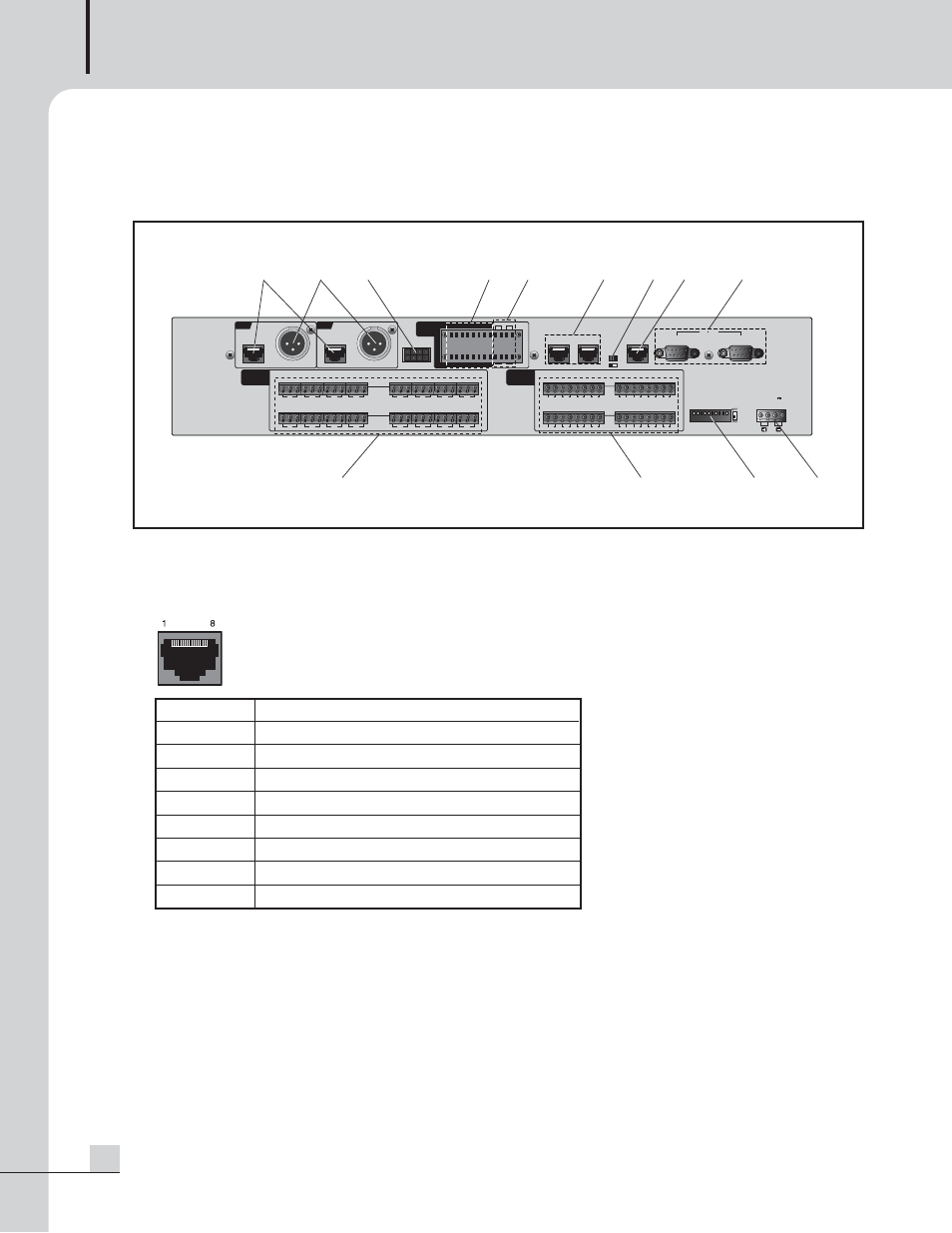

Rear Panel
Rear Panel
1. RM 1,2 COMMUNICATION TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that connects the RM-6024(REMOTE MIC) or RME-6108(RM EXTENDER).
2. RM1 AND RM2 AUDIO OUTPUT TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that outputs the voice signals from remote MIC input terminal (RM1, RM2).
3. EMERGENCY PANEL (EP) CONNECTING TERMINAL (EXCLUSIVE FOR ECS-6216P)
Connects to the emergency panel (EP) manufactured by Inter-M to control the priority.
(EM/FIRE/TIMER/RM1/RM2).
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
LINK IN
LINK OUT
UPGRADE
SOURCE 1
RS 232
SOURCE 2
EMG PANEL
/
ADDRESS
1 2 3 4 5 6 7 8 9 10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TERM.
LOAD
OPEN
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
FIRE
SENSOR
SPEAKER
OUTPUT
AMP
INPUT
H
E
H
C
E
C
E
H
C
E
H
C
E
E
H
C
E
H
C
E
H
C
H
C
H
C
H
C
H
C
H
C
H
C
H
C
H
C
H
C
PD
TIMER
EXT
COM
DC 24V
1
2
3
10
11
12
13
4
5
6
7
8
9
PIN NO.
Functions
1
RS-422 Data - RX+
2
RS-422 Data - RX-
3
RS-422 Data - TX-
4
Live Data Input
5
GND
6
RS-422 Data - TX+
7
Balanced Audio Output - HOT
8
Balanced Audio Output - COLD
