ECS-6216P/S
Equipment Setting and Checking
Equipment Setting and Checking

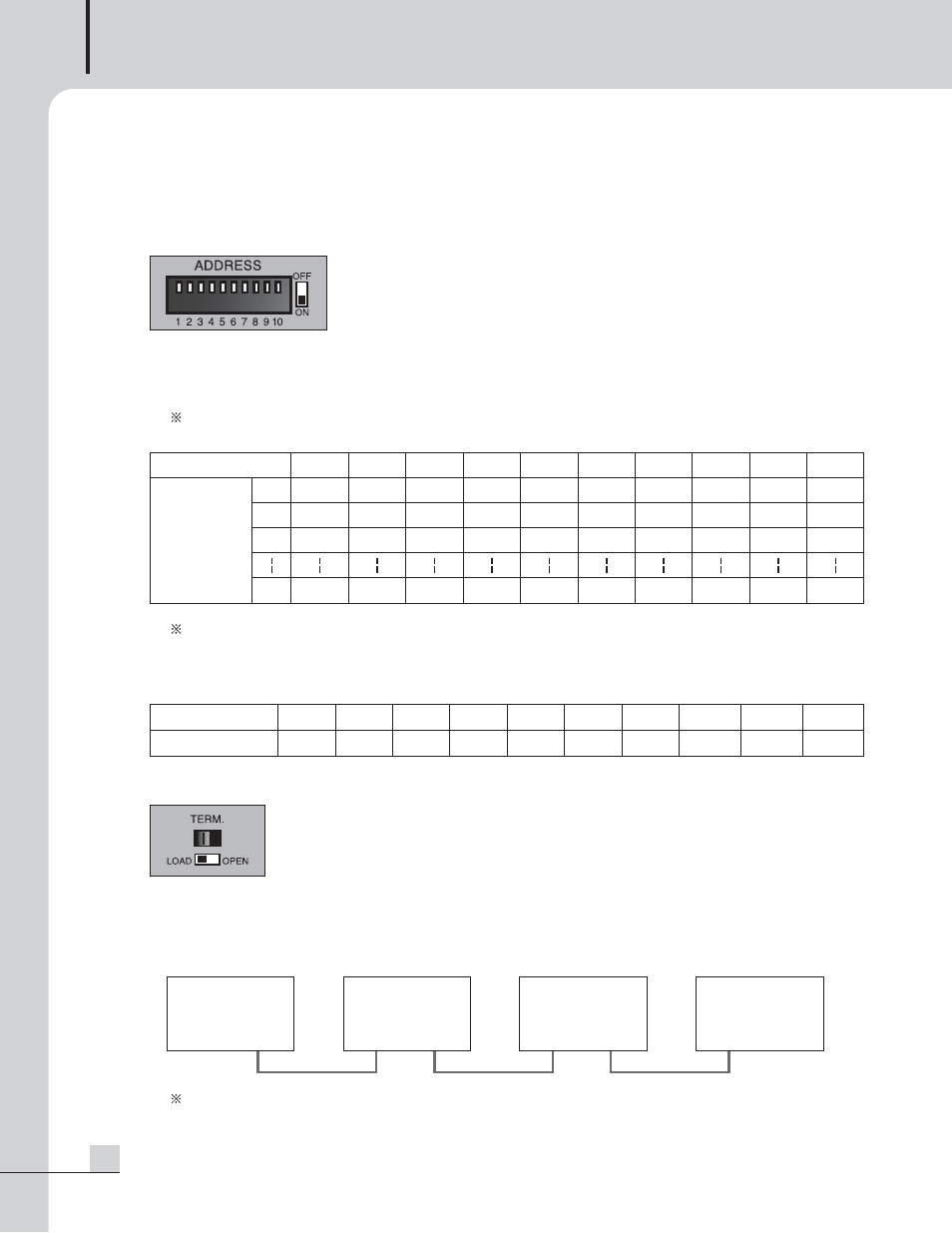

1. Address Setting
1) Entire system uses only one ECS-6216P; if expansion is needed, additional ECS-6216S units must be
added.
2) The equipment numbers for each wiring condition is set by the rear panel DIP switch.
Caution: ECS-6216P should be setting as No. 1.
3) The table below shows the setting methods; the ON switch setting/number will be the equipment number.
Caution: If an equipment number is not set, all zone indicator LEDs will be blink. If the number is
already in-use, communication will be impossible. In case of above cases, please check the
equipment number set-up status.
4) Zone allocation is as follows.
.
2. TERMINATION Switch (LOAD/OPEN) Setting
1) For the system linked by using RS-485 communication interface, it is necessary to set the termination
switch (LOAD/OPEN) on the rear panel to stabilize data transfer.
2) Set the termination switch to LOAD only for the first and last-numbered equipment units. All others must be
set to OPEN.
Caution: Communication error may occur if setting is performed incorrectly.
DIP Switch
1
2
3
4
5
6
7
8
9
10
1
2
Equipment
3
No.
10
ECS-
6216P
ECS-
6216S
ECS-
6216S
ECS-
6216S
Equipment No.
1
2
3
4
5
6
7
8
9
10
ZONE Allocation
1~16
17~32 33~48 49~64 65~80 81~96 97~112 113~128 129~144 145~160
Equipment 1
S/W: LOAD
IN
OUT
Equipment 2
S/W: OPEN
IN
OUT
Equipment 3
S/W: OPEN
IN
OUT
Equipment N
S/W: LOAD
IN
OUT
