NOTE: For installation that incorporates Standing Iron Radiation and systems manual vents high points. Follow the Section

5-B procedure, then starting with the nearest manual air vent, open vent until water flows out, then close vent. Repeat

procedure, working your way toward furthest air vent. It may be necessary to install basket strainer in an older hydronic

system where larger amounts of sediment may be present. Annual cleaning of the strainer may be necessary.

PART 6

BOILER START UP

6-A. COMMON VENT TEST

At the time of removal of an existing boiler, the following steps shall be followed with each appliance remaining connected to

the common venting system placed in operation, while the other appliances remaining connected to the common venting

system are not in operation.

1. Seal any unused openings in the common venting system.

2. Visually inspect the venting system for proper size and horizontal pitch to determine there is no blockage or restriction,

leakage, corrosion and other deficiencies which could cause an unsafe condition.

3. If practical, close all building doors, windows and all doors between the space in which the appliances remain

connected to the common venting system are located and other spaces of the building. Turn on clothes dryers and any

appliances not connected to the common venting system. Turn on any exhaust fans, such as range hoods and bathroom

exhausts, at maximum speed. Do not operate a summer exhaust fan. Close fireplace dampers.

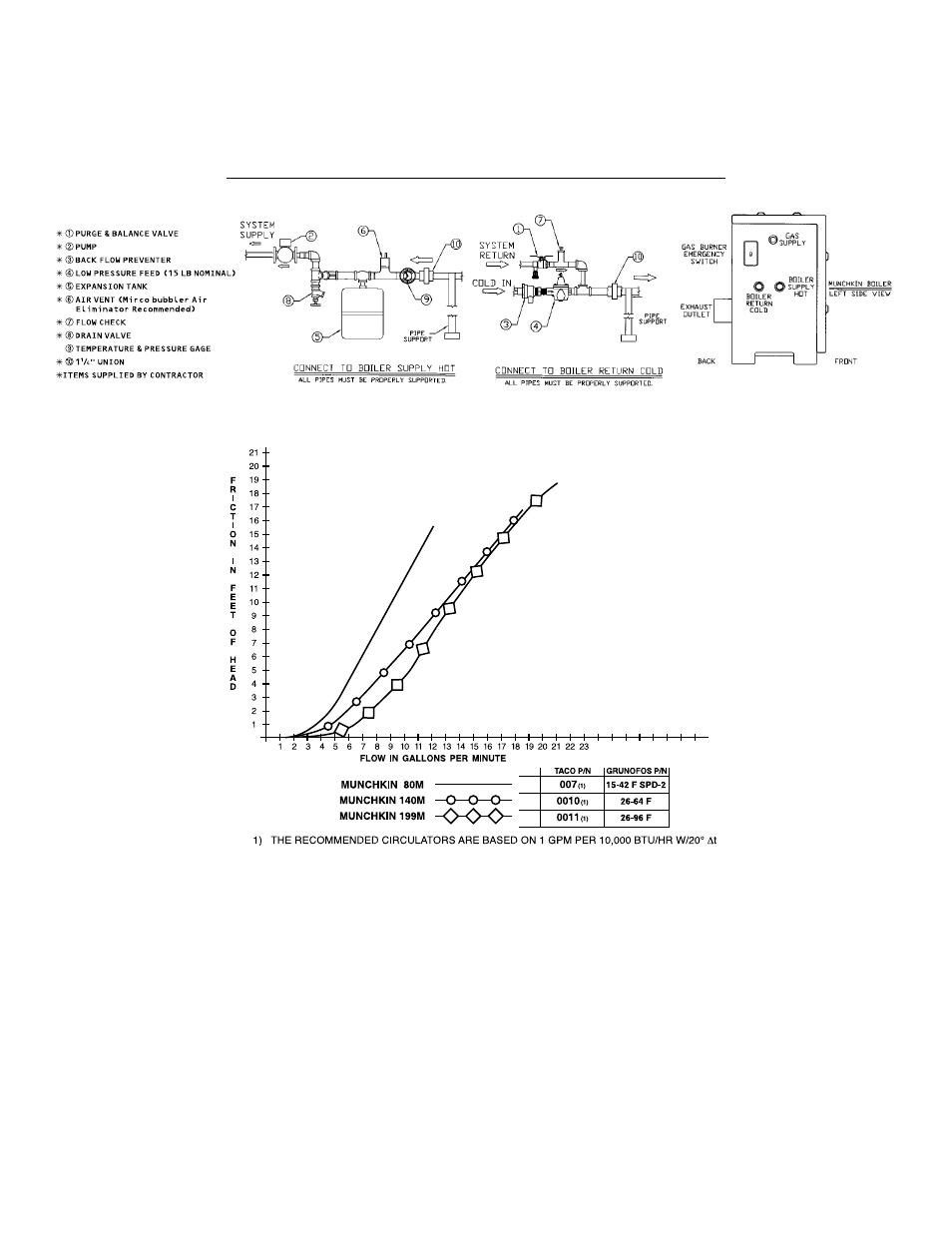

SUGGESTED HYDRONIC PIPING FOR MUNCHKIN BOILER

FIGURE 7A

FIGURE 7B

9

NOTE: BOILER CONNECTIONS

ARE 1

1

/

4

" NPT
