FIRElink-25 – Installation Manual

© 2010 Hochiki Europe (UK) Ltd

9-5-0-344/ISS4/OCT10

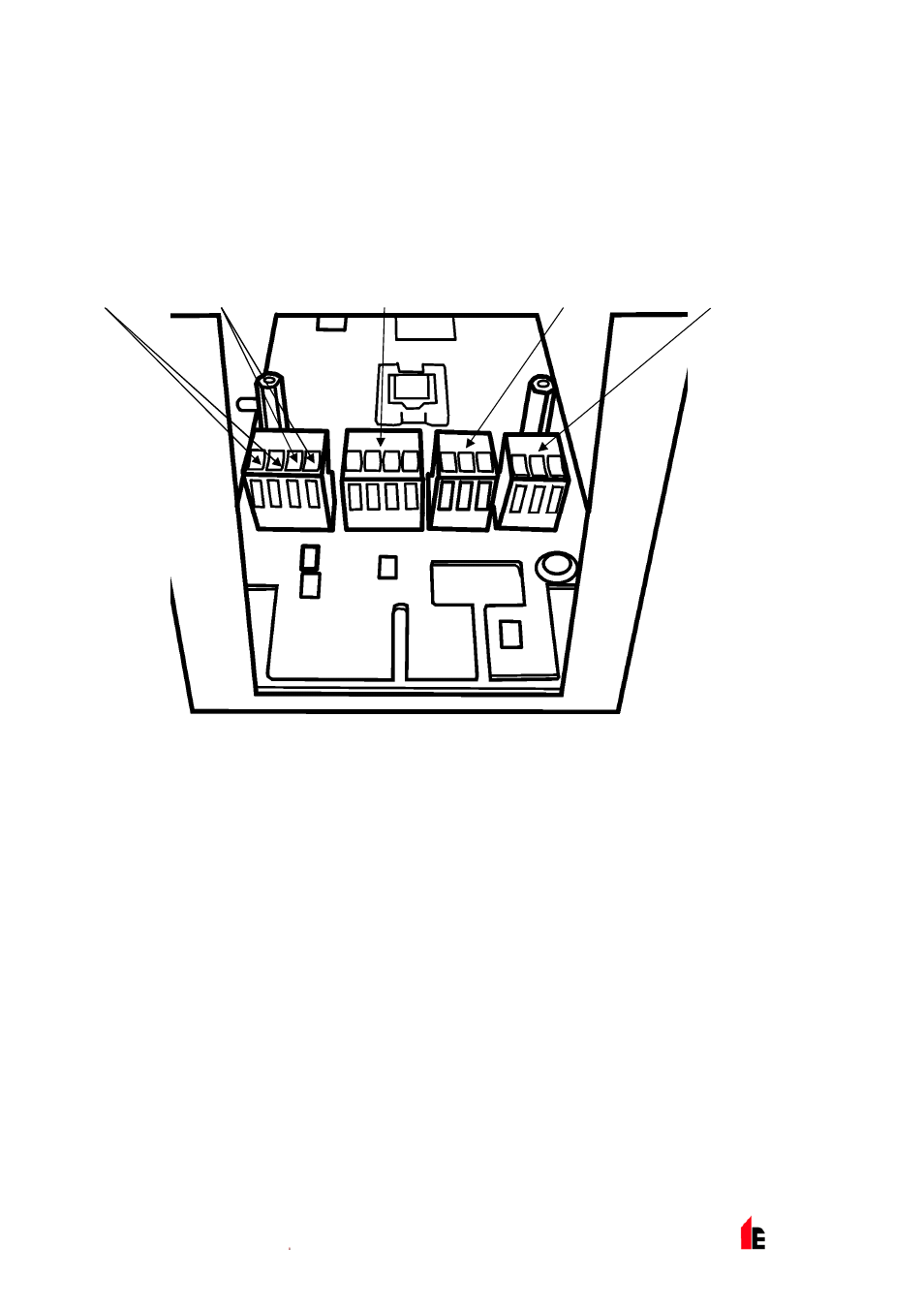

1.3 Detector Terminal Block Connections

Normally
closed FAULT
relay contacts

Normally open
FIRE relay
contacts

FIRElink-APIC
addressable bus
connections for use in
conjunction with
interface card (see
sections 4.1.4 and 5.3)

RS485 / SenseNET
connections (see
sections 4.1.4and 5.2)

Power supply
connections (see
section 4.1.3)
