Wiring

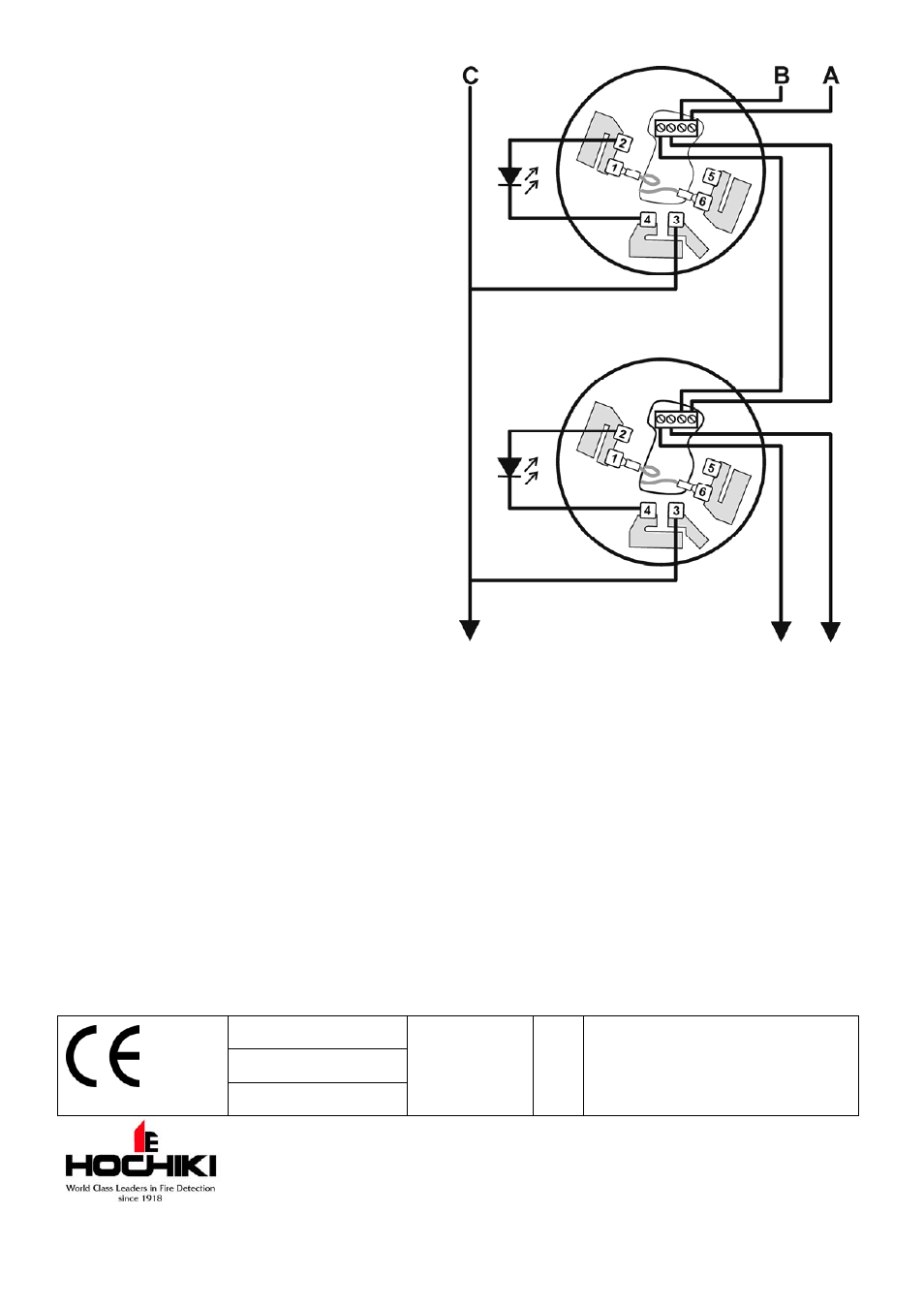

The wiring of the YBN-R/3(SCI) short circuit isolator
base should be made as shown right:
A: Loop (+)
B: Loop (-)
C: Cable Screen
Protocol specified in TI/006
YBN-R/3(SCI)
0832-CPD-2025 12 EN54-17 Short Circuit Isolators YBN-R/3(WHT)-SCI
YBN-R/3(HFP)-SCI
